OPEN SOURCE / APACHE-2.0PRIVATE PAYMENT OPERATIONS

Private payments in.
Spending keys stay out.

PPOps PayIn: signed requests, a clear checkout and view-only reconciliation. Run it on your own infrastructure.

0.1.0-beta.3 · releaseSource availability & snapshot →

Try the local demo Read the integration guide →

WHAT IT DOES

Create a private payment request. Let the payer use their own wallet. Know when your backend can accept the payment.

Run the daemon on your infrastructure. Give it a merchant viewing key, never a spending key. Your application creates a payment request; a separate payer sends the funds; PPOps reconciles the received payment and sends an authenticated webhook.

Interface: HTTP API + HMAC webhooks
Current profile: Arbitrum One / native USDC
Authority: View-only. Cannot send or refund funds.
You provide: Hosting, RPC/PPOI services and a webhook receiver.

It is not a hosted processor, consumer wallet or payment guarantee. Read the operating limits.

TRY IT LOCALLY

Start with the beta.3 local demo. It runs checkout, reconciliation and webhook delivery on your machine using synthetic settlements. No wallet, RPC or funds are needed.

Requires Node.js 22+ and PPOps v0.1.0-beta.3. These commands do not apply to the earlier beta.1 tag.

# From the beta.3 PPOps source directory
npm ci
npm run demo

Open the local URL printed by the command. Create an order, open its payment request and choose Simulate payment. Return to the shop to see the order fulfilled through its authenticated webhook. Complete demo walkthrough →

Run a real merchant receiver — initialize, doctor --offline, preflight, serve, status.
Integrate your backend — HTTP or the TypeScript client, then verify and deduplicate webhooks.
Run the merchant example — an executable shop, backed by your daemon.

PAYIN / FROM REQUEST TO ACCEPTANCE

The checkout puts the amount and payment status first. It verifies the signed request locally, keeps protocol details under Advanced details and refreshes while the page is open.

Read the request: Amount, expiry and signature result. A valid signature is not an endorsement of merchant identity.
Use your payer: A locally generated QR, request link or downloaded file. The reference payer checks whether private balance is ready.
Review and authorize: Your separate wallet checks the merchant and payment terms, obtains the fee and authorizes spending.
Follow acceptance: Payment detected → checking → complete. Partial, late and reversed payments remain visible for review.

Pay privately opens the request handoff; it does not connect a wallet. General consumer-wallet QR support, automatic funding and readiness time estimates are not available.

No trackers, external checkout scripts or remote QR service. The merchant keeps checking even if the payer closes the page.

Read the PayIn guide → · Payment Request v1 · Reference payer readiness

PayIn is the current product. Payout and refunds remain roadmap only, with policy, approval and spending authority kept outside the view-only daemon.

PAYMENT FLOW

Your backend creates an intent. Persist the order, amount, expiry and idempotency key; hand the checkout URL to the payer.
The payer makes a private transfer. Spending material stays on the payer's host, outside PPOps.
PPOps checks the settlement. It must be finalized, Spendable under PPOI and matched to the intent before its value is credited.
Your backend decides fulfillment. Verify the webhook, deduplicate durably and apply your partial, late-payment and reversion policy.

credited settlement = FINALIZED + SPENDABLE + MATCHED
observed ≠ paid

Payment states and events · HTTP API · OpenAPI JSON

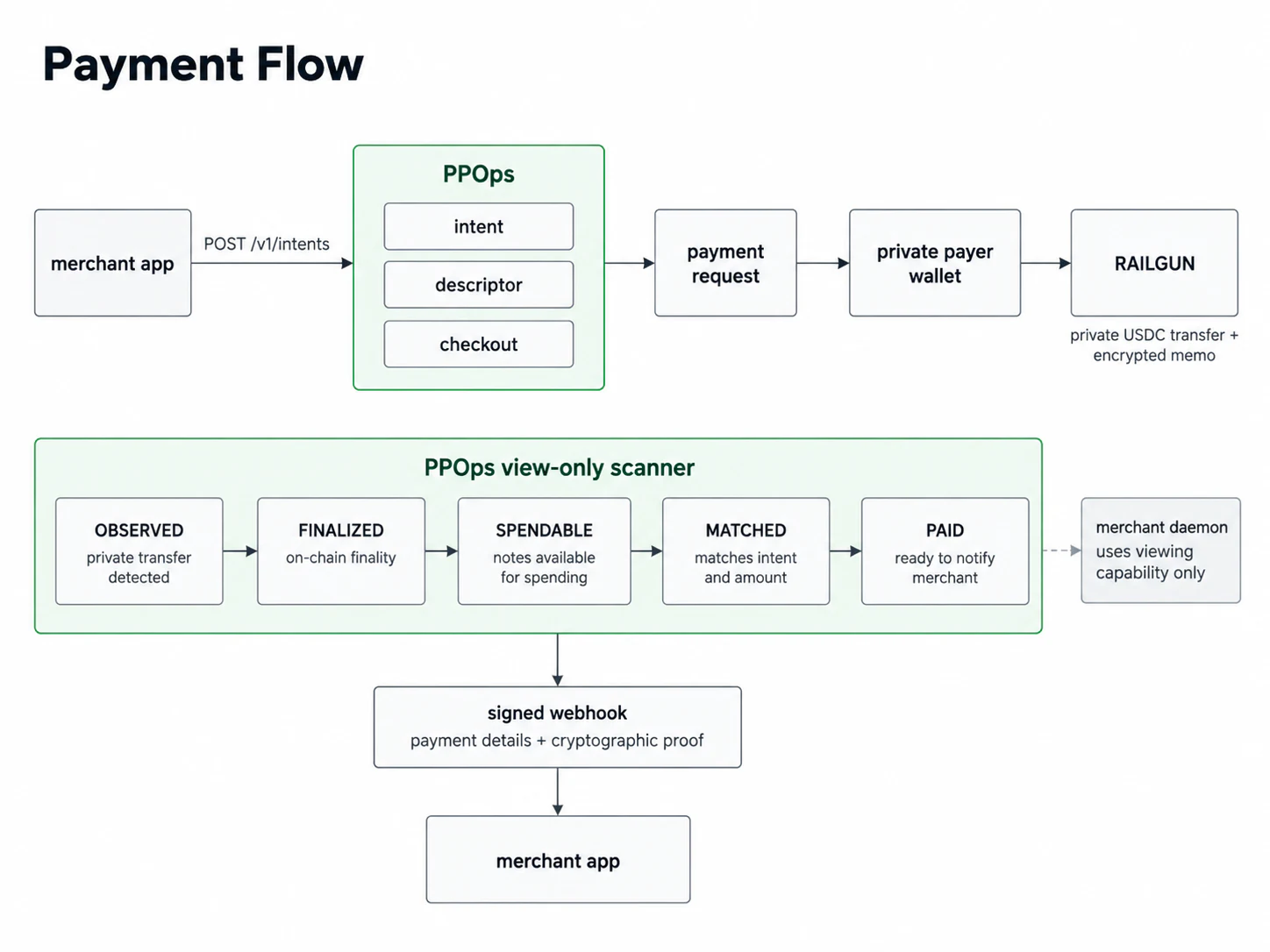

A merchant application posts an intent to PPOps, which produces a signed descriptor and checkout request for a private payer. The payer transfers native USDC through RAILGUN. PPOps observes the receiver note with viewing capability, then applies finality, PPOI spendability and strict intent matching before notifying the merchant. — FIG. 01 / Payment flowHigh-level request, private transfer and reconciliation path. The written protocol description is canonical.Reading note: The outbound event is an HMAC-authenticated payment.confirmed webhook. PPOps does not place a zero-knowledge payment proof in that webhook.Open full resolution →

EVIDENCE

Published evidence: v0.1.0-beta.1. Historical controlled-pilot reports retain their original scope. The current release has its own build, test, SBOM and container records; no new mainnet or external usability pilot is claimed.

Check	Scope	Result	Artifact
Release verification	Public tag CI completed successfully	PASS	open
Primitive gate	View-only discovery, no-spend isolation, restart exact-once	PASS	open
Privacy conformance	Eleven redaction, isolation and memo-recovery checks	PASS	open
Direct payment / Gate A	Controlled Arbitrum One self-pilot	PASS	open
Broadcaster / Gate B	Waku Broadcaster path; controlled self-pilot	PASS	open
Mainnet reconciliation	FINALIZED + SPENDABLE + MATCHED → PAID	PASS	open
Restart / restore	Stable state, isolated restore, receiver deduplication	PASS	open
External operator pilot	Community and external operator trial track	OPEN	open

Inspect artifacts and their scope →

KNOWN LIMITATIONS

v0.1 supports RAILGUN only.
The current operational profile is Arbitrum One and native USDC.
The payer needs enough private native USDC already marked Spendable, including the Broadcaster fee.
A fresh shield may remain ShieldPending while PPOI matures.
The bundled payer is reference and verification tooling, requiring appropriate technical knowledge to run.
The QR hands off a signed request URL; automatic consumer-wallet connections and QR compatibility are not validated.
Payout, refunds and automatic balance preparation are not implemented.

Privacy, dependency and payment boundaries →

EXTERNAL PILOT OPEN

The external operator track enables third-party merchants and payers to test the pipeline on their own infrastructure using reproducible procedures.

Operators can validate merchant setup, private transfers, restart/restore flows, and webhook deduplication while retaining full control over secrets and infrastructure.

Read the external pilot procedure →

For a non-financial evaluation, check the usability testing protocol.

ARCHITECTURE

The merchant application owns orders and fulfillment. PPOps owns intents, signed descriptors, view-only scanning, reconciliation and its durable outbox. The payer owns spending authority.

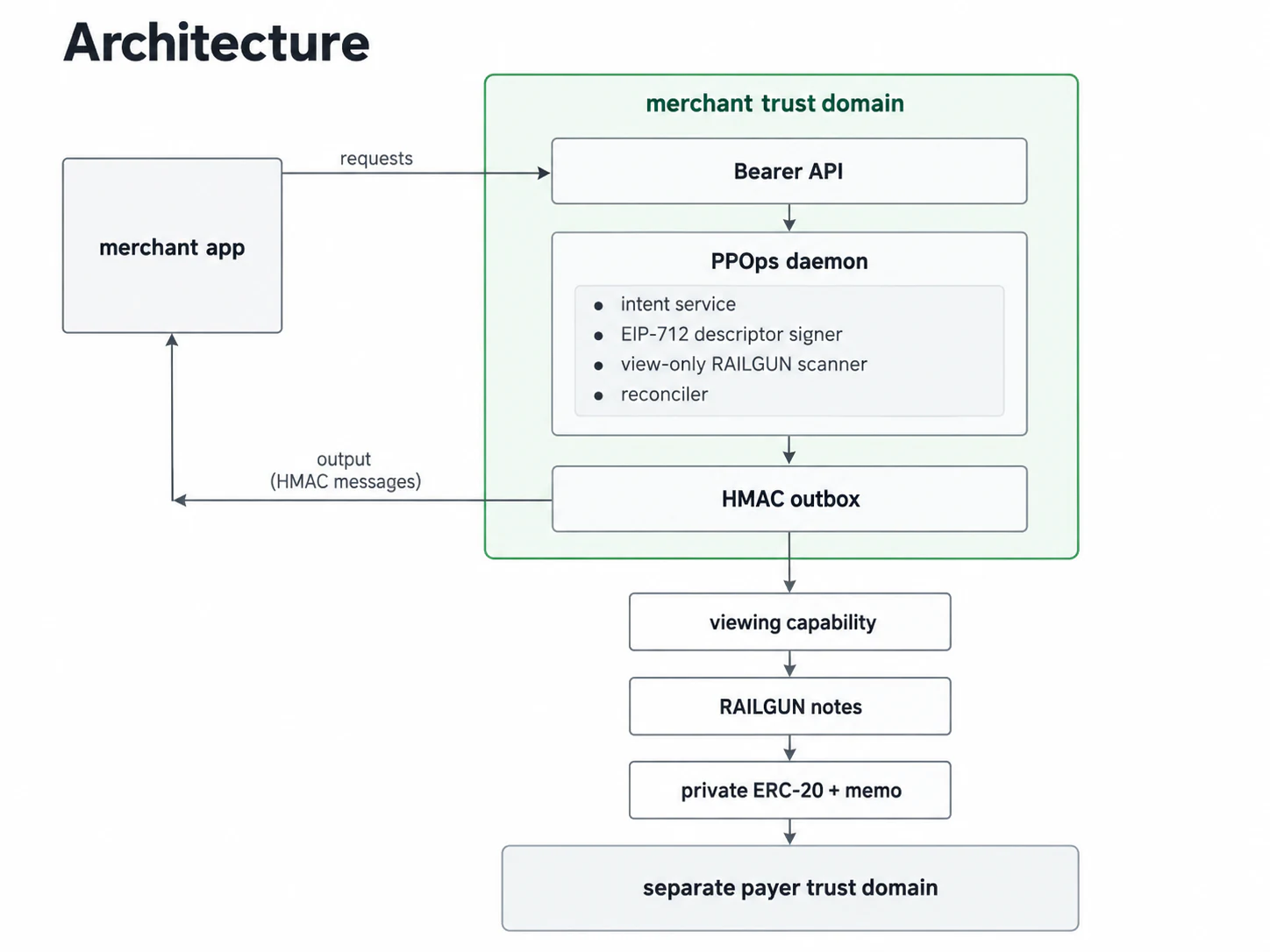

PPOps system context: a merchant application calls the Bearer API inside the merchant trust domain; the PPOps daemon contains intent, descriptor-signing, view-only scanning and reconciliation services; its HMAC outbox returns events to the merchant; a separate payer sends a private RAILGUN transfer with a memo. — FIG. 02 / System contextThe merchant application, daemon and outbox stay in the merchant trust domain. Spending authority remains with the separate payer.Reading note: The vertical connector represents the daemon scanner reading receiver notes with viewing capability. The HMAC outbox only delivers merchant events.Open full resolution →

Read the architecture → · Operator security

DEPLOYMENT

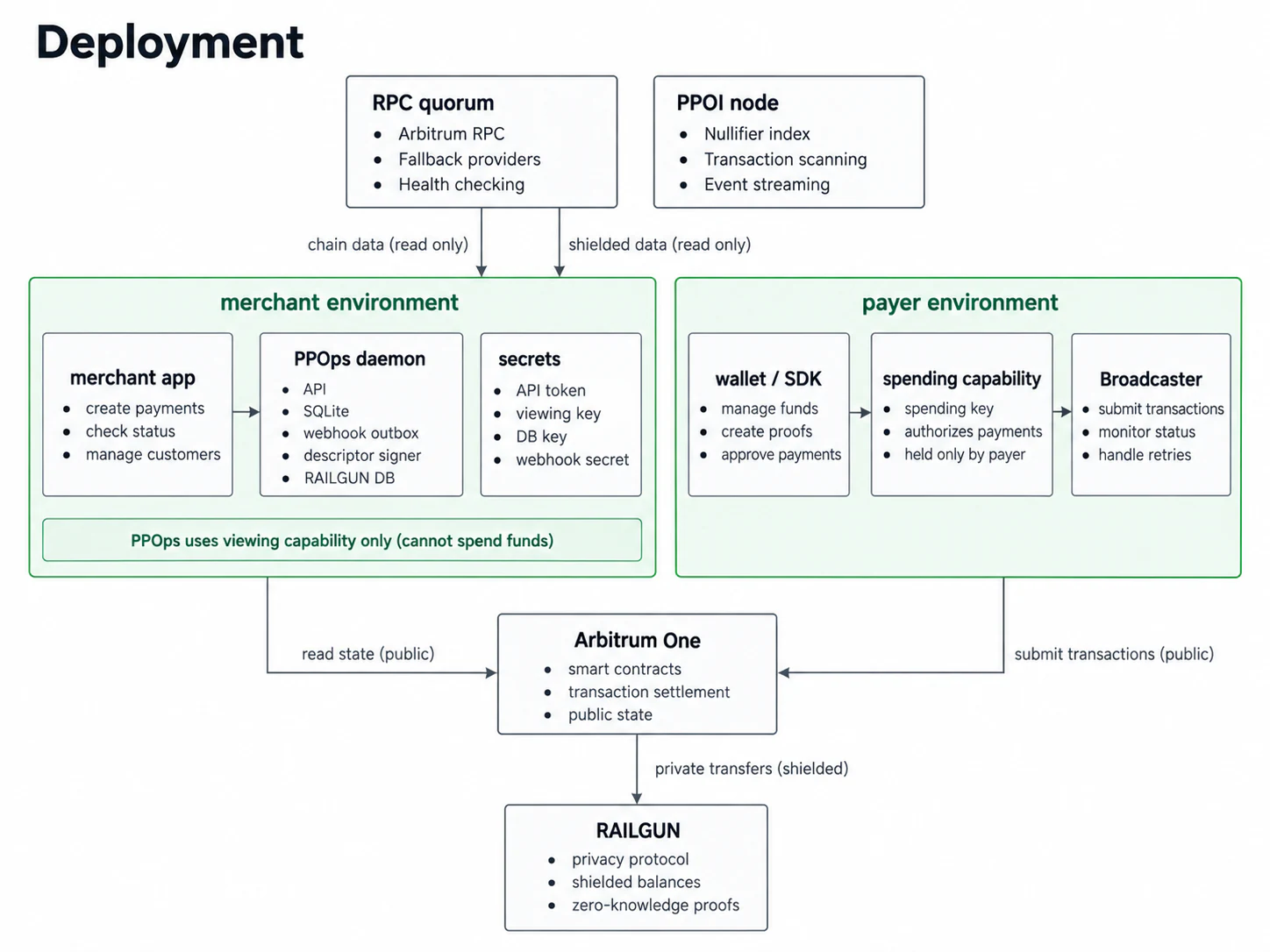

Keep the authenticated API on the merchant's private network. Expose only the documented checkout routes. Store secrets in owner-only files, persist the database and scanner state, and configure independent RPC origins and your chosen PPOI service.

Configuration · Deployment guide · Troubleshooting

CONTRIBUTING

PPOps is independent, Apache-2.0 open-source software. Reproducible bug reports, clearer documentation, integration feedback and independent evidence are useful contributions.

Repository · Issues · Contributing guide · Agent Skill

Keep secrets, wallet state and identifying payment data out of public reports. Use the security reporting policy for sensitive findings.
