Email Service

Jun Ye, yetsun@gmail.com, 09/01/2014

a service that accepts the necessary information and sends emails. It should provide an abstraction between two different email service providers. If one of the services goes down, your service can quickly failover to a different provider without affecting your customers.

##Technical track back-end

##Reasoning behind your technical choices It is built with Python. The web framework is Flask.

I haven't used Python in work. I learnt Python recently, it is easy and fun to learn and use Python. The Python code is much more concise than Java. I can focus more on the logic I want to make. The Python dynamic typing and duck typing are very interesting to me. It is very fast to code and deploy in Python too, which saves me a ton of time comparing to Java.

Flask is a light-weighted, easy to use web framework. The web part of this project is just to serve the HTTP POST request for the REST API. So I think Flask is a good fit for this project.

Overall, for this project, it's very interesting to use Python and explore new technologies. I enjoyed using Python and the whole time of making this project in the past 3 days.

##Trade-offs you might have made, anything you left out, or what you might do differently if you were to spend additional time on the project I think one design trade off is to make this service a more general purpose service v.s. a more specific ones for specific topics, like customer communication, marketing, internal process notification... For the specific ones, email content templates can be pre-defined, so that the users don't have to send the whole email content every time.

Left over are -To support rich email content and attachment. The implementation so far just supports plain text. The left over is to support rich content like images, video... And also supporting HTML format email content, as well as attachment.

-To support authentication and authorization. To check if the user is authenticated and authorized to use this API.

-security To support HTTPS To validate if the user has access to the 'from' email address

-reporting reporting on the usage per from/to email address and email service providers reporting on the failure rate of the email service providers

-logging -naming the email address -scheduling email deliver -for massive email sending, a.k.a sending a email to a large number of recipients, the ability batch it and chop the recipient list into smaller pieces.

##Link to other code you're particularly proud of ##Link to your resume or public profile The code and resume are sent by email before. Please let me know if you need the code and resume too. My email address is yetsun@gmail.com. Thanks.

##How to use this service The service APIs are RESTful APIs.

The main API calls should be made with HTTP POST. (Help API can be called with GET) Any non-0 status code in HTTP response code is an error. The returned message tells more detailed information.

###Main API URL: /emailservice/api/v1.0/sendemail

There is no UI for this project. It is a REST API. It is accessible through HTTP POST requests, expecting a JSON object as input. And it will return an object as output too.

method: POST

input:

• One from email address
• at least one to or cc or bcc email address
• email subject
• email content (Email subject and email content cannot be both empty)

input format: json

Following is a sample input json:

{
    'from':'test_from@mail.com',
    'to':['test_to1@mail.com, test_to2@mail.com'],
    'cc':'test_cc@mail.com',
    'bcc':['test_bcc1@mail.com', 'test_bcc2@mail.com'],
    'subject':'test subject',
    'text':'This is the test text as the email content. Again, this is the test text as the email content.'
}

output:

• status code
• message

output format: json

Following is a sample output json:

{'status': 0, 'message':'success'}

This is for successfully transaction.

You can consider any non-0 status code as an error. The message will give details. Following are typical errors, in the format of status code and message:

###Help API Beside the main API, there is also a help API to give an introduction about the main API and how to use it. The URL is as followed: /emailservice/api/v1.0/sendemail/help

method: POST or GET input: N/A

##Testing There is no UI for this project. It can be tested through curl or any tool that can send HTTP POST requests.

• Unit test cases are included in test.py
• End to end test scripts are included in test_script.txt (using curl)

Following are the scripts to test the service deployed on EC2:

• send email to one address

curl -i -H "Content-Type: application/json" -X POST -d \
 '{"from":"yetsun@gmail.com","to":"yetsun@gmail.com", "subject":"test subject","text":"This is an test email."}' \
  http://54.68.21.228/emailservice/api/v1.0/sendemail


output:

{
  "message": "success",
  "status": 0
}

• send email with to, cc and bcc address

curl -i -H "Content-Type: application/json" -X POST -d  \
'{"from":"yetsun@gmail.com","to":["yetsun@gmail.com", "youxiang2006@hotmail.com"], "cc": "yetsun@gmail.com", "bcc":["youxiang2006@hotmail.com"], "subject":"test subject full to/cc/bcc","text":"test text"}' \
 http://54.68.21.228/emailservice/api/v1.0/sendemail

output:

{
  "message": "success",
  "status": 0
}

• send email with invalid to/cc/bcc, expects erroring out

curl -i -H "Content-Type: application/json" -X POST -d \
 '{"from":"yetsun@gmail.com","to":[],"cc":"@hotmail.com", "bcc": ["xxx"], "subject":"test subject","text":"test text"}'  \
 http://54.68.21.228/emailservice/api/v1.0/sendemail

output:

{
  "message": "No valid to/cc/bcc email address. Please provide at least one valid to/cc/bcc email address.",
  "status": 2
}

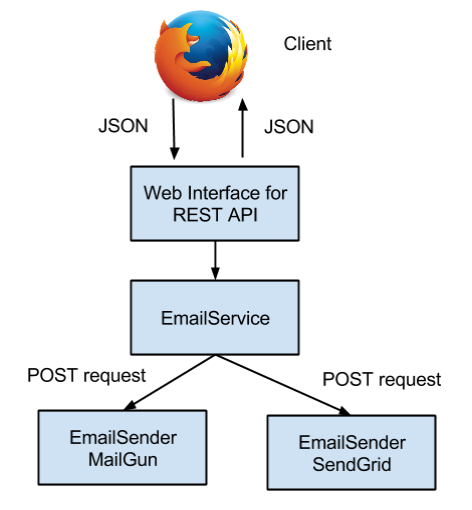

##Architecture

It's a 3 layers architecture.

• The webinterface.py is the presentation layer. It serves the REST API requests, calls the EmailSevice and sends response back.
• The EmailService is the business layer. It handles the business logic like email address validation, calls the EmailSender and failover on the EmailSenders. It is not aware of the email service providers details, but will retry with another EmailSender, if one failed.
• The EmailSender is the email service provider specific implementation. But it provides the abstraction of email service providers through a common method interface. It actually calls the email service provider's API to send emails. There is one email sender implemented MailGun and another Mandrill. During testing, it is found that MailGun doesn't support cc only emails, which are the emails with only the cc emails address, with no to address. This is a good test case for the fail over. When the MailGun is the current first email sender, and send an email with only the cc email address, it will failover to the Mandrill email sender. The email service provider specific configuration like API key and URL are available in a .conf file. ConfUtil.py is the utility class to handle the access to the .conf file.

This 3 layers architecture is to organize or isolate the code based on function and responsibility.

The benefits are

1. Vertically, each layer can focus on it's own function and responsibility. And let the other layers take care of the rest. In this Email Service, the presentation layer(webinterface.py) only need to take care of serving the REST API request and sending the response back. It doesn't need to know what to do with the income data, how to do it and the logic behind it, which is the responsibility of the business layer (emailservice.py). While emailservice doesn't need to know about the email service provider implementation, thanks to the email senders. The email senders are email service provider specific, but provide the abstraction of the implementation through a common method interface. In this way, the code is clear and easy to maintain and test.

2. Horizontally, within a certain layer, the components can be exchangeable, if well designed. In this Email Service, the email senders implemented the email service provider MailGun and Mandrill. If a new email service provider is required, simply create a new email sender to implement the new email service provider. It will work with the other layer, as long as it follows the same interface. So the code is scalable.

##Amazon EC2 Deployment

This Email Service is deployed to Amazon EC2. It's available in http://54.68.21.228/emailservice/api/v1.0/sendemail The help API is available in http://54.68.21.228/emailservice/api/v1.0/sendemail/help

Following is a test script:

curl -i -H "Content-Type: application/json" -X POST -d \
 '{"from":"yetsun@gmail.com","to":["yetsun@gmail.com", "youxiang2006@hotmail.com"], "cc":"yetsun@gmail.com", "subject":"test subject", "text":"This is a test email."}'  \
 http://54.68.21.228/emailservice/api/v1.0/sendemail
