DOCS: Centralize JoinStyle/CapStyle docs

timhoffm · Feb 1, 2021 · Sep 22, 2020 · Oct 20, 2020 · Oct 20, 2020 · Dec 14, 2020
commit 3c19b1f5fa5937531cd54a267a2fa6e4f52a6bdc
diff --git a/doc/_static/mpl.css b/doc/_static/mpl.css
@@ -89,7 +89,7 @@ table.highlighttable td {
     padding: 0 0.5em 0 0.5em;
 }

-cite, code, tt {
+cite, code, tt, dl.value-list dt {
     font-family: 'Consolas', 'Deja Vu Sans Mono', 'Bitstream Vera Sans Mono', monospace;
     font-size: 0.95em;
     letter-spacing: 0.01em;
@@ -730,7 +730,6 @@ td.field-body table.property-table tr:last-of-type td {
     border-bottom-color: #888;
 }

-
 /* function and class description */
 .descclassname {
     color: #aaa;
@@ -806,6 +805,22 @@ dl.class > dd {
     font-size: 14px;
 }

+/* custom tables for lists of allowed values in "mpl._types" */
+dl.value-list {
+    display: grid;
+}
+
+dl.value-list dt {
+    grid-column: 1;
+    margin: 4px 0;
+}
+
+dl.value-list dd {
+    grid-column: 2;
+    margin: 4px 0 4px 20px;
+    padding: 0;
+}
+
 /* parameter section table */
 table.docutils.field-list {
     width: 100%;
@@ -1257,4 +1272,4 @@ div.bullet-box li {

 div#gallery.section .sphx-glr-clear:first-of-type, div#tutorials.section .sphx-glr-clear:first-of-type{
     display: none;
-}
+}
diff --git a/doc/api/_types.rst b/doc/api/_types.rst
@@ -3,7 +3,13 @@
 **********************

 .. automodule:: matplotlib._types
-   :members:
-   :undoc-members:
-   :show-inheritance:
+   :no-members:
+
+   .. autoclass:: JoinStyle
+      :members: demo
+      :exclude-members: bevel, miter, round, input_description
+
+   .. autoclass:: CapStyle
+      :members: demo
+      :exclude-members: butt, round, projecting, input_description

diff --git a/examples/lines_bars_and_markers/capstyle.py b/examples/lines_bars_and_markers/capstyle.py
@@ -0,0 +1,15 @@
+"""
+=========
+CapStyle
+=========
+
+The `matplotlib._types.CapStyle` controls how Matplotlib draws the corners
+where two different line segments meet. For more details, see the
+`~matplotlib._types.CapStyle` docs.
+"""
+
+import matplotlib.pyplot as plt
+from matplotlib._types import CapStyle
+
+CapStyle.demo()
+plt.show()
diff --git a/examples/lines_bars_and_markers/joinstyle.py b/examples/lines_bars_and_markers/joinstyle.py
@@ -0,0 +1,15 @@
+"""
+=========
+JoinStyle
+=========
+
+The `matplotlib._types.JoinStyle` controls how Matplotlib draws the corners
+where two different line segments meet. For more details, see the
+`~matplotlib._types.JoinStyle` docs.
+"""
+
+import matplotlib.pyplot as plt
+from matplotlib._types import JoinStyle
+
+JoinStyle.demo()
+plt.show()
diff --git a/lib/matplotlib/_types.py b/lib/matplotlib/_types.py
@@ -1,16 +1,28 @@
 """
-Style description information that is shared across unrelated classses.
+Matplotlib API concepts that would not otherwise merit a dedicated class.
+
+Matplotlib often uses simple data types like strings or tuples to define a
+concept; e.g. the line capstyle can be specified as one of 'butt', 'round',
+or 'projecting'. The classes in this module are used internally and serve to
+document these concepts formally.
+
+As an end-user you will not use these classes directly, but only the values
+they define.
 """

 from enum import Enum, auto
-from matplotlib import cbook
+from matplotlib import cbook, docstring


 class _AutoStringNameEnum(Enum):
     """Automate the ``name = 'name'`` part of making a (str, Enum)."""
+
     def _generate_next_value_(name, start, count, last_values):
         return name

+    def __hash__(self):
+        return str(self).__hash__()
+

 def _deprecate_case_insensitive_join_cap(s):
     s_low = s.lower()
@@ -34,13 +46,7 @@ class JoinStyle(str, _AutoStringNameEnum):
     Define how the connection between two line segments is drawn.

     For a visual impression of each *JoinStyle*, `view these docs online
-    <JoinStyle>`, or run `JoinStyle.demo`:
-
-    .. plot::
-        :alt: Demo of possible JoinStyle's
-
-        from matplotlib._types import JoinStyle
-        JoinStyle.demo()
+    <JoinStyle>`, or run `JoinStyle.demo`.

     Lines in Matplotlib are typically defined by a 1D `~.path.Path` and a
     finite ``linewidth``, where the underlying 1D `~.path.Path` represents the
@@ -52,32 +58,42 @@ class JoinStyle(str, _AutoStringNameEnum):
     results in corners appearing "rounded", which may not be the desired
     behavior if you are drawing, for example, a polygon or pointed star.

-    Matplotlib provides three options for drawing the corners between adjacent
-    segments. In short:

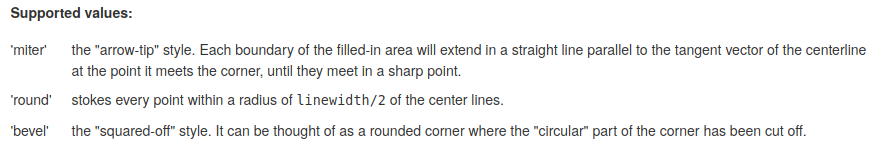

+    **Supported values:**
+
+    .. rst-class:: value-list

-    - *miter* is the "arrow-tip" style. Each boundary of the filled-in area
-        will extend in a straight line parallel to the tangent vector of the
-        centerline at the point it meets the corner, until they meet in a
-        sharp point.
-    - *round* stokes every point within a radius of ``linewidth/2`` of the
-        center lines.
-    - *bevel* is the "squared-off" style. It can be thought of as a rounded
-        corner where the "circular" part of the corner has been cut off.
+        'miter'
+            the "arrow-tip" style. Each boundary of the filled-in area will
+            extend in a straight line parallel to the tangent vector of the
+            centerline at the point it meets the corner, until they meet in a
+            sharp point.
+        'round'
+            stokes every point within a radius of ``linewidth/2`` of the center
+            lines.
+        'bevel'
+            the "squared-off" style. It can be thought of as a rounded corner
+            where the "circular" part of the corner has been cut off.

     .. note::

-        The *miter* option can be controlled further by specifying a "miter
-        limit", which specifies how long a miter tip can get before it is
-        automatically "bevel"ed off. Matplotlib does not currently expose a
-        ``miterlimit`` parameter to the user, and most backends simply use the
-        upstream default value. For example, the PDF backend assumes the
-        default value of 10 specified by the PDF standard, while the SVG
-        backend does not even specify the miter limit, resulting in a default
-        value of 4 per the SVG specification.
+        Very long miter tips are cut off (to form a *bevel*) after a
+        backend-dependent limit called the "miter limit", which specifies the
+        maximum allowed ratio of miter length to line width. For example, the
+        PDF backend uses the default value of 10 specified by the PDF standard,
+        while the SVG backend does not even specify the miter limit, resulting
+        in a default value of 4 per the SVG specification. Matplotlib does not
+        currently allow the user to adjust this parameter.

         A more detailed description of the effect of a miter limit can be found
         in the `Mozilla Developer Docs
         <https://developer.mozilla.org/en-US/docs/Web/SVG/Attribute/stroke-miterlimit>`_
+
+    .. plot::
+        :alt: Demo of possible JoinStyle's
+
+        from matplotlib._types import JoinStyle
+        JoinStyle.demo()
+
     """

     miter = auto()
@@ -90,6 +106,7 @@ def __init__(self, s):

     @staticmethod
     def demo():
+        """Demonstrate how each JoinStyle looks for various join angles."""
         import numpy as np
         import matplotlib.pyplot as plt

@@ -101,7 +118,7 @@ def plot_angle(ax, x, y, angle, style):
             ax.plot(xx, yy, lw=1, color='black')
             ax.plot(xx[1], yy[1], 'o', color='tab:red', markersize=3)

-        fig, ax = plt.subplots(figsize=(8, 6))
+        fig, ax = plt.subplots(figsize=(5, 4), constrained_layout=True)
         ax.set_title('Join style')
         for x, style in enumerate(['miter', 'round', 'bevel']):
             ax.text(x, 5, style)
@@ -115,6 +132,11 @@ def plot_angle(ax, x, y, angle, style):
         fig.show()


+JoinStyle.input_description = "{" \
+        + ", ".join([f"'{js.name}'" for js in JoinStyle]) \
+        + "}"
+
+
 class CapStyle(str, _AutoStringNameEnum):
     r"""
     Define how the two endpoints (caps) of an unclosed line are drawn.
@@ -125,21 +147,27 @@ class CapStyle(str, _AutoStringNameEnum):
     controlled by the *CapStyle*.

     For a visual impression of each *CapStyle*, `view these docs online
-    <CapStyle>` or run `CapStyle.demo`:
+    <CapStyle>` or run `CapStyle.demo`.
+
+    **Supported values:**
+
+    .. rst-class:: value-list
+
+        'butt'
+            the line is squared off at its endpoint.
+        'projecting'
+            the line is squared off as in *butt*, but the filled in area
+            extends beyond the endpoint a distance of ``linewidth/2``.
+        'round'
+            like *butt*, but a semicircular cap is added to the end of the
+            line, of radius ``linewidth/2``.

     .. plot::
         :alt: Demo of possible CapStyle's

         from matplotlib._types import CapStyle
         CapStyle.demo()

-    Available options:
-
-    - *butt*: the line is squared off at its endpoint.
-    - *projecting*: the line is squared off as in *butt*, but the filled in
-        area extends beyond the endpoint a distance of ``linewidth/2``.
-    - *round*: like *butt*, but a semicircular cap is added to the end of
-        the line, of radius ``linewidth/2``.
     """
     butt = 'butt'
     projecting = 'projecting'
@@ -151,20 +179,30 @@ def __init__(self, s):

     @staticmethod
     def demo():
+        """Demonstrate how each CapStyle looks for a thick line segment."""
         import matplotlib.pyplot as plt

-        fig, ax = plt.subplots(figsize=(8, 2))
+        fig = plt.figure(figsize=(4, 1.2))
+        ax = fig.add_axes([0, 0, 1, 0.8])
         ax.set_title('Cap style')

         for x, style in enumerate(['butt', 'round', 'projecting']):
-            ax.text(x+0.25, 1, style, ha='center')
+            ax.text(x+0.25, 0.85, style, ha='center')
             xx = [x, x+0.5]
             yy = [0, 0]
             ax.plot(xx, yy, lw=12, color='tab:blue', solid_capstyle=style)
             ax.plot(xx, yy, lw=1, color='black')
             ax.plot(xx, yy, 'o', color='tab:red', markersize=3)
-        ax.text(2.25, 0.7, '(default)', ha='center')
+        ax.text(2.25, 0.55, '(default)', ha='center')

         ax.set_ylim(-.5, 1.5)
         ax.set_axis_off()
         fig.show()
+
+
+CapStyle.input_description = "{" \
+        + ", ".join([f"'{cs.name}'" for cs in CapStyle]) \
+        + "}"
+
+docstring.interpd.update({'JoinStyle': JoinStyle.input_description,
+                          'CapStyle': CapStyle.input_description})
diff --git a/lib/matplotlib/backend_bases.py b/lib/matplotlib/backend_bases.py
@@ -44,8 +44,8 @@

 import matplotlib as mpl
 from matplotlib import (
-    _api, backend_tools as tools, cbook, colors, textpath, tight_bbox,
-    transforms, widgets, get_backend, is_interactive, rcParams)
+    _api, backend_tools as tools, cbook, colors, docstring, textpath,
+    tight_bbox, transforms, widgets, get_backend, is_interactive, rcParams)
 from matplotlib._pylab_helpers import Gcf
 from matplotlib.backend_managers import ToolManager
 from matplotlib.cbook import _setattr_cm
@@ -917,13 +917,14 @@ def set_antialiased(self, b):
         # Use ints to make life easier on extension code trying to read the gc.
         self._antialiased = int(bool(b))

+    @docstring.interpd
     def set_capstyle(self, cs):
         """
         Set how to draw endpoints of lines.

         Parameters
         ----------
-        cs : `.CapStyle` or {'butt', 'round', 'projecting'}
+        cs : `.CapStyle` or %(CapStyle)s
         """
         self._capstyle = CapStyle(cs)

@@ -982,13 +983,14 @@ def set_foreground(self, fg, isRGBA=False):
         else:
             self._rgb = colors.to_rgba(fg)

+    @docstring.interpd
     def set_joinstyle(self, js):
         """
         Set how to draw connections between line segments.

         Parameters
         ----------
-        js : `.JoinStyle` or {'miter', 'round', 'bevel'}.
+        js : `.JoinStyle` or %(JoinStyle)s
         """
         self._joinstyle = JoinStyle(js)
