Self-hosted customer journey analytics. Your data stays on your servers.

Lyraflow records what people do in your product, stitches anonymous visits to known accounts, and lets you ask who did what. It runs on your own machine under Docker, and nothing leaves it.

Five minutes, most of it waiting for Docker.

git clone https://github.com/lyraflow/lyraflow.git
cd lyraflow
git checkout "$(git describe --tags --abbrev=0)"
./install.sh
docker compose exec lyraflow node packages/cli/dist/index.js create-project "My App"

That moves the checkout to the newest release, so it matches the image install.sh pulls. It then generates passwords into .env, starts three containers, waits until the app answers on port 3000, and prints a write key and a server key. Getting started is the same five steps with everything that matters said out loud: the Compose version this needs, serving HTTPS on a domain, the snippet, and your first event from a backend. Nothing to look at in a fresh install? Demo data fills one with generated people and events.

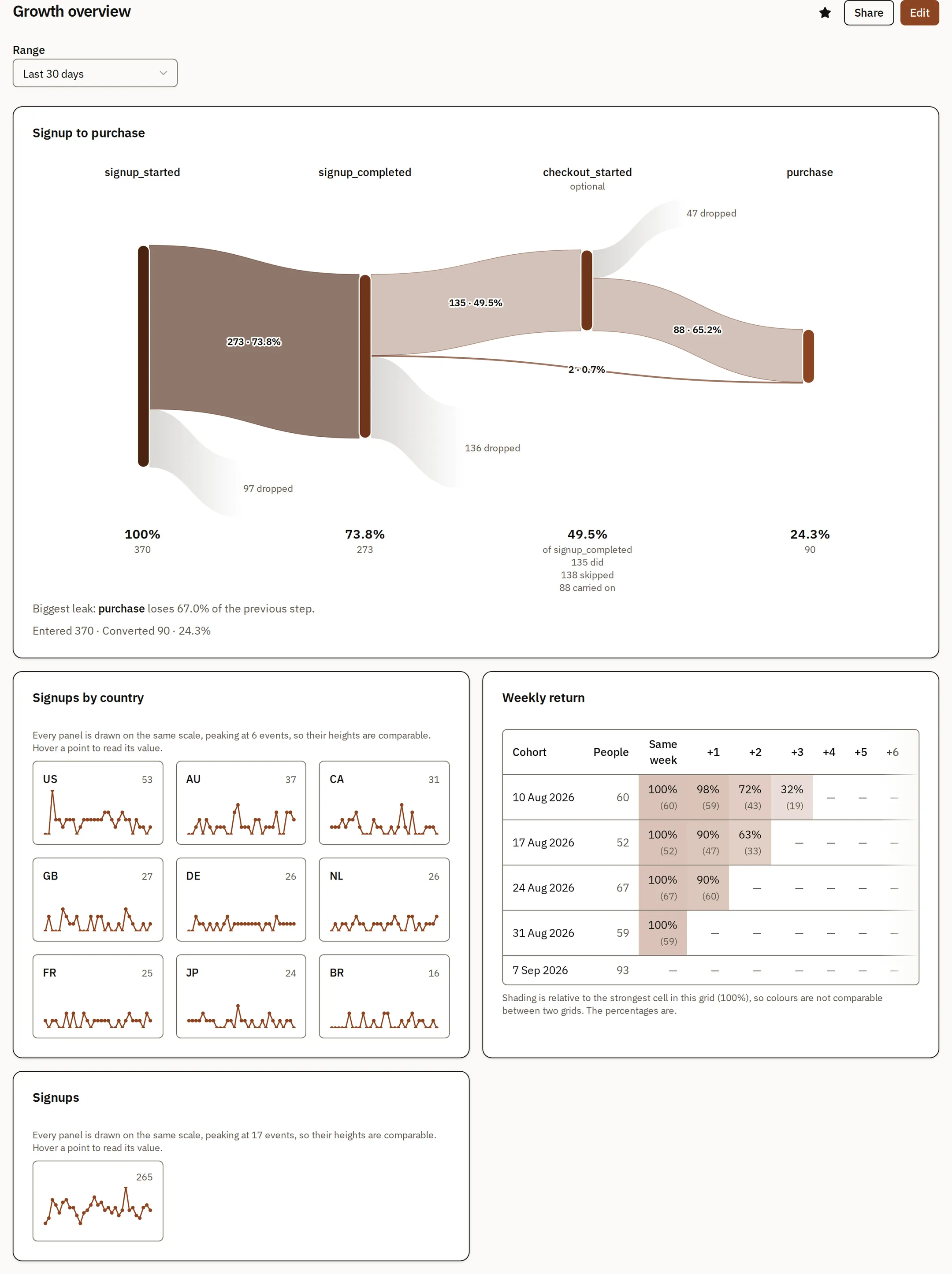

Saved reports sit together on a dashboard, and one dashboard can be the screen you land on:

Live demo. demo.lyraflow.app is a running Lyraflow, signed in with demo@lyraflow.app / lyraflow-demo. It is one shared instance filled with generated people and events — everyone who opens it is in the same session — and it rebuilds itself every hour, so nothing you do there survives and nothing real belongs in it. Deleting a person is refused there; everything else you can delete, and the rebuild brings it back.

Documentation. Every section below is also a page at lyraflow.app/docs.

Early days. v0.16 is the HTTP API and the operations behind it — ingest, identity, segments, funnels, trends, retention grids, dashboards, event reads, privacy, retention, quotas and backup — with a web UI over all of it. Web UI walks every screen and says, screen by screen, what each one does not do yet; the changelog says what each release added.

The largest gaps today: journeys and path analysis do not exist. A saved trend or retention report stores its question but not the range it ran over, so reopening one runs it over whatever range is on screen. Trait search takes one condition on one named trait, and cannot combine two or search every trait at once.

Knowing who someone is. A visitor browses anonymously, signs up two weeks later, then uses your product from a phone. Lyraflow ties all of that to one person, and reads their history back stitched. If two people share a device, each event is attributed to whoever was signed in at that moment — not to whoever used it last.

Deleting someone completely. DELETE /v1/persons/:id erases the underlying rows, and every read path — segment counts, member lists, person reads, exports — is filtered from the instant the request is accepted, not when the purge finishes. A person deleted a second ago is already invisible.

Being cheap to run and hard to surprise. Events go to ClickHouse and identity to Postgres, one container each. Old events expire on a schedule you set. A project can be given a monthly event cap. One script backs both databases up together; another puts them back. Every limit in this document has a number attached, and the ones with known slack say so.

Being scriptable. Events, people, segments, schema and deletions all have CLI wrappers with machine-readable output, so scripts and agents can use them without a browser. See packages/cli/README.md.

Lyraflow is fair-code distributed under the Sustainable Use License. The source is always visible, and you are free to self-host, use and modify it for your own business.

It is not an OSI-approved open source license. The practical difference: you may not sell Lyraflow as a hosted service to other people.

Four steps. About five minutes, most of it waiting for Docker.

You need Docker and Docker Compose v2.21.0 or newer. Nothing else.

That version is not arbitrary. install.sh asks Compose for a container's status with a Go template (docker compose ps caddy --format '{{.Status}}'), and --format only learned to accept a template in v2.21.0 — before that it took table or json and answered anything else with format value "…" could not be parsed. Everything else these scripts use is older: up --wait since v2.1.1, ps --status since the first v2 release.

If you are on something older, the install still completes — that call is on an error path and falls back to saying nothing rather than failing. You would only notice by getting a less specific message when a container fails to start. Check yours with docker compose version.

git clone https://github.com/lyraflow/lyraflow.git
cd lyraflow
git checkout "$(git describe --tags --abbrev=0)"
./install.sh

The git checkout moves you from main to the newest release tag, so the checkout matches the image install.sh pulls: main can describe settings that no published image has yet. install.sh then generates passwords into .env, starts three containers, and waits until the app answers on port 3000.

That is a local install: plain HTTP on port 3000, which is all the examples below need. Running this on a server with a domain name? Pass it to the installer and Lyraflow serves HTTPS itself:

./install.sh analytics.example.com

See Serving over HTTPS for what that changes, and for the one case — a domain proxied through Cloudflare — where it needs a hand.

Then create a project:

docker compose exec lyraflow node packages/cli/dist/index.js create-project "My App"

It prints two keys, and the difference between them matters:

Scripting this instead of reading it? create-project "My App" --json prints one line — {"id","name","slug","write_key","server_key"} — rather than the two lines above, so a script reads the keys as JSON instead of scraping this text.

Run create-project again for each additional website you want to track separately — one install holds as many projects as you like, and the rest of this document shows one only because a project is the unit each example operates on. If you are tracking two sites, read Tracking more than one site before instrumenting either: whether they are one project or two decides whether a person using both is one person or two, and that cannot be changed later without re-ingesting.

Keep both to hand:

export LYRAFLOW_WRITE_KEY=wk_...
export LYRAFLOW_SERVER_KEY=sk_...

Ask Lyraflow for the snippet rather than writing it yourself — it fills in your host and write key, and escapes them correctly:

docker compose exec \
  -e LYRAFLOW_HOST=http://localhost:3000 \
  -e LYRAFLOW_SERVER_KEY \
  lyraflow node packages/cli/dist/index.js snippet

-e LYRAFLOW_SERVER_KEY with no value hands Compose the key you exported above, so it never appears in the host's process list the way -e LYRAFLOW_SERVER_KEY=sk_… would.

Paste what it prints into your site's <head>. It loads a ~5 KB script, starts recording page views immediately, and queues events in localStorage if your server is unreachable, so a deploy or a blip loses nothing.

When someone signs in, tell Lyraflow who they are — this is what ties their anonymous browsing to their account:

lyraflow.identify('user-42', { plan: 'pro' })

Details, consent handling and single-page-app routing: Sending events from a browser.

Anything your server knows and the browser does not — payments, cancellations, webhooks — goes over the same ingest API with the same write key:

curl -i http://localhost:3000/v1/track \
  -H 'content-type: application/json' \
  -H "x-lyraflow-write-key: $LYRAFLOW_WRITE_KEY" \
  -A 'MyApp/1.0 (+https://example.com)' \
  -d '{
    "message_id": "0b2f6a1e-9c4d-4a1f-8f3b-2f1c7d5e6a90",
    "user_id": "user-42",
    "event": "subscription_started",
    "properties": { "plan": "pro", "seats": 3 }
  }'

You get 202 Accepted with {"status":"accepted"}.

Set a real User-Agent, as above. Lyraflow discards events that look automated so bots do not inflate your person counts — and curl's default, or no header at all, counts as automated. Without one this request still answers 202 and the event is silently dropped. Avoid bot, crawler, curl/, python-requests and similar (full list: packages/core/src/enrich/bots.ts).

The CLI wraps the read endpoints. It is already built inside the running container, so give yourself a shorthand:

lyraflow() {
  docker compose exec \
    -e LYRAFLOW_HOST=http://localhost:3000 \
    -e LYRAFLOW_SERVER_KEY \
    lyraflow node packages/cli/dist/index.js "$@"
}

Then:

lyraflow stats --since 24h --by-event    # how many of each event, per hour
lyraflow events --since 1h               # the raw feed, newest first
lyraflow events --follow                 # watch them arrive live
lyraflow persons get user-42             # one person's stitched profile

Every command takes --json for scripts and agents; the table output is for humans and is not a stable interface. Full reference: packages/cli/README.md.

Or watch the same feed in a browser: sign in at http://localhost:3000 — see Web UI.

Nothing to look at yet? Demo data fills a project with synthetic history so the screens have something to show.

That is the whole loop — instrument, send, read. Everything below is detail on each part.

An empty project tells you nothing. The segments screen, the funnels screen and the feed are all uninformative until there is history to look at, and waiting ninety days for your own traffic to accumulate is not a way to evaluate anything. So there is a command that fills a project with synthetic people and events:

docker compose exec lyraflow node packages/cli/dist/index.js \
  create-project "Demo"

docker compose exec lyraflow node packages/cli/dist/index.js \
  seed-demo demo

By default that is 400 people and 5,000 events spread over 90 days: a signup-to-purchase funnel with realistic drop-off, identify traits (plan, country, signup_source, seats, mrr_usd, is_trial), UTM campaigns on first touch, purchase amounts, and visitors who browsed anonymously before signing up. last 7 days, last 30 days and ever give three different answers, which is the point.

seed-demo <project> [--persons N] [--events N] [--days N] [--seed N] [--anchor <instant>]

<project> is the project's name or slug. --help prints the full list with its defaults. Nothing it writes could be mistaken for a real person or company: identifiers are prefixed demo-, names are "Demo Person 0042", there are no email addresses, and URLs use the reserved .invalid domain.

It is reproducible. At a fixed --seed every person, trait, property value and the whole sequence of events is identical run to run, so you can compare a screen before and after a change and know the data did not move underneath you. The one thing that does move is the anchor — "now" for the generated history — which defaults to the moment you run the command; pass --anchor to pin it and two runs become byte-for-byte identical.

It writes to Postgres and ClickHouse directly, not through the ingest API, so it needs LYRAFLOW_POSTGRES_URL and the LYRAFLOW_CLICKHOUSE_* variables (which are already set inside the container), and it needs migrate to have run. That is not a shortcut: every client timestamp sent to /v1/batch is clamped to within 24 hours of arrival, on purpose, because a wrong device clock would otherwise corrupt every time-windowed segment (see Payload fields). Backdated events posted over HTTP therefore all land inside a single day, and ninety days of history is impossible to create that way. The clamp is not relaxed and there is no trusted-backdating flag; the seeder simply does not go through it.

It only ever inserts. There is no reset, no wipe and no --force: it cannot delete anything, including its own earlier output. Two consequences worth knowing before you run it twice:

• Running it again adds another cohort. Counts go up; they are not replaced.

• Re-running at the same seed re-mints the same event ids at new instants, so an accidental double-run is findable rather than silent:

  docker compose exec clickhouse clickhouse-client \
    --user "$LYRAFLOW_CLICKHOUSE_USER" --password "$LYRAFLOW_CLICKHOUSE_PASSWORD" \
    --database "$LYRAFLOW_CLICKHOUSE_DB" \
    --query "SELECT event_id, count() AS n FROM events GROUP BY event_id HAVING n > 1"

  A different --seed produces a disjoint population with its own identifiers, which is usually what you want for a second helping.

If you want a clean slate, the honest answer is a fresh project: make one with create-project and seed that instead. To remove seeded data outright, use the ordinary deletion API or drop the project — this command deliberately owns no destructive path.

Do not point it at a project holding real traffic. Nothing will be lost, but the synthetic people will be mixed in with your own and every count on every screen will include them.

Open http://localhost:3000 (or your domain, if you installed with one) and sign in with the admin account — see Admin login for where that password comes from and how to change it. It is served on the same origin and port as ingest — there is no separate admin host or port to firewall off separately. Everything the Admin login section says about that origin being reachable from wherever ingest is reachable applies to the login form too.

A fresh install, signed in with no project yet, gets a first-run wizard instead of the normal screen. Name a project, and the wizard hands back the install snippet and the project's one-time server key — shown once and never again, the same discipline Settings uses for every later project's key, described below — then waits for a real first event to arrive. It never claims a working install on a timer, only on an event actually landing, and an arriving event does not dismiss the wizard by itself either: it flips the last step into a success state and waits for you to click "Continue to dashboard" — so the key stays on screen until you say you're done with it. There is also a "Skip to dashboard" for the case where you cannot instrument the target site right now.

Past the wizard (or immediately, if a project already exists), there are eight screens, reachable from the sidebar.

Several saved reports on one screen: a named, ordered grid of tiles, each a saved trend, a saved retention report or a funnel, half or full width. One range picker applies to every tile and lives in the URL, not in the dashboard, for the same reason a saved report never stores its range. Its default setting is the exception, and the screen says so: at Default for this resolution no range is sent at all, so each tile falls back to its own report's default window and the tiles are not on one period. Pick a preset to put them on the same range. A project can have many dashboards; the star — on a list row, and on the dashboard itself in both view and edit mode — marks one as home. It opens at / after login, and "Dashboards" in the sidebar and the Lyraflow mark both go to it when one is starred (the list otherwise); "All dashboards" on a dashboard opens the list. Clicking the filled star clears it, leaving the project with no home. Editing happens in place — rename, reorder, resize, add, remove — and every change saves as it is made. A tile whose report has since been deleted stays on the dashboard and says so rather than vanishing. Clicking a tile opens the report it shows, over the dashboard's range — for a funnel only when that range is one the funnel screen itself offers (24 hours, 7, 30 or 90 days), and otherwise the funnel opens on its own default and says which range it ran. At most twelve tiles, and at most three of them run at once, so opening a dashboard does not fan a dozen queries at ClickHouse together. A tile whose stored definition would exceed a server ceiling under the current range — too many points, too many cohorts, or a funnel range past 90 days — warns instead of running, the same way its own screen does. A dashboard can be shared by a secret link from its Share button, in view mode; see Sharing a dashboard. What a dashboard does not do yet: it does not refresh on its own, and a tile is always a saved report — no single-number tiles, no text.

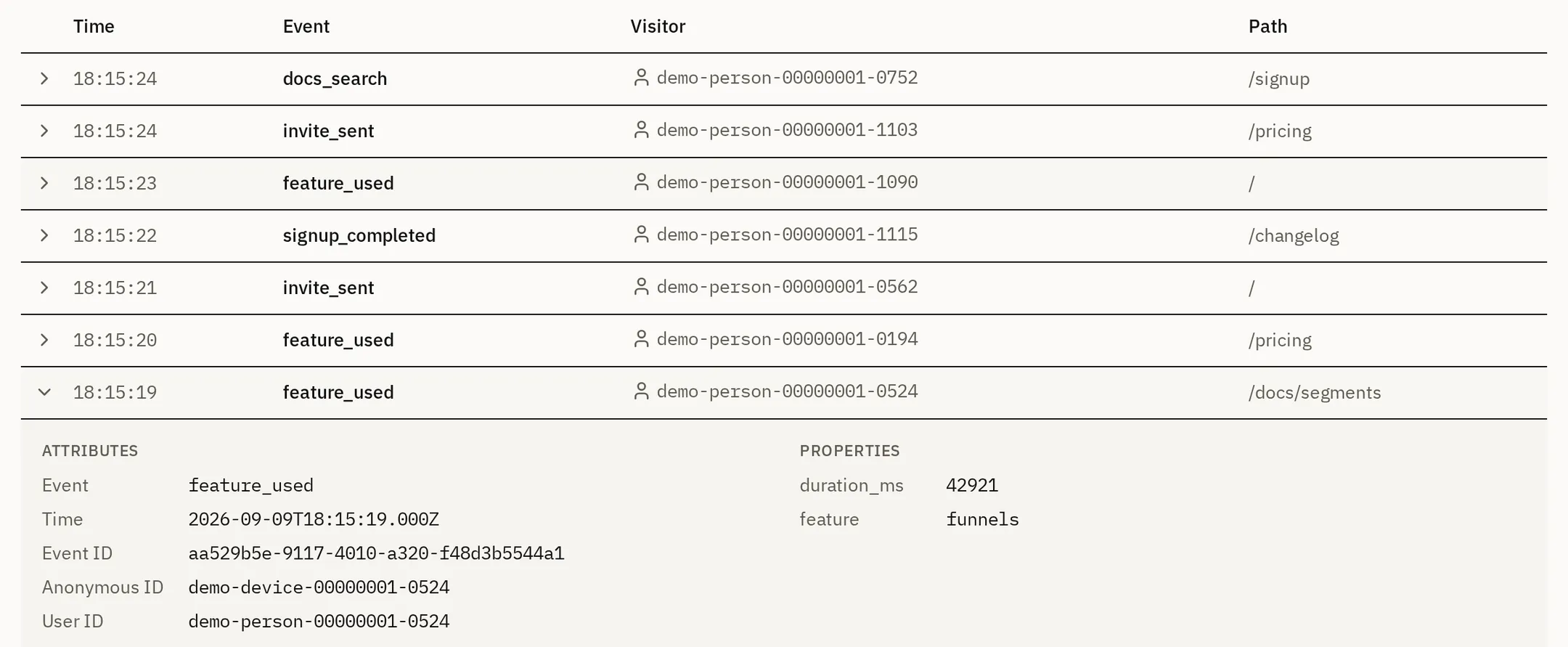

A live event feed, split into an Accepted tab and a Rejected tab, over a window you pick — the last hour through the last 90 days — with an optional event-name filter. The window and the filter are held in the URL, so a refresh keeps them and the screen can be shared as a link; the page polls every few seconds on the short windows and once a minute on the long ones. The chart above the tables counts events per bucket over the same window, at the finest resolution that window allows. The event filter reaches the chart and the Accepted tab but not the Rejected one: a payload may have been refused precisely because its event name was missing or unparseable, so filtering the rejections by name would hide the rows that tab exists for. Rejected events carry the reason they were dropped next to each row — validation_failed, too_many_properties, event_name_cardinality or property_key_cardinality — which is otherwise only visible by reading server logs. An unauthenticated or over-quota request is refused before it reaches a project at all, so it is never dead-lettered and never shows up here — the Rejected tab tells you about payloads that reached a real project and were still refused, not about a bad or missing write key.

The install snippet for the active project (so losing the copy from the wizard is not a trip to the CLI); the project list, where each one can be renamed or archived; this month's usage (accepted, rejected, throttled, and the quota — reading plainly as Unlimited rather than a bar or a number when none is set); the project's retention and monthly quota, both editable in place; and the full project list with a create-project flow of its own, whose server key is likewise shown exactly once and never again.

Create a funnel from an ordered list of events, run it over a range you choose, and read the result as one row per step: how many people reached it, what share of the entrants that is, and how many dropped between it and the step before. Opening a saved funnel runs it once; changing the range does not re-run it — the chart dims and waits for you, because a funnel is a real scan and because numbers from the old range sitting under a new one would be a wrong answer stated confidently.

Two honesty details worth knowing, both of which the screen states without being asked. If some of the people who entered did so too recently to have had the funnel's full window, it says so and tells you how many — otherwise every run over a range shorter than the window quietly under-reports conversion. And if a funnel's segment filter has been deleted, the run succeeds over everyone rather than failing; the screen reports that and stops showing the filter as though it applied, because the numbers alone look entirely normal.

Click a step and a Reached/Dropped panel opens beneath the chart — two different populations, each counted on its own rather than assumed from the chart above (see Who reached a step, or stopped there under Funnels below).

How many of an event over time, optionally split by an event column or by a key from its own properties. It runs on demand rather than on render, and it can be saved: create one, give it a name, and reopen it later from the Trends list, the same as a funnel. What is saved is the event, the interval and the breakdown — not the range, so reopening a trend runs it over whatever range the screen currently has, never the one it was saved with. A split is drawn as small multiples — one panel per value, all on one shared scale, which the screen states — rather than as overlaid coloured lines: Lyraflow's palette is a single copper ramp built for ordinal data like funnel stages, and a breakdown's values have no order, so there is no honest colour to give them. Ten panels at most; everything smaller is summed into (other), and the screen says how many values that was so the panels still add up. Every point is marked, and hovering one reads out its bucket and its value in every panel at once — the pointer picks a moment and each series says what it was doing then.

Pick a start event, a return event, a condition on either of them, a period and how many of them, and run a cohort grid. It does not run on render and does not re-run when you change the controls: a grid is a real scan, and numbers from one definition sitting under the controls of another is a wrong answer stated confidently, so the grid clears and waits for you. Cells shade by retention relative to the strongest cell in that grid, which the screen states — a narrowed grid peaking at 15% would otherwise render with no visible colour at all, so shades compare within one grid and never between two. A period that had not finished when the grid ran shows a dash rather than 0% — with a line underneath saying how many did, because a dash read as a zero is the one way this chart misleads.

It can be saved too: create one, name it, and reopen it later from the Retention list. What is saved is the two events, their conditions, the granularity, the period count and the segment — not the range, so reopening a report runs it over whatever range the screen currently has. Two things can stop that run before it starts. A range and granularity that would together exceed 60 cohorts disables Run and computes nothing — the same ceiling and warning a fresh grid gets. A report whose stored filters no longer parse says so and skips the automatic run too, but leaves Run enabled, so the operator can still run the degraded version knowingly rather than being locked out of it.

Build a filter tree in the browser: and/or groups, traits, context, lifecycle bounds, and behaviours with their own where predicates. Preview it before saving — the person count and a bounded page of members, taken at one instant — then save, re-run, edit or delete it. Clicking a person opens what the preview already knows about them: their latest country, city, device, OS and browser, the referrer and campaign they arrived through, and the traits identify() has set. Attributes with no value are left out and counted rather than listed as blanks, and a person carrying more traits than a row returns says how many are not shown.

The same honesty details as Funnels, for the same reasons. A saved segment's count is the server's cache from its last evaluation, shown with the instant it was taken and never passed off as current; a segment that has never been evaluated says so rather than rendering as a count of zero. The list does not silently re-evaluate everything on every visit, because each evaluation is a real ClickHouse scan. And a segment whose stored tree no longer parses opens read-only rather than being offered for editing as though the builder understood it.

A person profile at /people?id=…: the canonical id and every id ever bound to it, split into user ids and device ids; first seen, last seen and the event count; their traits; their latest context — device, browser, OS, country, referrer and campaign — read from their newest event; and their full event timeline, newest first, paged backwards a page at a time and bounded by their own first-seen and last-seen rather than by the last 24 hours — so a customer last active in June opens on June, not on an empty screen. Reached from a segment member row, a funnel step's people panel, the feed's person cell, the sidebar, or either of the two searches on the screen itself.

Those two sit side by side whenever no id is in the URL. The lookup box takes an id you already have. Find by trait is for when you have none: one condition on one named trait, built exactly as a segment's trait condition is and offering the same operators — compare, text (contains, starts with, ends with, and their negations), presence, true or false, relative date — with the value box that operator calls for, or none at all for is set and is true. It runs through the same engine a segment preview uses, listing everyone who matches with their traits and a link to each profile, paged the way a segment's member list is. One condition is the shape of the search, not a claim that the matching is exact: what it will not do is combine several conditions — that is what a segment is for — look for a value across every trait at once, since you name the trait, or list everyone without naming a condition at all. The condition lives in the URL, so a search that matched nobody is still a link that says so after a reload.

The entry points reach further than the profile does. A person only enters the identity graph through identify(), so a visitor who has only ever been tracked anonymously has events — visible in the feed, under their anonymous_id — and no profile to open. The feed still links their rows, and the profile answers by naming that as the first of the four things a "nothing to show" can mean, rather than by hiding the link or by claiming the id was never seen. On a fresh install, where little has been identified yet, that is the common case. It is the same limit Privacy: deletion and export below documents for the API, met from the UI side. The rows that do open a profile carry a person icon — in the feed's accepted table and in every member list — so which link pays off is visible before the click.

Two privacy actions sit on the profile. Export buffers the subject-access response in the browser and triggers a save — past 50,000 events it shows the equivalent lyraflow persons export command instead, because a button that starts a download doomed to hang is worse than no button. Delete is the same two-step, typed-id-confirm pattern project deletion uses, then polls to completion rather than trusting the request that started it.

The account menu in the header also has a Profile screen, for changing the admin's email address and password, and for picking the UI's accent colour. Seven palettes — copper, the default, plus cobalt, moss, plum, slate, wine and amber — each the same ramp with the hue swapped, and each measured for contrast in both light and dark before it shipped (brand/contrast-report.txt). The choice is kept in the browser, not on the server: it follows the browser, not the account, and changes the accent only — surfaces, text and the status colours are the same in every palette. Both account changes require the current password — a session is enough to read everything this install holds and deliberately not enough to change what recovers the account — and a password change signs out every other browser, which is the point of changing it after a leak. There is no confirmation email, because Lyraflow sends no mail; a new address takes effect immediately.

Archiving a project stops Lyraflow accepting events for it and nothing else. Its data is untouched, every report still works, retention still applies, and restoring it is one click. Events sent while it is archived are refused, not queued, so they do not arrive later. Renaming never changes the slug — the slug is what lyraflow commands address a project by, so a rename would otherwise break scripts silently.

Deleting a project destroys it. Every event, person, trait and report, in both databases, plus the project row itself — and unlike archiving there is no way back short of a backup. Deleting asks you to type the project's slug, from Settings and from the CLI alike, because nothing else about the action is reversible.

It runs as a background job rather than a single request: ClickHouse holds a project's events across partitions in three tables and two more that need asynchronous mutations, which takes minutes on a large project. Confirming stops Lyraflow accepting events for the project, then the teardown waits for the last in-flight events to drain before it starts — about a minute on a default install, because each project's row is cached in memory for that long and a teardown that raced it would drop partitions those events were still landing in. Then it tears ClickHouse down, confirms nothing is left, and only then removes the project from Postgres — in that order, so a half-finished delete can be retried rather than leaving data nothing will ever sweep again. Settings shows the progress; lyraflow projects deletion get <id> reports the same thing, and lyraflow projects deletion retry <id> resumes one that gave up.

Volunteering the limit: that is the whole UI. A person profile exists, but there is no People list — nothing browses or searches persons, so the lookup box above only helps when you already hold an id, and only when that id belongs to someone identify() has bound. Reach anyone else the way the rest of this document shows, over the HTTP API or the CLI.

The funnel screen's per-step people panel is backed by POST /v1/funnels/:id/people (see Funnels below) — the same bounded member list Segments uses, traits and all. It opens a person profile from there now, same as Segments and the Feed do. The CLI has not caught up to this yet: lyraflow funnels dropoff still only walks the dropped population, so reading who reached a step is UI- and API-only for now.

Two separate websites, a marketing site and the app behind it, staging and production: each of those is a project, and one install carries all of them. Run create-project once per site.

docker compose exec lyraflow node packages/cli/dist/index.js create-project "Acme Store"
docker compose exec lyraflow node packages/cli/dist/index.js create-project "Acme Docs"

Each call prints its own write key and server key. Names must be unique after slugification (Acme Store → acme-store), and running it twice with the same name is refused with a message saying so rather than a database error.

No request to Lyraflow ever names a project. There is no project id in any path, no ?project= parameter, and no --project flag on the CLI. The key you present is the selection:

So switching projects means switching keys, and nothing else:

LYRAFLOW_SERVER_KEY=$STORE_KEY lyraflow stats --since 24h
LYRAFLOW_SERVER_KEY=$DOCS_KEY  lyraflow stats --since 24h

lyraflow snippet follows the same rule — it prints the install block for the project whose server key it authenticated with, so run it once per project and paste each result on its own site.

Separation is in the storage layout, not a filter applied at query time. The events table is partitioned and ordered by project first, and every table in Postgres — identity bindings, aliases, segments, saved views, ingest counters, deletion requests — carries a project foreign key. A segment id or person id belonging to another project answers 404, never 403.

Three of those are worth stating plainly rather than leaving to be discovered:

LYRAFLOW_ALLOWED_ORIGINS is one list for the whole install. It is a server env var, not a project column — on the Compose stack, a line in .env that the lyraflow service's environment: block passes through. Unset — the default — every origin is allowed and a second site needs nothing. But if you have set it, every domain you instrument must appear in that one list (https://acme.example,https://docs.example), because creating a project does not extend it. The symptom of forgetting is a site whose events never arrive while its snippet looks perfectly correct: the browser's CORS preflight is refused before any request reaches ingest, so nothing is rejected, dead-lettered or counted anywhere you would think to look. Because that silence looks the same as a variable that never reached the server at all, the boot log states which of the two you have — see When the allowlist does not take effect.

The ingest buffer is one buffer, not one per project. It holds 100,000 rows by default (LYRAFLOW_BUFFER_MAX_ROWS), and it is shared. A burst on your busiest site can push the buffer to its limit and cause events from a quiet one to be throttled. A per-project quota bounds how much a project may accept in a month; it does not reserve capacity for it in the moment.

A backup is per install. backup.sh and restore.sh operate on both databases whole. There is no way to back up, restore, or move one project on its own.

This is the consequence most likely to be discovered late, so decide it before you instrument anything.

Identity bindings and person aliases are keyed by project. The same user_id in two projects is two unrelated people. Calling identify('user-42') on both of your sites produces two separate profiles, with separate event histories, that no query joins and no merge can combine. A person who signs up on one site and later reads the other is two visitors, and Lyraflow will never tell you they are the same human — not because the join fails, but because it is never attempted.

That is the right model when the sites are genuinely separate products. It is the wrong one if you want to answer "did the docs visit lead to the signup?"

Use one project, and put the site on every event as a property:

lyraflow.init({ writeKey: 'wk_...', host: 'https://analytics.example.com' })
lyraflow.track('signup', { site: 'store' })

Identity then works across both — one user_id is one person, and their journey spans the sites — and segments filter on site like any other property. What you give up is everything in the "per project" column above: one retention setting, one quota, one server key that reads both sites, and a site filter you must remember on every query, since forgetting it silently returns both.

Neither choice can be changed later without re-ingesting, because it decides how identity was resolved at write time. Separate products: separate projects. One product across several domains: one project.

lyraflow projects list
lyraflow projects delete <slug> [--yes] [--queue]
lyraflow projects deletion get <id>
lyraflow projects deletion retry <id>

delete asks you to type the slug before it does anything. --yes skips the prompt for scripts; without it, a non-interactive stdin refuses rather than hanging. By default the CLI performs the teardown itself, so it works on an install whose server is stopped; --queue leaves it for the running server.

It also pauses before starting, and says so. Lyraflow caches each project's row in memory for a minute, so for that long after you confirm, a running server can still be accepting events for the project out of a cache that has not heard about the deletion — and a teardown that started immediately would drop partitions those events are about to land in. The command waits that window out first. On a default install that is about a minute.

When a deletion fails. A teardown that keeps failing stops being retried after five attempts and reports failed, with the reason in deletion get. The project is then in a half-finished state: it accepts no events, it is gone from every screen but Settings, and whatever survived the teardown is still in ClickHouse — where retention keeps sweeping it, so it is not invisible. deletion retry <id> puts the request back in the queue and the teardown starts again from the top, which is safe to repeat: every step of it is predicated on the project and dropping something already dropped does nothing.

• No cross-project read. No endpoint aggregates projects, so an "all my sites" total does not exist in the API. Getting one means querying ClickHouse directly, or calling each project in turn and adding up.
• One project per page. The browser SDK keeps a single configuration on window.lyraflow; calling init() again reconfigures it from scratch rather than adding a second destination. One page cannot report to two projects at once.

Ingest listens on port 3000. /v1/track, /v1/page, /v1/identify and /v1/batch all authenticate with the write key in the x-lyraflow-write-key header.

/health (liveness), /ready (readiness), and /metrics (Prometheus text format) are also served, and are not authenticated. Neither are GET /v1/shared/:token and POST /v1/shared/:token/tiles/:index/run, which serve a shared dashboard to whoever holds its link; see Sharing a dashboard.

Server-key authenticated (x-lyraflow-server-key), unlike every endpoint above. Returns {"name", "slug", "write_key"} — the project's own identity, including the write key, which create-project otherwise prints only once and nothing else serves. This is not a widening of what the server key can already do: it is a secret, hashed at rest and unrecoverable, that authenticates every read path in this API — a caller holding it can already read every person, event and segment in the project, so handing back a value that ships unhidden in the browser bundle of every instrumented page changes nothing about what that caller can reach. lyraflow snippet (see packages/cli/README.md) is the intended way to use this endpoint: it prints a paste-ready install snippet with the write key already filled in, rather than a caller reading this response by hand. lyraflow snippet --rotate rotates the key first and prints the snippet that carries the new one.

Server-key authenticated. Replaces the project's write key and returns the new one: {"write_key", "previous_write_key_expires_at"}. The body is optional and takes {"grace_hours"}, an integer from 0 to 720 (default 24): for that long the key being replaced keeps working, so pages still serving the old snippet keep collecting while their caches turn over. 0 is a hard swap. There is only ever one previous key — rotating again inside the grace retires the older one immediately.

Once the grace ends, a page still carrying the old key gets 401 invalid_write_key on its next flush and the SDK stops sending for the life of that page, silently apart from one console warning; that is the browser SDK's own rule for 401, documented under Responses. Lyraflow caches each key's project for a minute, so a retired key can be accepted for up to a minute past its expiry by a server that looked it up just before — the same window lyraflow projects delete waits out.

Rotation is the remedy for a leaked write key. It is not a remedy for a leaked server key, which is hashed at rest and cannot be rotated in place; that remains a new project.

Also server-key authenticated. Body is {"retention_months"}, {"monthly_event_quota"}, or both — this is what the Web UI's Settings screen calls, and it is the only API surface documented under Retention and Quotas below; there is no longer a raw SQL statement to run for either. A field's absence means "leave it alone"; it is not the same as sending it explicitly. monthly_event_quota: null sets unlimited; omitting the key entirely changes nothing about the existing quota. Sending neither field is a 400. retention_months is 1–120, matching the column's own check constraint; monthly_event_quota is a positive integer or null — 0 is rejected rather than accepted and silently misread as a limit, since 0 is what isOverQuota treats as "no limit configured" and refusing it here is cheaper than that ambiguity reaching ingest. Returns the row's current {"retention_months", "monthly_event_quota"} on 200, and invalidates the 60-second project cache the retention worker and the ingest quota check both read from, so a new limit is in force immediately rather than up to a minute later.

Server-key authenticated. Returns the active project's counters for the current calendar month — {"month", "events_accepted", "events_rejected", "events_throttled", "events_bot", "monthly_event_quota"} — all zero for a project with no row yet this month, which is the ordinary state for a brand-new one. events_bot counts events dropped as crawler traffic and is reported apart from events_rejected (malformed input), because a large rejection count means the integration is broken and a large bot count does not. This is what the Settings screen's usage card reads.

Session-cookie authenticated, not server-key — these are instance-scoped ("which projects exist", "create one") rather than project-scoped, so a server key (which names one project) cannot answer them, and accepting one would let a single project's credential enumerate every other project on the install. In practice this means: the CLI's create-project and these routes are the only ways to create a project, and only an admin signed into the Web UI (or holding its session cookie) can list every project or create a new one over HTTP. GET /v1/projects returns {"projects": [...]}, wrapped rather than a bare array, with each entry shaped {"id", "name", "slug", "created_at", "retention_months", "monthly_event_quota", "disabled_at", "deleting_at"} and no key of either kind — the one response in this API that names every project at once, so a key leaking here would leak the whole install rather than one project. POST /v1/projects takes {"name"}, slugifies it the same way create-project does, and returns every field a GET /v1/projects entry carries ({"id", "name", "slug", "created_at", "retention_months", "monthly_event_quota", "disabled_at", "deleting_at"} — the UI appends this response straight to its in-memory list rather than re-fetching it) plus the two one-time keys, {"write_key", "server_key"} — the server key shown once, exactly as create-project prints it once, and never served again by anything.

PATCH /v1/projects/:id takes any of {"name"} and {"archived": true|false} and returns the updated entry; it never changes the slug. DELETE /v1/projects/:id takes {"slug"} in the body as the confirmation — a mismatch is 409 slug_mismatch, a project already being deleted is 409 already_deleting — and answers 202 {"id", "project_id", "status": "pending"}. The teardown runs in the background; GET /v1/project-deletions/:id reports pending, in_progress, completed or failed (with the last error). All four are session-cookie routes for the reason above. Retention and quota are per-project settings and live on PATCH /v1/project, the server-key route, not here.

What release this install is running, as {"version": "0.17.0"}. The Settings screen's Install card reads it, which is where an operator finds the number to quote into a bug report or to compare against the latest release.

Session-cookie authenticated, like the two routes above, and instance-scoped for the same reason — "what version is this" names no project, so a server key cannot answer it. It is deliberately not on /health: a version number tells a caller which published advisories apply to the install, and /health answers anything that can reach the port. Requiring a signed-in admin is the difference between an operator reading their own version and the internet reading it.

/v1/meta rather than /v1/version because the path is the expensive half to change later and the body is not. It carries one field today; a second is a decision about what an install discloses about itself, not a field appended in passing.

Sent directly from browser JavaScript (as opposed to a server-side SDK),

Every page view is stored under the event name $page, named or not. A name becomes the $page_name property rather than the event name, so "how many page views" is one query and page('signup') cannot be confused with track('signup').

It works that way for a storage reason as much as a naming one: event_name is a LowCardinality(String) column and the second key of the schema catalogue's sort order, while page names are unbounded by construction — one per URL. Under the old behaviour every page name also claimed its own property-key budget instead of all page views sharing one.

$ is reserved for Lyraflow. A property key you send that begins with $ is dropped, in both the string and the numeric map — dropped rather than refused, because ingest degrades rather than failing an otherwise valid event, and because the write key is public and refusing here would hand a visitor a way to make a site's events disappear. Everything else about the key is untouched: price_$ and a$b are ordinary keys and are stored.

Events already stored under a page name stay as they are. This changes what is written from now on, not history — so a project that used page(name) before this release has its old page views under their old names and its new ones under $page.

/v1/track, /v1/page, /v1/identify and /v1/batch are CORS-preflighted requests. By default Lyraflow answers that preflight for any origin — set LYRAFLOW_ALLOWED_ORIGINS (comma-separated) to restrict it. On the shipped Compose stack that means a line in .env, which the lyraflow service's environment: block passes through; anywhere else it is an environment variable on the server process. Confirm it took effect rather than assuming it did: the server states which mode it is in on every boot, so docker compose logs lyraflow | grep 'ingest CORS' answers it in one line. Getting ingest CORS unrestricted back after setting the variable means the value never reached the process — see When the allowlist does not take effect.

This is not a security boundary: the write key already ships in page source, and any non-browser client ignores CORS entirely. What it buys is tamper-evidence — stopping someone from pasting your write key on their own site and quietly polluting your data — not access control. Leave it unset and any origin is allowed, which is why a fresh install's tracking snippet works on first paste with no configuration.

Control characters in an event name or a property key are escaped when the event is written, not when it is displayed. A byte in the C0 range (0x00–0x1f), DEL (0x7f) or C1 (0x80–0x9f) is stored as a printable \xNN escape instead — so signup followed by an ESC is stored as signup\x1b, and what you read back can never itself be a terminal instruction, an HTML break or a log-line split.

This matters because a write key is public by construction — it ships inside the browser bundle and is readable in devtools on any instrumented page — so anyone who visits an instrumented site can choose these bytes. Escaping once, at ingest, is what stops every consumer from having to remember: the terminal output of the CLI, the web UI, exports, and whatever you build next.

The consequence to know about: a stored name with a control character in it does not match the bytes that were sent. The escape is chosen to be legible rather than lossy — \x1b tells you exactly which byte arrived, where dropping it would silently merge sign+newline+up and signup into one event — but if you are reconciling against your own logs, that is where a difference comes from. Property values are never rewritten, only names and keys: a value is your data, and a newline in a support message is content rather than a formatting accident.

A payload that declares one of Lyraflow's server-side SDKs is never filtered as a bot. That matters because the HTTP clients those SDKs use announce themselves as python-requests, okhttp or curl/ — indistinguishable from a scraper, and dropped as one before this field existed. The browser SDK does not send this field; an absent library is filtered exactly as before.

A server-side SDK is judged on the visitor agent it forwards. If a payload declares a server-side library and carries context.user_agent, that value is what the bot filter reads, and what device_type, os and browser are parsed from. So a backend passing through Googlebot/2.1 has that crawler filtered rather than recorded as a person — and a backend passing through a real visitor's agent stops recording an unknown device. A declared SDK that forwards nothing is exempt exactly as before.

context.user_agent is only consulted for a declared server-side library. Everything else — every browser payload — is judged and enriched from the request's own User-Agent header, as it always has been.

Bot filtering is data hygiene, not a security boundary. The write key ships inside the browser bundle, so any client can claim to be a server-side SDK — or simply send a browser's User-Agent, which has always been possible. What the filter removes is incidental traffic: crawlers, uptime monitors, link-preview fetchers. None of those declare a library.

Reading a forwarded agent does not widen that. It is consulted only for callers already exempt, so it can only ever cause more filtering, never less: there is no payload it lets through that could not already get through by declaring a library and forwarding nothing.

Property and trait values may be strings, numbers, booleans, or null. Numbers are stored in a numeric column and everything else as text, so 3 and "3" are not interchangeable. Nested objects and arrays are not supported. An event may carry up to 250 properties.

A boolean is stored as the text true or false, and there is no boolean type. That is more than a storage detail, because it means true and the string "true" are the same value once ingested — indistinguishable, with no way to tell them apart afterwards. Three consequences worth knowing before you instrument anything:

• /v1/schema/properties reports string for such a property, never boolean, so autocomplete cannot tell a caller the underlying value is two-valued.
• A segment filter must use the string form: is_subscribed = "true", not is_subscribed = true.
• "True", "1" and "yes" are three different values in that same column, from callers who each reasonably believed they were sending a boolean. Nothing rejects, warns, or reports the coercion, so an integration looks correct and the divergence only surfaces when someone builds a segment months later.

If you send booleans, send them consistently and expect to filter on "true".

A context field over its limit costs the whole event, not just that field: the event fails validation, is dead-lettered, and the response still says 202 — with rejected counting it. This is easier to hit than it looks; an OAuth callback URL carrying a redirect_uri clears 2048 characters without trying. The browser SDK truncates url, path, referrer and user_agent to these limits before sending, and warns on the console when it does. If you are calling the HTTP API directly, truncate them yourself.

Client clocks are frequently wrong, so an explicit timestamp is clamped to within 24 hours of server time.

• 202 — accepted. Also returned for malformed events and for events dropped as bot traffic, deliberately: a tracking endpoint that returns an error breaks the customer's site. Malformed events are recorded in the events_dead_letter table with the reason; bot traffic is simply counted and discarded. /metrics reports the accepted, rejected, throttled, over-quota and bot totals, so a 202 that stored nothing is still visible there.
• 401 — missing or unknown write key, or a project that has been archived, which answers {"error":"project_archived"}, or one being deleted, which answers {"error":"project_deleted"}. Both stop collection deliberately; the status is 401 rather than 403 because the browser SDK treats 401 as final and stops, while any other status is retried indefinitely by every bundle already deployed on a page.
• 429 with {"error":"quota_exceeded"} — the project has used its monthly event quota. No retry-after, deliberately: unlike a 503, this does not clear on its own shortly. It holds until the month rolls over or an operator raises the limit, so retrying is pointless. No project has a quota until an operator sets one; see Quotas under Operations.
• 503 with retry-after: 5 — the server is saturated or shutting down. Retry.
• 400 / 413 — malformed JSON, or a body over 1 MiB. Retrying will not help.

/v1/batch always answers with counts: {"accepted":n,"rejected":n,"throttled":n,"over_quota":n,"bot":n}. It returns 503 if the buffer saturates part-way through, with the counts describing how far it got; retry the whole batch. It never returns 429: a batch answers 202 with over_quota counting the events refused, because its contract is a body carrying the tally rather than a wholesale failure over one event. Those events are not worth retrying either. Read over_quota even when the status is 202 — for a batch, it is the only signal that events were refused. bot counts items dropped as bot traffic, the same outcome /metrics reports above. Single-event routes (/v1/track, /v1/page, /v1/identify) are unchanged: they still answer {"status":"accepted"} regardless of outcome and carry no such count.

Retry a 503 with the same message_id; it becomes the event's id (see Payload fields above). A replayed event is never double-counted as long as your query selects DISTINCT event_id (or otherwise aggregates by it) — a plain count(*) can see it as two rows, and ClickHouse's FINAL modifier does not rescue that when the retry omitted timestamp (see below). There is no query API yet, so this is on you: it is the same discipline any ClickHouse client of this table needs.

If you also send an explicit timestamp and replay it unchanged, the storage engine's own row collapse — deterministic under FINAL, eventual otherwise — removes the duplicate outright, so the retry costs no extra disk. Omit timestamp and the server stamps each attempt with its own receipt time; because that receipt time is part of the table's sort key, the two rows never collapse — deduplicated only by querying event_id yourself, correct but not free. Long-lived retry queues should send timestamp.

That collapse has a 24-hour shelf life, and it expires silently. The clamp above rewrites any timestamp more than 24 hours from server time to the boundary — a value computed from now, so it is different on every attempt. A queue that drains within 24 hours of the original event collapses as described. One that drains later does not: each retry is clamped to a different instant, lands as another permanent row, and is also misdated to the clamp boundary rather than when it happened. Nothing reports this. If your retry queue can outlive a day, aggregate by event_id and treat the engine collapse as an optimisation you do not have.

For a website or web app, @lyraflow/sdk-browser is a small script that calls /v1/track, /v1/page, /v1/identify and /v1/batch for you, and handles retries, an on-page queue, and (optionally) a consent gate. It is not published to npm and there is no CDN: the server serves its own bundle, so a self-hosted install never depends on infrastructure outside it.

Paste this before </head>:

<script>
  !function(){var l=window.lyraflow=window.lyraflow||{};l.q=l.q||[];
  ["init","track","page","identify","consent","reset","flush"].forEach(function(m){
    l[m]=l[m]||function(){l.q.push([m].concat([].slice.call(arguments)))}});
  }();
</script>
<script async src="https://analytics.example.com/lyraflow.js"></script>
<script>
  lyraflow.init({ host: "https://analytics.example.com", writeKey: "wk_live_…" })
</script>

The first block is a stub: it queues any call made before the async script finishes loading, so a track() fired the instant the page renders is never lost to a race with the network. init is queued the same way as every other method — the third block usually runs long before the async script has loaded, which is exactly why init has to be in the stub's method list. The moment the real script loads it replaces the stub on window.lyraflow and takes the queue with it, running the queued init first whatever order the calls were made in. On a repeat visit the cached script can run before the third block; the queue is then held until that init arrives, and drained by it. Either way nothing queued is lost. Replace both occurrences of https://analytics.example.com with your own Lyraflow host, and writeKey with the wk_… key from Getting started above — the same one your server-side calls already use. Or skip the substitution entirely: lyraflow snippet (see packages/cli/README.md) prints this exact block with your project's own host and write key already filled in, plus which event names have actually arrived, so you can tell "installed" from "firing" without opening a browser.

The bundle is served by the app itself at two paths, unauthenticated (a <script> tag has no way to send a header):

Both paths are served gzipped to any client that accepts it, by the app itself — putting a compressing proxy in front is a valid thing to do, but it is not something you have to do to avoid shipping three times the bytes.

Put /lyraflow.js in your script tag. The versioned path is cache-busting, not pinning, and a script tag must not use it. A server only serves the versioned path for the version it is currently running, so upgrading makes the previous one answer 404 — naming the version it does serve, and telling you this. That failure is quiet in the worst way: browsers holding the old bundle keep working from cache for up to a year, so data goes on arriving while every new visitor silently collects nothing.

The versioned path exists so an upgrade cannot be served a stale cached bundle, not so a site can freeze one. There is no way to pin an SDK version against a server that has moved on; if you need that, pin the server to a release tag.

If the sibling package was never built into your image, both paths answer 503 rather than taking the rest of the server down.

The write key is public by design — it is meant to sit in page source, same as in any curl example above. It can only write events. The server key must never appear here or anywhere in browser-shipped code: it merges identities, reads and deletes person data, and runs segment queries — see Identity resolution, Segments, and Privacy below for everything it gates.

init() must be called once, before anything else. Every other method is silently dropped (and logs a console warning) if called first.

lyraflow.init({
  host: 'https://analytics.example.com',
  writeKey: 'wk_live_…',
  cookieDomain: '.example.com', // optional; auto-detected if omitted, see below
  requireConsent: false,        // optional; default false, see Consent below
  autoPageView: true,           // optional; default true — fires one page() at init, see Single-page apps below
  debug: false,                 // optional; default false — verbose console.debug logging
})

lyraflow.track('signup', { plan: 'trial', seats: 3 })

lyraflow.page()            // stored as $page, with no $page_name
lyraflow.page('Pricing')   // stored as $page, with $page_name = "Pricing"

lyraflow.identify('user-42', { plan: 'trial' })

lyraflow.consent(true)   // or false — see Consent below

lyraflow.reset()   // e.g. on logout: flushes, then rotates to a fresh anonymous id

await lyraflow.flush()   // e.g. before a manual redirect the browser's own unload handling won't catch

Events are queued in localStorage and sent in batches to /v1/batch (see The ingest API for that endpoint's own semantics), on a timer and again on page unload using fetch's keepalive option, so a tab closed mid-batch still delivers what was already queued.

Off by default (requireConsent: false): the SDK starts sending immediately, the same as any other analytics snippet. Set requireConsent: true and it starts in a pending state instead — nothing touches a cookie, localStorage, or the network until lyraflow.consent(true) is called. (One exception: if the browser already signals Do Not Track or Global Privacy Control, requireConsent: true starts the gate refused outright, without waiting for a call. With requireConsent left off, neither signal is read at all — that compliance decision is left entirely to you.) Anything tracked while pending is held in memory (not persisted) and released once consent is granted; lyraflow.consent(false) discards it and stops the SDK from sending anything further.

A refusal cannot be remembered by the SDK. Persisting "this visitor said no" would itself mean writing a cookie or localStorage entry — exactly what a refusal declines. Your application owns that choice: store it however you already store consent decisions, and pass the outcome back in on the next load (requireConsent: false once you know they said yes, or call lyraflow.consent(false) again before anything else runs if they said no).

The CORS preflight restriction described in The ingest API applies here too, since this is exactly what triggers it: the same LYRAFLOW_ALLOWED_ORIGINS env var, and the same limit. It stops someone from quietly reusing your write key on a different origin without you noticing — it is not a security boundary, because the write key already ships in page source and any non-browser sender ignores CORS entirely.

Setting LYRAFLOW_ALLOWED_ORIGINS somewhere the server never reads it fails silently and in the permissive direction: nothing errors, the stack comes up healthy, and every origin is still allowed. There is no outward difference between that and a working allowlist until somebody tries the thing the allowlist was meant to stop.

So the server says which mode it booted in, every time:

docker compose logs lyraflow | grep 'ingest CORS'

• ingest CORS restricted to 2 origin(s) … — it took effect, and the line names the origins it parsed.
• ingest CORS unrestricted … — it did not. Every origin is allowed.

The usual cause of the second line is Compose. .env alone is not enough unless the variable is also named in the environment: block of the lyraflow service — Compose uses .env for substitution inside the compose file and passes the container only the variables that block names. The shipped docker-compose.yml names this one, so a plain .env line works on a stock install; a compose file predating that, or a hand-edited one, does not. Check what actually reached the container:

docker compose exec lyraflow env | grep ALLOWED_ORIGINS

Empty output there, with the value present in .env, is exactly this bug.

The same silence applies to a value that did arrive but does not match: origins are compared exactly. https://example.com and https://www.example.com are two different origins, http:// and https:// are two different origins, and a trailing slash or a port that the browser does not send makes an entry match nothing. A blocked preflight is not rejected, dead-lettered, or counted anywhere — so if one instrumented site goes quiet while the others keep reporting, compare its entry against the Origin header the browser actually sends, character for character.

The SDK does not patch history.pushState or listen for route changes, and autoPageView does not change that: its one automatic page() call fires once, on this hard load, and never again for the life of the tab. A visitor who navigates client-side through five routes without a full reload produces exactly one page view unless you call lyraflow.page() yourself after each client-side navigation completes.

Lyraflow stitches a device's anonymous activity to the person it belongs to, and lets you merge two people that turn out to be the same one. Filtering and segmentation are built on top of it — see Segments below.

Send /v1/identify with both anonymous_id and user_id to bind the device to the person from that moment on:

curl -i http://localhost:3000/v1/identify \
  -H 'content-type: application/json' \
  -H "x-lyraflow-write-key: $LYRAFLOW_WRITE_KEY" \
  -A 'Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/131.0.0.0 Safari/537.36' \
  -d '{
    "message_id": "3fa5e3fd-3c8b-4b8b-9b8e-6e3f9e5b8a01",
    "anonymous_id": "visitor-1",
    "user_id": "user-42",
    "traits": { "plan": "trial" }
  }'

The first time a device is bound, every event ever recorded under that anonymous_id — before this identify call and after it — resolves to that person, not just events going forward. If the device is later bound to a different person (a shared computer, a re-identified session), the timeline splits at that second identify call's own timestamp: events before it keep the first person, events from it onward follow the second. Resolution always follows the event's own (clamped) timestamp, never the time the identify request happened to arrive at the server.

That time-split describes how an event is resolved to a person: it is the rule applied row by row to the events table, and it is what a query over those events sees. It is not how GET /v1/persons/:id counts a profile — that read takes a simpler union over every id, with no timestamp condition, and on a shared or rebound device the two deliberately disagree. Reading a person below states exactly how.

Sizing note: every identify with an anonymous_id writes a row. That includes the repeat identify a logged-in browser typically sends on every page load. Repeats are not deduplicated: if you omit timestamp, each call is stamped with server receipt time, so no two land on the same instant and nothing collapses them. At 100k identified pageviews/day that is 100k rows per day in Postgres' identity_bindings, growing without bound, and each row is also carried into the ClickHouse identity dictionaries — which reload in full every 5–15 seconds. If you send high identified volume, expect this to be the fastest-growing table in your Postgres, and watch dictionary reload time alongside it.

This is a known cost, not an oversight. A write-side suppression (skip the insert when the device is already bound to this person) was built and then reverted: it is not safe against a late, out-of-order identify, which can silently and permanently hand one person's later activity to another. Correctness won. A safe fix belongs in the range derivation rather than the write path; see packages/server/src/identity/bindings.ts for the full reasoning and the reproduction.

Practical mitigation today: call identify once per session rather than once per page view. Alternatively, send a stable explicit timestamp for repeats of an unchanged binding — an identical (anonymous_id, user_id, timestamp) triple collapses onto the existing row and adds nothing. A timestamp that advances on every call does not help; it is the repetition, not the presence, of the value that collapses the write.

Keep that stable value inside the 24-hour clamp window. Bindings are written at the event's clamped timestamp, so a fixed value — a session start time, say — stops collapsing once it is more than 24 hours old: the clamp rewrites it to a boundary computed from the current time, which moves on every call, and each repeat writes a fresh row again. A session pinned at login and still open two days later is the ordinary way to hit this. Re-pin the value at least daily, or use the once-per-session call, which has no such expiry.

POST /v1/alias merges two known people — an id migration, a duplicate signup — under the server key, not the write key: aliasing mutates identity for the whole project, so it must not be reachable with the public, browser-shipped key.

curl -i http://localhost:3000/v1/alias \
  -H 'content-type: application/json' \
  -H "x-lyraflow-server-key: $LYRAFLOW_SERVER_KEY" \
  -A 'Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/131.0.0.0 Safari/537.36' \
  -d '{ "from_user_id": "user-42-old", "to_user_id": "user-42" }'

Answers 200 with {"status":"merged"}, or {"status":"noop"} if the two ids already resolve to the same person. Aliasing is not reversible — there is no unalias, and merging A into B and then B into A lands on noop rather than undoing the first merge. 400 for a missing or empty from_user_id/to_user_id; 401 for a missing or invalid server key. 503 with retry-after: 5 — the merge runs in a SERIALIZABLE transaction, so two merges touching the same alias group at the same moment can make Postgres abort one of them (40001); the server answers 503 rather than pretending the merge happened. Retry the identical request — it is idempotent, and a merge that already succeeded answers noop.

GET /v1/persons/:id returns one person's stitched profile — also server-key only:

curl -i "http://localhost:3000/v1/persons/user-42" \
  -H "x-lyraflow-server-key: $LYRAFLOW_SERVER_KEY" \
  -A 'Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/131.0.0.0 Safari/537.36'

{
  "person_id": "user-42",
  "ids": ["user-42", "visitor-1"],
  "devices": ["visitor-1"],
  "first_seen": "2026-08-01T12:00:00.000Z",
  "last_seen": "2026-08-06T09:30:00.000Z",
  "events": 14,
  "traits": {"plan": "pro"},
  "traits_num": {},
  "trait_total": 1,
  "traits_withheld": false
}

devices is the subset of ids that are device ids rather than ids you assigned — ids alone cannot say which is which, and the profile's identity header shows the two as different things.

traits, traits_num and trait_total are the same shape a segment member row already carries, capped the same way. traits_withheld: true does not mean this person has no traits — it means a deletion boundary exists for them, and a trait cannot be split at it. 004_person_traits.sql stores traits as argMax states with the timestamp discarded, so unlike an event a trait carries nothing to compare against suppressed_at; the read agrees with the export's own refusal (see Exporting a person below) rather than inventing a second answer, and returns empty maps with traits_withheld: true in that case instead of ones that merely look empty.

:id can be any id that has ever pointed at this person — a device id, the current canonical id, or an id since merged away by /v1/alias — and the response always reflects the current, merged state. This read goes straight to Postgres rather than through ClickHouse's identity dictionaries, so it sees a binding or a merge the instant it is written, with no refresh delay. 404 for an id nothing has ever recorded an event under; 401 for a missing or invalid server key.

If :id is a device id that has been bound to more than one person over time — a shared laptop — it resolves to the person bound most recently, and the profile you get back is that person's. There is no single right answer for a shared device, so this one is picked deliberately: it is the device's current owner.

This read is time-split, matching event resolution. first_seen, last_seen and events are computed the same way Binding a device to a person (above) resolves an event: a device that has been shared or rebound between two people splits at the rebind, and each profile counts only the events that fell inside its own window on that device. An event that carries a user_id of its own belongs to that person regardless of which device it sits on, even during a stretch where the device itself was bound to someone else. ids is unaffected by any of this — it stays the full set of ids ever associated with the person, with no timestamp condition, because there is no notion of an id being "in force" only some of the time.

A person's windows are their devices multiplied by however many times each was rebound, which has no fixed bound. Past 200 device windows the request is refused with 400:

{
  "error": "person_history_too_fragmented",
  "detail": "this person spans 214 device windows, above the limit of 200"
}

rather than silently widening the query to fit — widening a window is exactly how the old union behaviour would come back.

A segment is a filter tree. POST /v1/segments/preview runs one ad hoc, without saving it; POST /v1/segments and friends (below) save one so it can be named, re-run, and listed. Every segment endpoint is server-key only — the write key ships in browser JavaScript, and a segment's count and membership are aggregate information about everyone in the project.

curl -i http://localhost:3000/v1/segments/preview \
  -H "x-lyraflow-server-key: $LYRAFLOW_SERVER_KEY" \
  -H 'content-type: application/json' \
  -d '{
    "ast_version": 1,
    "filter": {
      "kind": "group", "op": "and", "children": [
        { "kind": "trait", "key": "plan", "operator": "=", "value": "trial" },
        { "kind": "behavior", "event": "import_started", "aggregate": "count",
          "operator": ">=", "value": 3,
          "window": { "kind": "last", "n": 7, "unit": "days" } },
        { "kind": "not", "child": {
          "kind": "behavior", "event": "invite_teammate", "aggregate": "count",
          "operator": ">=", "value": 1, "window": { "kind": "ever" } } }
      ]
    }
  }'

That reads as trial users who ran an import at least three times in the last seven days but never invited a teammate, and the response is:

{
  "person_count": 128,
  "warnings": [],
  "as_of": "2026-08-07T09:30:00.000Z"
}

as_of is the instant the count describes. Events become queryable within seconds rather than instantly, so a count is a recent answer, not a live one — the timestamp says which answer you got instead of implying it is current. A repeated preview of the same tree within a short window can be served from an in-process cache; a cache hit still reports the as_of of the request that actually computed it, never a fresher-looking timestamp than the count itself.

Add "include": ["members"] to get one bounded page of the people matching, alongside the same count:

curl -s http://localhost:3000/v1/segments/preview \
  -H "x-lyraflow-server-key: $LYRAFLOW_SERVER_KEY" \
  -H 'content-type: application/json' \
  -d '{ "ast_version": 1, "filter": { "kind": "trait", "key": "plan", "operator": "=", "value": "trial" }, "include": ["members"] }'

{
  "person_count": 128,
  "warnings": [],
  "as_of": "2026-08-07T09:30:00.000Z",
  "members": [
    { "person_id": "user-42", "first_seen": "2026-07-01T00:00:00.000Z",
      "last_seen": "2026-08-06T09:30:00.000Z", "identified": true,
      "country": "US", "region": "CA", "city": "San Francisco",
      "device_type": "desktop", "os": "macOS",
      "browser": "Chrome", "referrer": "https://google.com",
      "utm_source": "google", "utm_medium": "cpc", "utm_campaign": "launch",
      "traits": { "plan": "trial", "company": "Acme" },
      "traits_num": { "seats": 12 },
      "trait_total": 3 }
  ],
  "next_cursor": "eyJ...base64url...",
  "window_exhausted": false
}

Each member row carries person_id, first_seen, last_seen, identified, and the ten context fields (see Node types below) at their current value — not the first_touch one, even for the four fields that are only ever recorded as first-touch (see the caveat below context for why latest reads the same value there).

identified says whether that person has ever been identify()d, as opposed to reached only through the device fallback: true when at least one of their events carried a real user_id, false when their person_id is an anonymous_id that nothing has ever tied to a person. The two are indistinguishable as strings, and the difference is what decides whether there is a profile behind the row: GET /v1/persons/:id answers 404 for the unidentified one, for the reason Privacy: deletion and export gives below.

It also carries that person's traits, split by type the way they are stored: strings in traits, numbers in traits_num. At most 50 of each are returned, in key order — a per-person map is of arbitrary size, and a hundred rows of one would be unbounded by construction. trait_total is how many that person actually has, so a truncated map is visible as truncated rather than read as complete.

Pages are 100 rows, ordered last_seen descending. Pass the previous response's next_cursor back as cursor to continue:

curl -s http://localhost:3000/v1/segments/preview \
  -H "x-lyraflow-server-key: $LYRAFLOW_SERVER_KEY" \
  -H 'content-type: application/json' \
  -d '{ "ast_version": 1, "filter": { "kind": "trait", "key": "plan", "operator": "=", "value": "trial" }, "include": ["members"], "cursor": "eyJ...base64url..." }'

next_cursor is null once there is no further page, or once the walk has served 1,000 rows (10 pages) — window_exhausted: true marks that second case specifically, so a caller can tell "you have seen everyone" apart from "there is more, but not through this endpoint". This is a preview of a population, not an export of it: there is no way to page past 1,000 rows, and no point-in-time snapshot of membership is kept — re-running the same segment later can return a different set as people's data changes. A cursor is opaque, signed for the project that issued it, and rejected with 400 if tampered with, built by hand, or replayed against a different project's server key.

There are five families, and which ones a condition may use depends on what it is comparing — a country is never a flag, a first_seen is always set.

between takes exactly two values; the presence and boolean families take no value key at all, and sending one is ignored rather than refused.

Four things about these that are easy to get wrong, and that Lyraflow has picked a side on:

• Text matching is case-insensitive; = is not. path contains checkout finds /Checkout. Equality was case-sensitive before these operators existed and stays that way, because changing it would silently reinterpret every segment already saved. The folding is ClickHouse's lowerUTF8, which handles accented Latin and Greek but not Turkish dotted İ — so contains istanbul does not match İSTANBUL.
• is_set is not != "", and that is why it exists. A property or trait that was never sent reads back as the empty string, exactly like one that was sent empty. No comparison can separate them; is_set can.
• Negations include people who have nothing there. plan not_contains pro matches someone with no plan at all, as does not_in_last. If you mean "has a plan, and it is not pro", combine it with is_set.
• is_true / is_false match the stored text "true" / "false", which is what ingest writes for a JSON boolean. They do not treat "1", "yes" or a non-empty string as true.

A relative date is resolved when the segment runs, not when it is saved, and a trait or property is read through a best-effort date parse — a value that is not a date is simply not in the window.

A behavior — and a funnel step, which uses the same shape — may carry up to ten where predicates. They are ANDed together and applied to each event BEFORE it is aggregated, so they say which events count, not what the person is like.

A funnel step shares more than that shape with a behavior now: it may also carry a whole audience condition tree — the same FilterNode grammar this section documents, gating which person may advance past the step rather than which event counts. See Funnels above for the distinction and the per-funnel cap on it.

A predicate names one of two things, and it says which:

{ "kind": "behavior", "event": "$page", "aggregate": "count",
  "operator": ">=", "value": 1, "window": { "kind": "last", "n": 30, "unit": "days" },
  "where": [
    { "property": "plan", "operator": "=", "value": "pro" },
    { "source": "attribute", "attribute": "utm_campaign", "operator": "=", "value": "spring" }
  ] }

• A property predicate reads a key from the event's own properties — whatever the caller put there. This is the default: a predicate with no source is a property predicate, which is why every segment written before attributes existed still means exactly what it meant.
• An attribute predicate reads a column of the event itself. Set "source": "attribute" and name one of path, url, referrer, utm_source, utm_medium, utm_campaign, utm_term, utm_content, device_type, os, browser, country, region, city. Any other name is a 400. Values are strings, because every one of those columns is a string.

Nothing is inferred from the name. A property genuinely called path is possible — properties comes from the caller's own bag and path from context — so { "property": "path" } reads the property and { "source": "attribute", "attribute": "path" } reads the column, whichever one your events happen to carry.

A property predicate's VALUE TYPE chooses which map it reads. Ingest puts a finite number in properties_num and everything else in properties, and a predicate reads one or the other: {"property": "results", "value": 21} reads the numeric map, {"property": "results", "value": "21"} reads the string one. They are different questions, and the wrong one matches nothing rather than erroring — so send the type you sent at ingest. GET /v1/schema/properties returns a value_kind per key if you need to look it up; the web UI reads it and sends the matching type for you.

An attribute predicate is not a context condition, and the difference is the question each answers. A context condition is about the PERSON: it matches whoever was acquired through a campaign, whatever they later did. A where predicate is about the EVENT: it matches people who did this thing from that campaign. "Viewed pricing at least once in the last 30 days, from the spring campaign" is the second, and cannot be written as the first.

A lifecycle bound with no timezone is UTC. 2026-08-01T10:00 means 10:00 UTC, and a bare 2026-08-01 means midnight UTC. Send an instant with a Z or an offset if you want to be explicit — both are accepted and honoured — but a value with neither is never read in the server's local zone.

That is worth knowing if you have bounds stored from before this release: they used to be resolved with the server's own timezone, so the same segment meant a different instant depending on where the process thought it was, and moving a deployment between zones silently changed which people it matched. Those bounds now mean UTC. If your server was not on UTC, such a bound has shifted by that offset — once, visibly, and the builder shows the instant it now names when you open the segment.

One caveat on context: referrer, utm_source, utm_medium and utm_campaign are recorded only as first-touch, because for an acquisition attribute the original value is the one that means something. A scope of latest on those four returns the first-touch value rather than a different one. The other six fields record both.

ast_version is required and must be 1. A tree saved today carries the version it was written with, so a later release can migrate it rather than silently reinterpret it.

warnings is advisory — the query still ran. Each entry names the node responsible by path, so a builder UI can point at it:

{
  "person_count": 4210,
  "warnings": [
    { "path": "filter.children[1]",
      "reason": "the `import_started` condition uses an `ever` window, which scans all history rather than a bounded window" }
  ],
  "as_of": "2026-08-07T09:30:00.000Z"
}

A filter tree is bounded, because the endpoint is reachable by anyone holding the server key:

Exceeding a tree limit is a 400 naming which one:

{ "error": "filter tree is nested deeper than 10 levels", "code": "depth" }

A malformed tree is also a 400, with a per-field path:

{
  "error": "invalid filter tree",
  "detail": [{ "path": "filter.value", "message": "`between` requires exactly two values; other operators require one" }]
}

A tree that is valid but too expensive to finish returns 422 — it exceeded the query's time or memory ceiling. Narrow a window, or drop an ever, and try again. 401 is a missing or invalid server key. A malformed or tampered cursor is a 400 with an error mentioning cursor.

A saved segment is a named, stored filter tree you can re-run without resending it, and see listed alongside your others. Create one with POST /v1/segments:

curl -i http://localhost:3000/v1/segments \
  -H "x-lyraflow-server-key: $LYRAFLOW_SERVER_KEY" \
  -H 'content-type: application/json' \
  -d '{ "name": "Trial power users", "ast_version": 1,
        "filter": { "kind": "trait", "key": "plan", "operator": "=", "value": "trial" } }'

{
  "id": 17,
  "name": "Trial power users",
  "ast_version": 1,
  "filter": { "kind": "trait", "key": "plan", "operator": "=", "value": "trial" },
  "stale": false,
  "last_count": null,
  "last_evaluated_at": null,
  "created_at": "2026-08-07T09:00:00.000Z",
  "updated_at": "2026-08-07T09:00:00.000Z"
}

The tree is validated against the exact same shape and cost limits as /v1/segments/preview — a 201 here is a guarantee it will also run cleanly later, not merely that it parsed. A duplicate name within the same project is a 409.

PATCH accepts name, or ast_version + filter, or both. Sending a filter clears the stored last_count / last_evaluated_at snapshot in the same statement, because a stored count describes the tree it came from; a rename-only PATCH leaves the snapshot untouched. A body that carries ast_version or filter at all but fails to parse as a valid tree is rejected with 400 and a field path, the same as a malformed body to POST /v1/segments — it is never treated as a rename-only request.

GET, PATCH, and DELETE on a segment id that does not exist, or that belongs to another project, both answer 404 — never 403, which would confirm the id exists. A non-numeric :id is a 400 naming invalid_segment_id, rather than a 503 from an unbound query parameter.

POST /v1/segments/:id/preview runs the stored tree — it accepts the same include/cursor body as the ad hoc preview endpoint and returns the same shape, minus warnings (nothing to warn about a tree that already saved cleanly) — and then records last_count / last_evaluated_at on the segment, whichever output mode you asked for:

curl -s -X POST http://localhost:3000/v1/segments/17/preview \
  -H "x-lyraflow-server-key: $LYRAFLOW_SERVER_KEY"
# {"person_count":128,"as_of":"2026-08-07T09:30:00.000Z"}

A row that predates today's AST or caps is marked, not hidden. If a stored tree no longer parses — written by an older build, or against a schema version this release no longer understands — GET/PATCH/POST .../preview on that one segment return 400:

{ "error": "stored filter tree does not parse under ast_version 1", "ast_version": 1 }

but GET /v1/segments never fails the whole list for one bad row. That segment appears with "filter": null, "stale": true so you can still see it, rename it, or delete it, while every other segment in the list renders normally — every listed segment carries stale (false for an ordinary one) so a client can check the one field regardless of which route the row came from.

GET /v1/schema/events and GET /v1/schema/properties list the event names and property keys a project has recorded — the raw source a segment builder's autocomplete can be built on. Both are server-key only, for the same reason as /v1/segments/preview: a project's event taxonomy describes its product, and the browser-shipped write key must not be able to read it.

Every event name is discoverable, including events that carry no properties at all. That was not always true, and the limitation is worth recording because upgrading is what fixes it: both endpoints read from event_schema, which was fed only by an ARRAY JOIN over each event's property maps — and an ARRAY JOIN over an empty map produces no rows, so an event with no properties registered nothing and was invisible to /v1/schema/events, not merely absent from /v1/schema/properties.

A third view now writes one row per event whose only job is to register the name. Existing events are not backfilled: a property-less name recorded before this release appears once the next such event arrives, which for a name your product still sends is the next time it fires.

/v1/schema/properties for an event with no properties correctly returns an empty list — the name is discoverable, and there is genuinely nothing to filter on.

curl -s http://localhost:3000/v1/schema/events?q=import \
  -H "x-lyraflow-server-key: $LYRAFLOW_SERVER_KEY"
# {"events":[{"event_name":"import_started","last_seen":"2026-08-01T00:00:00.000Z"}]}

curl -s http://localhost:3000/v1/schema/properties?event=import_started \
  -H "x-lyraflow-server-key: $LYRAFLOW_SERVER_KEY"
# {"properties":[{"property_key":"rows","value_kind":"number"},{"property_key":"source","value_kind":"string"}]}

limit above 100 is rejected with 400, not silently truncated.

Each event carries last_seen, the latest instant that event name was recorded, as an ISO-8601 timestamp — enough to rank an autocomplete by recency rather than alphabetically, which is what stops the list becoming useless once a project is a year old. There is still no frequency signal, because event_schema carries no counts.

Results are name-ordered, and limit is applied after that ordering. So a project with more event names than the cap gets the alphabetically first N, and can only re-rank within those — last_seen does not currently let you ask for the most recent 50 event names out of 500. Ordering server-side by recency would, and is the obvious next step; it is not the default today because it changes which rows every existing caller receives.

Otherwise deliberately thin: prefix vs. fuzzy matching, and ranking by frequency or name, are questions for whichever builder UI ends up consuming this — this ships the raw read those can be built on top of, rather than a guess at one of them.

Every segment above is built and run through the HTTP API directly, in JSON. There is no export of a segment's membership: the members endpoints are a bounded 1,000-row preview, not a way to pull an entire population out. There is no point-in-time membership — a saved segment stores its last count and when it was computed, not who was in it at that moment, so you cannot ask "who matched this segment last Tuesday". Membership is also not recomputed automatically on any schedule; a saved segment's snapshot only updates when you explicitly run it. Those are planned; none of them exist today.

A funnel is an ordered list of steps — "landed, clicked login, registered, paid" — and one question: how many people got through each one, and where did the rest stop.

Funnels are saved objects. You create one, give it a name, and re-run it over whatever date range you care about. There is a funnel screen in the Web UI too (see below) — this section documents the full HTTP API and the CLI, which is what that screen itself is built on.

curl -X POST https://analytics.example.com/v1/funnels \
  -H "x-lyraflow-server-key: $LYRAFLOW_SERVER_KEY" \
  -H 'content-type: application/json' \
  -d '{
    "name": "signup",
    "window_seconds": 604800,
    "steps": [
      { "event": "$page", "where": [{ "property": "path", "operator": "=", "value": "/" }] },
      { "event": "login_click" },
      { "event": "signed_up", "where": [{ "property": "method", "operator": "=", "value": "email" }],
        "audience": { "kind": "behavior", "event": "$page", "aggregate": "count", "operator": ">=",
          "value": 3, "window": { "kind": "last", "n": 30, "unit": "days" } } }
    ]
  }'

A step is one event, plus two independent things you can constrain about it. where narrows which occurrence of the event counts — a property of the event itself, exactly the shape a segment behaviour uses — { property, operator, value }, with the same operators a segment condition takes (see Operators) — so you write a predicate the same way in both places. Predicates matter more than they look: a page-view funnel is several $page steps that differ only by path.

audience narrows which person may advance past the step — a claim about them, not about the event. It is a segment FilterNode tree verbatim, the same grammar POST /v1/segments takes (see Node types below), and it is optional per step. A person who fails it is not removed from the report — they are still counted at the step they did reach, just not advanced past this one. That is the difference from the funnel's own segment_id: a person outside the funnel's segment never appears in the report at all, while a person who fails a step's audience still shows up, one step short. Both exist because those are different questions — "should this person be in this report at all" versus "does this person, having reached step 2, look the way step 3 requires before they can be counted at step 3."

A step's audience tree is capped like any segment tree, but there is also a funnel-wide cap: the behavioural conditions across every step's audience in one funnel may total at most 25 (MAX_FUNNEL_BEHAVIOR_NODES, packages/core/src/funnels/validate.ts). That covers the embedded audiences only — the tree behind segment_id is a separate segment, capped separately at 25 behavioural nodes of its own when it was saved — so one run's real worst case is up to 50 behavioural conditions, not 25. A trait-only audience costs nothing against that cap but still adds its own subquery, one per step at most — bounded by the eight-step ceiling above, not by MAX_FUNNEL_BEHAVIOR_NODES.

Two steps minimum, eight maximum.

A step can carry "optional": true. Absent means required — which is what every step was before this, so an existing funnel with no optional steps reports exactly what it always reported.

"steps": [
  { "event": "$page" },
  { "event": "signed_up" },
  { "event": "subscription_started" },
  { "event": "video_submitted", "optional": true },
  { "event": "subscription_canceled" }
]

Someone who skips video_submitted still counts at subscription_canceled — an optional step does not disqualify anyone from the steps after it. Conversion is measured over the required steps only.

An optional step branches off the last required step before it, not off whatever step precedes it in the definition — two optional steps back to back both branch from the same required step, not from each other. Its from_previous is a share of that branch point's population, not of the step written just above it. Its result carries optional: true, a skipped count — the people who reached the branch point and did not do this step inside the window — and a continued count: of the people who did reach this step, how many went on to the next required step through it. people is the leg into the step and continued is the leg out of it; the gap between them is this step's own drop-off. A required step's result carries none of the three.

The first and last steps cannot be optional. Step 1 defines entry — it is what bounds who enters within the range — and the last step defines conversion; making either optional leaves both undefined.

The funnel chart in the Web UI draws all of this as a flow diagram, not a stack of bars: the required steps form a spine, an optional step hangs off it as a branch, and the people counted in continued rejoin the spine at the next required step — a fork that rejoins, the same shape described above.

What the widths mean. Every node and every band is drawn on one scale, set by the number of people who entered. A given thickness means the same number of people wherever it appears, so bands are comparable to each other and to the nodes they touch, anywhere on the chart.

Two things follow, and both are the point rather than side effects.

The space under a node's bands is its drop-off. A node holding 800 people whose outgoing bands carry 500 of them leaves 300 people's worth of its edge empty, and that gap is drawn where the loss happened.

Bands can run past a node, and that means something too. Someone who does an optional step after a later step is counted on both legs leaving the step before it — genuinely on two paths, because the funnel cannot tell which came first. Where that happens the stack extends past the node's own edge, and the node's caption names the number: 3 counted twice. It is the same windowFunnel limit documented above under ordering, seen from the chart.

An earlier version scaled each node's bands to fill its edge exactly. The geometry always added up, at the cost of both readings above: a width meant something only against the one node it touched, and a node's edge was always fully covered — so a funnel that converts everyone drew as a solid rectangle with no space anywhere in it.

A funnel may have up to MAX_OPTIONAL_STEPS (2) optional steps, inside the same eight-step ceiling as before. Each optional step costs two extra windowFunnel chains, and both copy the SQL text of every condition before them — one measured shape at three optional steps compiles past ClickHouse's 262,144-byte max_query_size and fails outright, which is why the limit is 2 and not 3.

A funnel that compiles past that same limit some other way — enough where predicates or step audiences, even with two or fewer optional steps — is refused with a 400 before it ever reaches ClickHouse, naming what to remove: predicates, audiences, or optional steps. That cap bounds the failure; it does not fix it — #200 tracks compiling this down instead of capping it.

The limit worth knowing before you rely on this: an optional step counts any time after the required step before it and inside the window — including after a later step. Someone who cancels and then submits a video afterward is still counted as having done the optional step. windowFunnel reports a chain length, not the instants it matched at, so "step 4 happened before step 5" is not a question this can answer without a different query shape. That is also why the two bands leaving a branch point on the chart do not have to sum to the branch point's own count: someone who does the optional step after the required step it feeds into is counted on both legs leaving that branch point — once heading into the optional step, once heading straight past it on the required chain — the same order-blindness, seen from the chart instead of from /dropoff.

This is the part worth reading twice, because getting it wrong makes a funnel quietly report the wrong number.

• window_seconds belongs to the funnel. It is how long one person gets to finish once they have started. Maximum 30 days.
• since and until belong to the question, and are supplied per run, never stored. They bound who enters the funnel — a person enters by matching step 1 inside that range.
• A step's audience window belongs to the person, measured from now. Its last window (like a segment's) looks back from the moment the funnel runs, not from the run's since/until and not from when that person entered. Run the same funnel over an older range and a step's audience is still judging people against today, not against the range you asked about or the day they took step 1 — the Web UI's funnel builder says this on screen for the same reason it is said here.

Because those are different things, a run observes conversions past the end of the range: someone who entered an hour before until still gets their full window to finish, so the query reads on to until + window (or to now, whichever comes first). Without that, a funnel would report as failures people who simply had not finished yet.

That leaves one honest gap, and the response names it rather than hiding it. Someone who entered ten minutes ago has not had their seven-day window. They are counted in entered — dropping them would misstate the population — and also reported separately as partial_window_entrants, with a warning saying how many. They can still convert. If a recent funnel looks worse than you expected, that number is the first thing to check.

curl -X POST https://analytics.example.com/v1/funnels/3/run \
  -H "x-lyraflow-server-key: $LYRAFLOW_SERVER_KEY" \
  -H 'content-type: application/json' \
  -d '{ "since": "2026-08-01T00:00:00Z", "until": "2026-08-08T00:00:00Z" }'

Omit both and you get the last seven days.

For a range relative to now, send days instead of a since:

curl -X POST https://analytics.example.com/v1/funnels/3/run \
  -H "x-lyraflow-server-key: $LYRAFLOW_SERVER_KEY" \
  -H 'content-type: application/json' \
  -d '{ "days": 90 }'

Prefer days over a bare since for a relative range. They are not equivalent. since with no until leaves the server to fill in until from its own clock, which is later than yours by however long the request took to arrive, so the span you get is slightly longer than the one you asked for. A range may span at most 90 days, so "days": 90 is accepted and a since of 90 days ago is not. days cannot be combined with since or until — a body carrying both is refused rather than resolved by a precedence rule you would have to know about.

The response always echoes the range it actually used:

{
  "entered": 1284,
  "converted": 212,
  "conversion_rate": 0.165,
  "steps": [
    { "index": 1, "event": "$page", "people": 1284, "from_previous": 1, "from_start": 1 },
    { "index": 2, "event": "login_click", "people": 507, "from_previous": 0.395, "from_start": 0.395 },
    { "index": 3, "event": "signed_up", "people": 212, "from_previous": 0.418, "from_start": 0.165 }
  ],
  "partial_window_entrants": 96,
  "range": { "since": "2026-08-01T00:00:00.000Z", "until": "2026-08-08T00:00:00.000Z" },
  "as_of": "2026-08-08T09:31:02.000Z",
  "warnings": [ … ]
}

A step's people is everyone who reached at least that step. Both rates are given because deriving one from the other is a multiplication that is easy to get subtly wrong.

POST /v1/funnels/preview takes the same body plus a full definition and runs it without saving anything — for trying a funnel out before committing to it.

Every run also updates the funnel's cached summary — last_entered, last_converted, last_evaluated_at and last_range — which is what GET /v1/funnels returns so a list of N funnels renders without N scans.

last_range is the window those counts came from, as { "since": …, "until": … }, and it exists because the counts are meaningless without it: running a funnel over 90 days used to leave the list showing a 90-day rate with nothing to say it was not the seven-day default. Always render the rate beside both its range and its timestamp, never as a bare number.

It is null in two cases, and they are not the same: a funnel that has never run has null counts too, while a funnel summarised before ranges were recorded has real counts and no record of what they answer. Neither should be labelled with a guess.

All four are cleared together by a PATCH that changes steps, window_seconds or segment_id. A stored range describes the definition it was computed from just as much as the counts do.

• In order. Steps must happen in the order listed. Unrelated events in between are fine.
• Best attempt. Someone who abandoned on Monday and completed on Tuesday counts as converted. The window slides to find their best run through, so one bad start does not condemn them forever.
• Once. A person appears at exactly one step — the furthest they reached.
• As one person. Steps taken anonymously and steps taken after logging in belong to the same person, provided the device was identified (see Identity resolution).
• Not at all, if they asked to be deleted. The same suppression boundary every other read path enforces.

curl -X POST https://analytics.example.com/v1/funnels/3/dropoff \
  -H "x-lyraflow-server-key: $LYRAFLOW_SERVER_KEY" \
  -H 'content-type: application/json' \
  -d '{ "step": 2 }'

Lists the people who reached step 2 and went no further. Steps are numbered from 1, matching index in the run response. Paged with an opaque cursor, and bounded the same way the segment members preview is — 100 per page, 1,000 total. It is a preview of a population, not an export of it.

/dropoff predates /people below and is retained for compatibility, unchanged — its own response shape, its own cursor label, so a caller that already scripts against it never sees a difference. It is not two ways of doing one thing: /people is the general endpoint, and /dropoff is the one call it happens to always make (mode: "dropped").

On an optional step, /dropoff is refused with a 400 — skipping a step means never stopping there, so "stopped exactly here" is not a population an optional step has. The error points the caller at /people, where reached or skipped are the two readings that mean something.

curl -X POST https://analytics.example.com/v1/funnels/3/people \
  -H "x-lyraflow-server-key: $LYRAFLOW_SERVER_KEY" \
  -H 'content-type: application/json' \
  -d '{ "step": 2, "mode": "reached" }'

mode is required — there is no default. reached (level >= step, everyone who got at least that far) and dropped (level = step, everyone who stopped exactly there) differ by a factor of three on a real funnel, and whichever way a default fell, the other reading is what a caller would get by accident.

A third mode, skipped, exists for optional steps only — the people who reached the required step this one branches off and did not do this step inside the window, the same count the run response's skipped field gives for that step. Asking for mode: "dropped" on an optional step is refused with a 400 (code: "mode"): skipping it means never stopping there, so that reading is not a population an optional step has. Asking for mode: "skipped" on a required step is refused the same way — nobody can skip a required step, so the mode means nothing there.

reached is the population behind the number on the chart: step N's people in the run response above is exactly this count, at whatever instant the run was taken. dropped is deliberately a different, usually smaller, number — the same population /dropoff lists.

One case looks wrong and is not: at the funnel's last step, dropped is not empty. A level means "got no further than this level" (see How a person is counted above), so someone who converted all the way through is at the last step's level too — there is no level past it to place them at instead. mode: "dropped" on the final step therefore returns the same people mode: "reached" does. This is not new behavior particular to /people — /dropoff has always answered the final step this way — /people just makes it visible as a "dropped" label sitting next to someone who converted.

The response:

{
  "members": [
    { "person_id": "user-42", "first_seen": "2026-07-01T00:00:00.000Z",
      "last_seen": "2026-08-08T09:20:00.000Z", "entered_at": "2026-08-08T09:12:00.000Z",
      "identified": true,
      "country": "US", "region": "CA", "city": "San Francisco", "device_type": "desktop",
      "os": "macOS", "browser": "Chrome", "referrer": "https://google.com",
      "utm_source": "google", "utm_medium": "cpc", "utm_campaign": "launch",
      "traits": { "plan": "trial" }, "traits_num": {}, "trait_total": 1 }
  ],
  "person_count": 212,
  "range": { "since": "2026-08-01T00:00:00.000Z", "until": "2026-08-08T00:00:00.000Z" },
  "as_of": "2026-08-08T09:31:02.000Z",
  "next_cursor": "eyJ...base64url...",
  "window_exhausted": false
}

Each row is a segment member row plus entered_at, identified included — see Retrieving members, not just the count above for what that field means and why a caller wants it.

traits can be empty on a row that clearly has traits, and that is a known limitation rather than a bug in your data. A funnel resolves each person at their own event's timestamp, because a funnel is a claim about what someone did and when — an event has to belong to whoever owned that device at the time. Traits are resolved at the current instant, because a trait carries no event time and "this person's traits today" is what a trait is. For a device that was rebound to a different person between the funnel event and your request, those two readings name different people and the row comes back with no traits.

It cannot show you someone else's traits. Both sides derive the person the same way, so a disagreement drops the traits rather than attaching the wrong ones — a blank cell, never a wrong one, and never a privacy problem. Read a person's traits from GET /v1/persons/:id if you need them for certain.

person_count is its own query, taken at the same as_of the page is — never the run's cached step number, because a run and a /people call can land at different instants, and a stale count printed beside a fresh page is exactly the kind of mismatch that makes both look wrong. Paged and bounded the same way /dropoff and the segment members preview are: 100 per page, window_exhausted: true once 1,000 rows have been served, and a cursor that only replays against this route, never /dropoff or a segment walk.

There is no CLI command for /people yet — see From the CLI below. The funnel screen in the Web UI does have it: click a step in a saved funnel and a Reached/Dropped toggle opens beneath the chart, each option carrying its own count.

lyraflow funnels list
lyraflow funnels run signup --since 7d
lyraflow funnels run signup --since 7d --json
lyraflow funnels preview --file signup.json
lyraflow funnels dropoff signup --step 2

Funnels are addressed by name. With --json, the step table goes to stdout as one JSON object per line and everything else — the summary and any warnings — goes to stderr, so a pipeline stays parseable and a human still sees the caveats.

There is no time-to-convert: you get how many people reached each step, not how long it took them. There is no breakdown — you cannot split a funnel by campaign, device or country, though a trend can be split that way (see Trends). There is no strict mode, where a later step appearing early breaks the chain. Path analysis is not here either. All are planned; none exist today. Retention grids and trends do now exist — see below.

A funnel is computed on demand every time you run it, with nothing cached and nothing precomputed. A wide range over a high-volume event like $page is a large scan, and the response will warn you when it is about to be one.

How many of this event over time, and how does that split by something? The first question anyone has after instrumenting a site, and the one the Feed's chart cannot answer because it counts everything at once.

curl -s -H "X-Lyraflow-Key: sk_..." \
  "http://localhost:3000/v1/events/stats?event=checkout&interval=1d&group_by=property:plan"

{ "buckets": [
    { "bucket": "2026-08-01T00:00:00.000Z", "series": "pro",       "events": 41 },
    { "bucket": "2026-08-01T00:00:00.000Z", "series": "free",      "events": 12 },
    { "bucket": "2026-08-01T00:00:00.000Z", "series": "(not set)", "events": 3 }
  ],
  "folded_series": 0 }

This is the same GET /v1/events/stats the Feed's chart already used, with a breakdown added rather than a second endpoint — so the bucket cap, the event_id deduplication and the deletion boundary are the ones that route already enforced.

A trend can also be a saved object, named and reopened later the same way a funnel is — see Saved trends below. Saving one does not change how it runs: a saved trend is still answered by this same GET /v1/events/stats call, with its stored event, interval and group_by filled in.

group_by takes three forms:

A property is read from both property bags, so a numeric property splits by its value rather than collapsing into one empty series — routing is per value at ingest, so the same key can land in either.

An event with no value there is a (not set) series, not a dropped row. That is what keeps a split reconcilable: the series always add up to the same total the ungrouped request returns, so a number here can be checked against the Feed.

interval is 1m, 1h, 1d or 1w. Weeks start Monday, in UTC — the same anchoring a retention cohort uses, so a weekly trend and a weekly cohort row cannot disagree about where a week begins.

since and until are optional; without them the window is scaled to the resolution. The Web UI offers presets and a two-date range, and says before you run when a span and a resolution would pair into more buckets than the server accepts — 30 days at 1m is 43,200 against a ceiling of 1000, which is exactly what somebody builds by accident when span and resolution are two independent choices.

At most 10 series come back; the rest are summed into one (other) series and counted. folded_series says how many values went into it, so a caller can say "and 340 others" rather than implying there were ten. (other) is kept and labelled rather than dropped, for the reason (not set) exists: a chart whose parts do not add up to the total is one nobody can reconcile.

Series are ranked by their total over the whole window, not by any single bucket, so a series does not appear and disappear as the window moves.

A breakdown producing more than 20,000 bucket/series rows is refused, with too_many_series, rather than truncated. Splitting a 90-day daily chart by utm_content on a busy site is that request; a chart silently missing its rarest series still looks plausible and the caller cannot tell.

There is no breakdown by trait — only by event column and event property. A trait lives on the person rather than the event and needs a join this route does not do; it is the obvious next step rather than a decision against it.

A saved trend is a named, stored definition — an event, an interval, an optional breakdown and a where filter — that the Trends screen creates and reopens. There is no /run endpoint: saving one does not add a second way to answer it, only a place to keep the question. Running a saved trend, from the screen or by hand, is the same GET /v1/events/stats call above with its stored fields as the query.

A saved trend's where clauses are parsed against the same grammar the run endpoint uses. A row this build cannot parse comes back with "stale": true rather than failing the whole list — the same behaviour a saved retention report has. Every row also carries definition_version, re-stamped to the current version whenever its stored where is rewritten — the same field retention_reports already has, for the same reason: it is what a future grammar change could filter on to find every row still on the old one, without parsing each row's JSON.

curl -X POST http://localhost:3000/v1/trends \
  -H "x-lyraflow-server-key: $LYRAFLOW_SERVER_KEY" \
  -H 'content-type: application/json' \
  -d '{ "name": "Checkouts by plan", "event": "checkout", "interval": "1d",
        "group_by": "property:plan" }'

A duplicate name within the same project is a 409. A non-numeric :id is a 400 naming invalid_trend_id; an id that does not exist, or belongs to another project, is a 404 — never a 403, which would confirm the id exists.

group_by takes the same values GET /v1/events/stats does — see Splitting above — and nothing else: on both POST and PATCH, anything parseBreakdown would refuse (a trait: prefix, an unknown attribute:, a bare string with no colon) is a 400 naming invalid_trend, with detail[0].path set to group_by. Before this, only a length check gated the field, so a value the chart engine would later refuse could be saved and then silently reopened as no breakdown at all (#274).

What is not stored is the range. since, until and every relative preset live only in the Trends screen's own URL, the same way a funnel never stores since/until either — only its window_seconds, a duration rather than a range. Reopening a saved trend runs it over whatever range the screen currently has, not the one it was created with.

Of the people who did one thing in a period, how many came back and did another in the periods after it. Funnels ask where people stop inside one flow; this asks whether they return at all.

curl -s http://localhost:3000/v1/reports/retention \
  -H "X-Lyraflow-Key: sk_..." -H 'Content-Type: application/json' \
  -d '{ "start_event": "signed_up", "return_event": "project_created",
        "granularity": "week", "periods": 8 }'

{ "granularity": "week", "periods": 8,
  "cohorts": [
    { "cohort": "2026-06-01", "size": 412, "retained": [180, 96, 71, 64, 58, 55, 51, 49, 47] },
    { "cohort": "2026-06-08", "size": 388, "retained": [166, 88, 66, 60, 55, 51, 48, null, null] }
  ],
  "computed_at": "2026-08-27T09:00:00.000Z", "warnings": [] }

retained[k] is how many of that cohort did the return event in period k. Period 0 is the cohort's own period — when the two events are the same it is the whole cohort by construction, and when they differ it is usually the most interesting number in the grid.

null is not zero. A cell is null when that period had not finished when the grid was computed. This is the single most important thing about reading one: a retention grid that reported unfinished periods as 0 would show a collapse in its newest cohorts, in exactly the corner a reader scans for a trend. computed_at says when "not yet" was decided; the same request run later fills those cells in.

A grid can also be a saved object, named and reopened later the same way a funnel is — see Saved retention reports below. Saving one does not change how it runs: a saved report is still answered by this same POST /v1/reports/retention call, with its stored fields as the body.

The two where lists are what make one event name usable. On a site where every navigation is a $page, "viewed the home page, then came back and registered" is one event name and two different conditions:

{ "start_event": "$page",
  "start_where":  [{ "source": "attribute", "attribute": "path", "operator": "=", "value": "/" }],
  "return_event": "$page",
  "return_where": [{ "source": "attribute", "attribute": "path", "operator": "=", "value": "/register" }],
  "granularity": "week", "periods": 8 }

Predicates on one side are ANDed together, and the two sides never see each other's. They are the same shape a funnel step's where takes, including the text, presence, boolean and relative-date operators — so a predicate is written identically in all three places.

A person belongs to the cohort of their FIRST start event inside the range — not their first ever, which would make the range decorative — and to exactly one cohort per run. Doing the start event again later does not move them or count them twice.

since/until bound entry, not observation. Measuring period 8 of the last cohort needs events from eight periods after until, and the scan runs on to fetch them. This is the same entry/observation split funnels make.

Cohorts are calendar-anchored, so a row is "the week of 3 June" rather than "day 0–6 since signup". One consequence is worth knowing: somebody who starts on a Sunday gets a one-day period 0. Rolling-from-signup retention is a different report and is not this one.

A range wider than 60 cohorts is refused rather than truncated — a grid silently missing its oldest rows is a chart with a trend that is not in the data. periods is capped at 26.

There is no breakdown — you cannot split a grid by campaign or country. Nothing is cached; every run is a real scan, saved or not.

A saved retention report is a named, stored definition — the two events, their conditions, the granularity, the period count and an optional segment — that the Retention screen creates and reopens. There is no /run endpoint here either: running a saved report, from the screen or by hand, is the same POST /v1/reports/retention call above with its stored fields as the body.

curl -X POST http://localhost:3000/v1/retention-reports \
  -H "x-lyraflow-server-key: $LYRAFLOW_SERVER_KEY" \
  -H 'content-type: application/json' \
  -d '{ "name": "Signup to first project", "start_event": "signed_up",
        "return_event": "project_created", "granularity": "week", "periods": 8 }'

A duplicate name within the same project is a 409. A non-numeric :id is a 400 naming invalid_retention_report_id; an id that does not exist, or belongs to another project, is a 404.

A stored where list that no longer parses is marked, not hidden. stale is on every row — true when a report's start_where or return_where no longer parse under today's grammar, false otherwise — and no route fails a report out for it: a row written by an older build stays listed, readable, renameable and deletable even after the grammar around it has moved on. The Retention screen reads the same field: opening a stale report skips its automatic run and says "The filters saved with this report no longer parse, so it cannot be reproduced as saved" — but leaves Run enabled, so the operator can still run the degraded version rather than being locked out of it.

What is not stored is the range, the same as a saved trend. Reopening a report runs it over whatever range the screen currently has, and that range — combined with the stored granularity — can land over the same 60-cohort ceiling an ad hoc grid is held to. When it does, nothing is computed: Run is disabled and the screen names the cohort count and the limit, the same warning a fresh grid gets for the same reason. That is a different case from the null cells above — those come from a grid that did run, on periods too recent to have closed yet; a report reopened over too wide a range, or too fine a granularity, never runs at all.

A dashboard is a named layout of saved reports — trends, retention reports and funnels — as an ordered list of tiles, each { "kind", "report_id", "width" } with kind one of trend, retention, funnel and width one of half, full. Position is the array index. There is no /run endpoint: a tile runs by the call its report already answers to — GET /v1/events/stats, POST /v1/reports/retention or POST /v1/funnels/:id/run — with whatever range the viewer chose.

curl -X POST http://localhost:3000/v1/dashboards \
  -H "x-lyraflow-server-key: $LYRAFLOW_SERVER_KEY" \
  -H 'content-type: application/json' \
  -d '{ "name": "Overview",
        "tiles": [ { "kind": "trend", "report_id": 3, "width": "half" },
                   { "kind": "funnel", "report_id": 1, "width": "full" } ] }'

A duplicate name within the same project is a 409. A non-numeric :id is a 400 naming invalid_dashboard_id; an id that does not exist, or belongs to another project, is a 404. A tile a write INTRODUCES that names a report which does not exist in this project is refused with 400 and {"error": "report_not_found", "kind", "report_id"}. Tiles already stored on the dashboard are not re-checked: deleting a report is allowed, the read returns that tile with "report": null rather than dropping it, and a PATCH carrying the whole layout — which is what an edit sends — must still be able to reorder, resize and remove around it. At most twelve tiles; the thirteenth is a 400. A report is on a dashboard at most once; a second tile naming the same report is a 400 too, naming that tile's index in detail[].path (tiles.1). The same id under two kinds is two reports, and fine.

is_home: true makes this dashboard the project's home and clears the previous one in the same transaction — there is exactly one per project, and the database enforces it. is_home: false clears it. Deleting the home leaves the project with none, and the web UI opens the feed again.

What is not stored is the range, for the same reason a saved trend or funnel never stores one. A dashboard reopens over whatever range the viewer has, never the one it was last looked at with. When the viewer picks no range, none is sent, and each of these endpoints applies its own default window — so the tiles on one dashboard are then showing different periods, which the web UI states under the picker.

Every row carries definition_version, and a stored layout this build cannot parse comes back "stale": true with "tiles": [] rather than failing the list — the same behaviour a saved report has.

A dashboard can be shared by a secret link. POST /v1/dashboards/:id/share mints a token and returns { "token", "shared_at" }; calling it again while the dashboard is already shared returns the same link rather than minting a new one, so a retried request or a second open tab cannot rotate the link out from under someone who already copied it. The link is https://<your host>/shared/<token>, and anyone holding it can open the dashboard with no login, pick a preset range and see every tile — the viewer page never shows the project name, and a tile there is inert: no link to the report behind it, no funnel step drill-down. DELETE /v1/dashboards/:id/share revokes it; the next request against that link is a 404, and every bookmark of it breaks. Calling it on a dashboard that is not currently shared — never shared, or already revoked — is a distinct 404 { "error": "not_shared" }, so a caller can tell "there was nothing to undo" from "that dashboard isn't yours". There is no separate rotate call — rotating a link is revoke then share again. One link per dashboard, and deleting the dashboard deletes its link with it. GET /v1/dashboards rows carry "shared": true|false, and GET /v1/dashboards/:id carries the token and its creation time as "share", or null when the dashboard has no link — the same pair the web UI's dashboards list and Share card read.

What a link exposes is the dashboard's name, each tile's report's name, the event names it queries, every breakdown value a trend is split by and every filter value in a stored where — the same list the web UI's Share card shows before it creates a link. A trend split by email address publishes those addresses to whoever holds the link; sharing is a decision about the report, not only about the dashboard around it.

The viewer surface takes no key or session at all — it is the first unauthenticated read path in this API; every other read requires a server key or a session, and ingest requires a write key. A token is not a server key or a session cookie, and presenting one where either is expected authenticates nothing; the token only ever resolves through the two routes below.

curl http://localhost:3000/v1/shared/$TOKEN

GET /v1/shared/:token returns { "name", "updated_at", "stale", "tiles" }, each tile carrying its report in that report's own shape, the same as GET /v1/dashboards/:id. An unknown, malformed, revoked or deleted token all answer the same 404 { "error": "share_not_found" } — one body for all four, so a guess and an expired link cannot be told apart from the outside.

curl -X POST http://localhost:3000/v1/shared/$TOKEN/tiles/0/run \
  -H 'content-type: application/json' -d '{ "range": "30d" }'

POST /v1/shared/:token/tiles/:index/run runs one tile and returns { "kind", "result" } in the shape of GET /v1/events/stats, POST /v1/reports/retention or POST /v1/funnels/:id/run. range is one of auto, 24h, 7d, 30d, 90d, 180d or 365d — presets only, never a since/until pair, because the result cache below needs a finite key space per link and a caller free to name arbitrary bounds could mint an unbounded number of them against one token. The query itself is built entirely from the tile's stored report; a link cannot ask anything the dashboard does not already ask. A bad index is 404 tile_not_found; a tile whose report has since been deleted is 404 report_not_found; a malformed range is 400 invalid_range; and a preset that report's own ceiling refuses — a funnel range past 90 days, a trend that would exceed the bucket cap — gets that report endpoint's own 400, the same one its authenticated route would send. A trend or retention tile whose stored where this build cannot parse is 400 stale_definition, the same flag the dashboard's own read marks the tile with. A funnel is not this — a funnel store throws rather than flagging, so a funnel whose stored steps this build cannot read comes back as a plain 400 naming the definition version in its error message, the same message GET /v1/funnels/:id sends for that row. Running a funnel through a link does not update the funnel's cached last run; that number belongs to the operator's own screen.

Three bounds apply to every link, because the caller is anonymous. At most 120 requests a minute count against one token — page loads (the GET) and tile runs together, not runs alone — refused with 429 { "error": "too_many_runs" } and retry-after: 60. At most 3 runs execute for one token at once; a fourth gets the same 429 with retry-after: 1. A tile's result is cached for 60 seconds per link, tile and preset, so a link opened by fifty readers costs one query per tile rather than fifty, and an edit to the dashboard or to a report it shows reaches the shared page within a minute rather than at once.

The token is in the URL, and Lyraflow's own request log redacts it. Both the viewer page /shared/<token> and the API call it makes, /v1/shared/<token>, are logged with the token replaced by [redacted]. Nothing in front of Lyraflow does that: a reverse proxy keeps its own access log, and nginx's default combined format writes the whole request line — so if you run one, every page load of a shared dashboard puts a working link into access.log, where it is readable by anyone who can read that file. Redact it there, or treat those logs as holding credentials.

What this does not do. There is no embedding flow — the link opens as a full page, not an iframe snippet — but the server sends no frame header on any page today, this one included, so nothing here actually stops another site from framing it; that gap is tracked, not solved, by this feature. There is no password on a link, no expiry, no count of who opened it, no way to share a single report on its own, and no way to list shared dashboards other than the shared flag on GET /v1/dashboards. Unlike a server key, the token is stored in plaintext rather than hashed, because the Share card has to show the link again after it is created — a database leak already exposes every event, person and segment in the project, so a plaintext link alongside that does not raise the stake. A link is a credential: anyone who has it has the dashboard, and revoking it is the only remedy for one that has spread further than intended.

Two read endpoints answer "what happened" and "how much, over time" directly against the event store, with no filter tree to write first — the first thing anyone reaches for after instrumenting a site. Both are server-key only, like every other read below, and both exclude events belonging to a person who has been deleted — the same suppression boundary every other read path enforces (see Privacy: deletion and export below) applies here too, from the moment a deletion is accepted, not only once the purge finishes.

The event feed, always ordered oldest-first:

curl -s "http://localhost:3000/v1/events?since=2026-08-09T03:16:00.000Z&limit=2" \
  -H "x-lyraflow-server-key: $LYRAFLOW_SERVER_KEY"

{
  "events": [
    { "event_id": "22222222-2222-2222-2222-222222222223", "timestamp": "2026-08-09T03:17:34.357Z", "event_name": "signup", "anonymous_id": "visitor-3", "user_id": "", "properties": {"plan":"trial"}, "properties_num": {}, "url": "", "path": "", "referrer": "", "utm_source": "", "utm_medium": "", "utm_campaign": "", "utm_term": "", "utm_content": "", "device_type": "desktop", "os": "macos", "browser": "chrome", "country": "", "region": "", "city": "" },
    { "event_id": "22222222-2222-2222-2222-222222222224", "timestamp": "2026-08-09T03:17:34.364Z", "event_name": "signup", "anonymous_id": "visitor-4", "user_id": "", "properties": {"plan":"trial"}, "properties_num": {}, "url": "", "path": "", "referrer": "", "utm_source": "", "utm_medium": "", "utm_campaign": "", "utm_term": "", "utm_content": "", "device_type": "desktop", "os": "macos", "browser": "chrome", "country": "", "region": "", "city": "" }
  ],
  "next_cursor": "WyIyMDI2LTA4LTA5IDAzOjE3OjM0LjM2NCIsIjIyMjIyMjIyLTIyMjItMjIyMi0yMjIyLTIyMjIyMjIyMjIyNCJd",
  "prev_cursor": "WyIyMDI2LTA4LTA5IDAzOjE3OjM0LjM1NyIsIjIyMjIyMjIyLTIyMjItMjIyMi0yMjIyLTIyMjIyMjIyMjIyMyJd"
}

before and after are mutually exclusive — sending both is 400. They name opposite directions over the same keyset, and every response is ordered oldest-first regardless of which one you sent: prev_cursor is always the page's own oldest row and next_cursor its own newest, whichever direction produced the page. A screen paging backwards (the person profile's timeline does) reverses the page itself to show newest-first; the wire contract stays one ordering, always.

When since is omitted and no cursor (after or before) is given either, the server defaults to the last 24 hours. That default deliberately does not apply once a cursor is present: a cursor already carries its own lower bound, and stacking the 24-hour default on top of an older cursor would silently drop every event between the cursor's real position and the default's edge — a gap that, once next_cursor has advanced past it, is never reachable again. An explicit since alongside a cursor still applies normally; it is only the default that backs off in a cursor's presence.

next_cursor and prev_cursor are keyset positions over (timestamp, event_id), and opaque — treat either as an opaque token, never decoded or constructed by hand. Unlike the segment cursor above, neither is signed: forging one only lets a caller holding the server key read their own project's events in a different order, which they could already do by choosing their own since/until, so there is nothing here for a signature to protect. Both are null on an empty page. limit above 500 is rejected with 400 {"error":"invalid_query"}, never silently clamped. A malformed, truncated, or hand-built after or before is a 400:

{ "error": "invalid_cursor" }

person follows the same device-window ceiling GET /v1/persons/:id does (see Identity resolution above): a person spanning more than 200 device windows is 400 person_history_too_fragmented rather than an unbounded query, with the same shape that read already documents.

Time-bucketed counts — "how much, over time" rather than "what happened":

curl -s "http://localhost:3000/v1/events/stats?since=2026-08-09T03:00:00.000Z&interval=1h" \
  -H "x-lyraflow-server-key: $LYRAFLOW_SERVER_KEY"

{ "buckets": [ { "bucket": "2026-08-09T03:00:00.000Z", "events": 8 } ] }

Add group_by=event_name to split each bucket by event name — event_name is present on a bucket only when grouping was requested:

{ "buckets": [ { "bucket": "2026-08-09T03:00:00.000Z", "event_name": "signup", "events": 8 } ] }

event narrows the aggregate to a single event name, exactly as it does on GET /v1/events, and works with or without group_by. It is applied before the counts are grouped, so it narrows the scan rather than the result.

There is a hard cap of 1,000 buckets per request. This route sums groups server-side rather than paging rows, so unlike the feed it has no limit to hide an oversized window behind — a window whose bucket count at the requested resolution would exceed 1,000 is rejected before any query runs:

{ "error": "window_too_large", "detail": "this window at 1h resolution would produce 57892 buckets, above the limit of 1000" }

The default window, when since is omitted, scales with interval rather than a single fixed span — a flat 24-hour default collides with the 1,000-bucket cap at fine resolutions, so a bare ?interval=1m with nothing else would otherwise be an unconditional 400:

401 for a missing or invalid server key, on both endpoints.

where narrows which occurrences of the event are counted. It carries the same predicate grammar a segment behaviour and a funnel step use, as a JSON array:

curl -sG -H "x-lyraflow-server-key: $KEY" \
  --data-urlencode 'event=$page' \
  --data-urlencode 'interval=1d' \
  --data-urlencode 'where=[{"property":"path","operator":"=","value":"/register"}]' \
  "http://localhost:3000/v1/events/stats"

Without it, a site whose every navigation is a $page can only chart "any page viewed", so $page where path = /register and $page where path = / are the same chart.

At most 10 predicates, ANDed. {"source":"attribute","attribute":"utm_source",…} filters on a column of the event; the default reads the event's own properties, from both bags, so a numeric property filters by value rather than reading as unset. Anything that is not a valid predicate list is a 400 invalid_where rather than a silently wider answer. where is independent of event: with no event name it asks the question of every event.

DELETE /v1/persons/:id erases a person's data — the same subject GET /v1/persons/:id describes: the id is resolved through the same alias and device-id lookup, so deleting a device id or a since-merged id reaches the right person. Server-key only, like every endpoint below it that reads or mutates a person's data.

curl -i -X DELETE http://localhost:3000/v1/persons/user-42 \
  -H "x-lyraflow-server-key: $LYRAFLOW_SERVER_KEY"

{
  "request_id": 118,
  "person_id": "user-42",
  "suppressed_at": "2026-08-07T09:30:00.000Z"
}

person_id is the canonical id, which can differ from the one you sent — deleting an id that was later merged into another still resolves to, and erases, the survivor of that merge. suppressed_at is the boundary: events at or before it stop appearing anywhere, immediately.

The boundary belongs to the person, not to the single id you named, and a person is every id merged into them. So the boundary that applies to a read can move as identities merge: if two people who were each deleted at different times are later merged with /v1/alias, the surviving person carries the later of the two boundaries, and events after the earlier deletion but at or before the later one become hidden too.

That direction holds for the profile read and the export, which resolve the whole merged group and take the strictest boundary in it. It does not hold for segment counts and member lists. Those resolve a person through the identity dictionaries and read whichever person the merge produced — so merging a recently-deleted person into one deleted earlier can make some of the first person's erased events countable in a segment again, until the purge worker removes the rows for real. This only ever concerns subjects who have already been deleted, it is bounded by the purge (usually under a minute), and no never-deleted person is affected. If you need the guarantee to be absolute rather than eventual, wait for GET /v1/deletions/:id to report completed before treating a deletion as final — which is the right thing to do anyway, since only the purge actually removes data.

Deletion is asynchronous. The moment the API answers 202, the person's past data stops appearing in segment counts, member lists, profile reads and exports — that is the suppression list, and it takes effect immediately, including for a /v1/segments/preview result already sitting in the in-process cache (see Segments above): a DELETE clears that project's cached entries as part of the same request. The rows are then erased for real by a worker inside the server process, usually within a minute. Until it finishes, person-level aggregates (first_seen, last_seen, event counts) can still reflect erased events for someone whose activity straddles the deletion instant, because those are pre-aggregated per month and a month cannot be split. Event-level reads are exact throughout. Poll GET /v1/deletions/:id for status: "completed".

A saved segment's last_count does not know a deletion happened. It is a snapshot from whenever the segment was last run (POST /v1/segments/:id/preview or its own creation), not a live figure — a deletion changes what an ad hoc /v1/segments/preview reports on the very next call, but it does not touch last_count on any saved segment, which stays exactly as stale as it already was until something explicitly re-runs that segment. This is true regardless of caching; it is simply what "snapshot, not a live count" already meant.

Suppression is scoped in time, not permanent. Erasure is a right to have past data deleted, not a promise never to be measured again — if the same user keeps using your application, they eventually reappear as a person with a history of their own.

But that history does not start at the 202. Under suppression alone, an event recorded between the 202 and the purge finishing genuinely is visible — every read path filters by the boundary, and this new event is after it. The purge, though, is not boundary-aware: by design, it deletes every event the person has, with no "at or before suppressed_at" clause — honouring the boundary here would mean keeping the identity bindings that say those events are this person's, and unsuppressed bindings for a deleted person are the exact leak the purge's step order exists to prevent. So an event landing in that gap is shown by every read path for the minute or so the purge takes, and then erased along with everything older. The person's surviving history begins after the purge completes, not after the request is accepted, and activity recorded in that gap does not survive — it is erased with the rest. Requesting deletion again moves the boundary forward and erases whatever accumulated since, including while a previous request is still waiting on the purge worker, which is exactly the case an operator re-requesting after a failed attempt needs to work. If a previous request failed part way through — its events already erased, its identity rows not — the repeat DELETE reopens that request and returns its original request_id, instead of reporting the now-eventless person as 404. Once the purge has actually finished, a repeat request for a person with no activity since then finds nothing left to erase, and answers 404 like any other id nothing has recorded.

Not covered: backups. Lyraflow deletes from the live stores it manages. A backup you took before the deletion still contains the person's data, and restoring it will restore them — the suppression list itself is in Postgres and is backed up with it, so a restored person stays hidden from queries, but their rows are back. Rotating or re-taking backups after a deletion is the operator's responsibility, and this is stated rather than pretended.

One exception to "stays hidden": a device the erased person used, later bound to a genuinely DIFFERENT person, then a backup from before the deletion restored after that. The erased person's anonymous activity on that device is attributed by device id when nothing else claims it; once someone else's identity has since taken over that device, a restored anonymous event resolves to the NEW person instead, and nothing hides it — it appears as theirs, inflating their history. This needs all three of the purge having completed, that device rebound to someone else, and a backup predating the original deletion restored afterwards; a person's own identified events (anything carrying its own user id) are unaffected regardless. Narrow, and stated rather than silently left for an operator to discover.

A deletion request with no subject is 404:

{ "error": "person_not_found" }

Read that 404 carefully — it does not mean "this id was never seen." It means no events could be resolved for a person from the id you sent. Erasure, export and the profile read all cover people the identity graph knows about, and an id only enters that graph through /v1/identify (or /v1/alias). A purely anonymous visitor — an anonymous_id that has sent events but has never been identified — cannot be resolved from that anonymous_id alone, and answers 404 here even though their events are sitting in the store. If you have been handed a raw cookie or device id by a data-subject request and get a 404, that is the case to rule out first: it is not evidence the id was never recorded. Resolve it to a user id (anything you have ever called /v1/identify with for that device) and request erasure for that instead. Widening resolution to cover never-identified visitors is a change we intend to make; today it is a documented limit rather than a silent one.

401 for a missing or invalid server key.

GET /v1/deletions/:id reports what happened to a request returned by the DELETE above:

curl -s http://localhost:3000/v1/deletions/118 \
  -H "x-lyraflow-server-key: $LYRAFLOW_SERVER_KEY"

{ "status": "completed", "requested_at": "2026-08-07T09:30:00.000Z", "completed_at": "2026-08-07T09:30:41.000Z" }

failed does not mean nothing happened. The purge erases in a fixed order — events first, identity last — so a request that failed part way through has usually already deleted some of the person's data. Treat failed as "partly erased, stopped", never as "no change". The recovery is to send the same DELETE /v1/persons/:id again: it picks the unfinished request back up and returns 202 with the same request_id, rather than 404-ing a person whose events are already gone. Keep polling that id. Rejected payloads that name any of the person's ids are erased in the same purge, matched the way the export finds them.

:id belonging to another project, or to no request at all, is 404 with { "error": "deletion_not_found" } — never 403, which would confirm the id exists. A non-numeric :id is 400 with { "error": "invalid_deletion_id" }.

GET /v1/persons/:id/export answers a subject-access request: everything Lyraflow has recorded about one person, as streamed NDJSON — one JSON object per line, not a single JSON document. Server-key only, like every endpoint in this section.

curl -s http://localhost:3000/v1/persons/user-42/export \
  -H "x-lyraflow-server-key: $LYRAFLOW_SERVER_KEY"

{"type":"person","person_id":"user-42","ids":["user-42","visitor-1"],"traits":{"plan":"pro"},"first_seen":"2026-08-01T12:00:00.000Z","last_seen":"2026-08-06T09:30:00.000Z"}
{"type":"event","event_id":"…","timestamp":"2026-08-01T12:00:00.000Z","event_name":"page","properties":{…},…}
{"type":"event","event_id":"…","timestamp":"2026-08-06T09:30:00.000Z","event_name":"import_started","properties":{…},…}
{"type":"rejection","received_at":"2026-08-03T04:00:00.000Z","reason":"validation_failed","detail":"…","payload":"…","match":"quoted-id-substring"}
{"type":"end","events":2,"rejections":1}

Four line shapes. The first line is always type: "person" — the same identity GET /v1/persons/:id returns (person_id, ids, first_seen, last_seen), plus traits, and without that read's events count: the count moved to the terminator below, where it can be checked against what was actually received. Then one type: "event" line per event, oldest first, carrying every field recorded for it. Then any type: "rejection" lines. The last line is always type: "end", and events is the number of event lines that actually preceded it.

type: "rejection" lines are payloads that were refused at ingest (validation_failed, too_many_properties and the other reasons the Feed's Rejected tab shows) and never became events. A refused payload has no identity — it is stored as the raw text that failed to parse — so these are found by searching that text for each of the person's ids in quoted form, exactly as a deletion finds them to erase. That is a heuristic and match says so; a rejected payload that mentions this person's id inside someone else's data would be included too. Rejected payloads are kept for 30 days and then dropped by the table's own TTL, so an export taken later shows none. rejections on the end line counts them the way events counts the event lines.

The export is a stream, and it terminates itself. The response status and headers are sent before the first line, which means a failure part-way through cannot be reported as an HTTP error — the connection would already be committed to 200. Instead, on a mid-stream failure the response simply ends without ever writing the final end line. A response without a final {"type":"end","events":N} line is incomplete and must be discarded. Always check for that line, and check that its events count matches the number of event lines you actually received, and its rejections count matches the number of rejection lines you actually received — a truncated response that happens to look complete is exactly the failure a subject-access export cannot afford to miss.

The export honours deletion the same way the person read does: a person who has been deleted exports only the events recorded after the deletion boundary, and a person with nothing left after that boundary is 404, the same { "error": "person_not_found" } an unresolvable id gets. As with DELETE, that 404 also covers a visitor who has never been through /v1/identify — see Privacy: deletion and export above, where the same limit is described in full. An anonymous_id alone is not enough to export a subject. Traits are omitted entirely once a boundary exists — a trait carries no event time (it is the latest value known for that key, not a timestamped fact), so it cannot be split at the deletion instant the way an event can; returning it would be a way to read back exactly what the deletion asked to remove.

The same device-window cap GET /v1/persons/:id enforces applies here too: past 200 device windows the export answers 400 person_history_too_fragmented, identically to the person read. Unlike DELETE /v1/persons/:id, which chunks and must never refuse to erase the most fragmented people, refusing to render an export for them is an acceptable answer — nothing about their data goes unerased because of it.

Every query behind this endpoint runs under a ceiling — 300 seconds and the same 4 GiB memory ceiling segment queries use. For almost every person this is invisible; for someone with an exceptionally large recorded history, hitting one is expected behaviour, not a bug, but which one you hit produces a different, distinguishable symptom, and it matters which:

• The summary query and, when it runs, the traits lookup both execute before the response is sent at all. If either one hits a ceiling, the export never starts: you get a 503 — the same generic failure response every other endpoint gives an internal error, with retry-after set.
• The per-event and rejection queries both stream after the response has already started. If either hits a ceiling partway through, the export cannot become an HTTP error any more — the stream simply ends, without its final end line, exactly like any other mid-stream failure above. This is what the discard rule was written for.

If you self-host and an export is being cut short for one particular person, an unusually large history hitting one of these ceilings is the first thing to check: a 503 means it never started, a response missing end means it started and was cut short — before assuming either is a bug.

401 for a missing or invalid server key.

Lyraflow speaks plain HTTP and has no TLS of its own. For a local trial that is fine. For anything else it is not, and not for the reason you would expect first:

• The snippet will not load. It arrives as a <script src>. On a page served over https://, a script tag pointing at http:// is active mixed content, which browsers block outright with no warning and no override. Nothing is collected and nothing says why.
• Your server key crosses the internet in clear. The write key is public by design. The server key — which reads, exports and deletes people — is on every read call you make.

So give the installer a hostname that already resolves to the server:

./install.sh analytics.example.com

A fourth container joins the stack. It takes ports 80 and 443, obtains a certificate from Let's Encrypt on its own, renews it on its own, and forwards to Lyraflow — which stops being reachable from anywhere but the machine itself. Nothing else about the install changes, and every example in this document works against https://analytics.example.com in place of http://localhost:3000.

lyraflow snippet picks this up automatically: with a hostname configured this way, -e LYRAFLOW_HOST=... can be dropped from the docker compose exec call in Put the snippet on your website — the command defaults to https:// plus the domain you gave the installer, so the one place a wrong scheme silently produces a broken (mixed-content) snippet no longer needs typing out by hand. Every other command still needs --host/LYRAFLOW_HOST set explicitly (see packages/cli/README.md).

Leaving the hostname out keeps today's behaviour exactly: three containers, port 3000, no certificate. That is the right choice if you already run a reverse proxy — put it in front of port 3000 as you would anything else.

The certificate and the account key live in a Docker volume, so restarts and upgrades keep them. docker compose down -v throws them away along with your data, and the next start asks for a new certificate — worth knowing before you reach for -v repeatedly, because certificate authorities rate-limit re-issuing for the same name.

Re-running ./install.sh analytics.example.com on an install that already serves that name is fine — it pulls the newest published image and restarts the stack. It does not move your checkout to a new release; Upgrading covers that. It will not change a domain that is already in .env; nothing in the installer rewrites a value that file already holds.

To go back to a local install, remove all three of the settings the installer added — LYRAFLOW_DOMAIN, COMPOSE_PROFILES and LYRAFLOW_PUBLISH — leaving the passwords alone, since they are the only copy. Then:

docker compose --profile tls down
docker compose up -d

You are left with the three containers and port 3000 again, and your data where it was.

Both halves matter, in ways that are easy to get wrong:

• Remove all three settings, not just the domain. With COMPOSE_PROFILES=tls still in .env, Caddy is still started — now with no domain to serve, so it fails to parse its configuration and restarts forever. And with LYRAFLOW_PUBLISH still there, the app stays bound to loopback, which is not reachable once Caddy is gone.
• --profile tls on the down, and no -v. Removing the settings makes Compose stop listing the caddy service at all, so a plain docker compose down — even with --remove-orphans — walks straight past the running container and leaves it holding 80 and 443. Naming the profile is what brings it back into view long enough to remove it. -v would take your database volumes with it.

If the record is proxied — Cloudflare's orange cloud, or an equivalent — the automatic certificate may not issue, and whether it does depends on settings that Lyraflow cannot see. The challenge is an ordinary HTTP request, so a proxy that passes port 80 through to your server will let it through; one set to redirect that traffic, or to refuse unencrypted connections to the origin, will not. The failure is quiet either way — the site simply never starts serving, and nothing says why.

The dependable answer is not to rely on that question having a good answer. Give Caddy a certificate directly, and issuance stops involving the proxy at all. For Cloudflare that means an Origin CA certificate: create one in the dashboard, save the pair on the server, and add a file to docker/caddy/tls.d/:

tls /etc/caddy/certs/origin.pem /etc/caddy/certs/origin.key

Mount the directory holding them into the caddy service, and set Cloudflare's SSL/TLS mode to Full (strict).

You can instead grey-cloud the record until the automatic certificate issues and turn the proxy back on. That works, but it is not finished: renewal happens on its own schedule months later and meets whatever conditions exist then. A certificate that issued once behind a grey cloud is not evidence the next one will.

One thing worth being explicit about, because the setting sounds like it solves the problem and does not: Cloudflare's Full mode does not remove the need for a certificate here. It still requires your server to speak HTTPS — it only stops checking which certificate you present. The mode that needs no certificate at all is Flexible, and it leaves the leg between Cloudflare and your server unencrypted, carrying your server key and your event data. Your visitors would see a padlock that stops being true partway.

One admin account, a session-cookie login (POST /v1/auth/login), and the project-scoped routes it protects — including the Web UI's own sign-in form, which calls this same endpoint. It matters to what you expose even if you never open the UI, so it is documented here rather than only in the section about the screen that uses it.

./install.sh generates the admin account the same way it generates the database passwords: a random one, written into .env, and printed once at the end of a successful install — the only time you will see it.

Resetting the login. There is one admin account, and one command that resets it. It takes the email address as its argument and the new password on stdin, and it sets both: whatever address you pass becomes the login, whether or not it matches the current one, and every signed-in browser is signed out. Forgetting the password and forgetting the address are therefore the same situation with the same fix, and neither needs the other to recover:

read -rsp 'password: ' P; echo
printf '%s' "$P" | docker compose exec -T lyraflow \
  node packages/cli/dist/index.js reset-admin-login you@example.com
unset P

reset-admin-login and set-admin-password are the same command under two names; the second is the original and is what the UI's first-run screen and older docs print.

The command takes the password on stdin, never as an argument — an argument lands in shell history and in ps output for every user on the box. read -rs is there for the same reason and is not merely tidier: an echo 'a new password' | ... keeps the argument off ps but writes the credential straight into your shell history, which is most of the problem back again.

-T matters too. docker compose exec allocates a TTY by default and then ignores piped stdin, so without it the password never arrives and the failure is silent.

If you are upgrading an install that predates the admin account, its .env has no LYRAFLOW_ADMIN_PASSWORD — the installer only ever writes it into a brand-new .env, and an upgrade keeps the .env you already have. The app still boots; it logs a warning at startup and there is nothing to sign in with until you run the command above, once.

Stated plainly, because it is a real trade and not an oversight: the admin login is served on the exact same public origin as ingest. There is no separate port, no separate host, and no network boundary between them — an install reachable from the internet for /v1/track is reachable from the internet for /v1/auth/login too, protected by the password above and nothing else. That is the price of an install this simple. At minimum, put it behind HTTPS, and treat the admin password with the same care as the server key.

There is one admin account and no roles, so a login you hand to someone else can change everything the admin can. For an install where everyone who signs in is a visitor, such as a public demo, one switch makes the whole install refuse writes:

Like every other setting, it has to reach the server through the lyraflow service's environment: block in docker-compose.yml. The shipped compose file passes it through, so setting it in .env and running docker compose up -d is enough.

What a read-only install still accepts. Anything that is GET, HEAD or OPTIONS, plus these, matched on the route rather than the raw URL:

• POST /v1/auth/login and POST /v1/auth/logout, or nobody could sign in.
• POST /v1/track, /v1/identify, /v1/page, /v1/batch and /v1/alias. Read-only means the admin surface: ingest still accepts events, so a read-only install's live feed stays live.
• The reads that travel as POST because they carry a definition or a range: POST /v1/segments/preview, /v1/segments/:id/preview, /v1/funnels/preview, /v1/funnels/:id/run, /v1/funnels/:id/dropoff, /v1/funnels/:id/people, /v1/reports/retention, and a shared dashboard's /v1/shared/:token/tiles/:index/run. Running a saved funnel or segment normally records its counts as the "last run" its list shows. A read-only install skips that, so one visitor's run does not rewrite what the next one sees.

Everything else answers 403 with {"error":"read_only_install"} before its body is read, including any route added in a later release that nobody thought to list. The web UI reads the setting from GET /v1/meta and hides the controls the server would refuse: create, edit, save, delete, share, the home star, project settings, and the email and password forms. A share link made before the switch was turned on keeps working. No new one can be made.

It is not a second user. Every caller, session or server key, is refused the same writes on a read-only install, including you. To change anything, set it back to false and restart. The CLI commands that talk to the databases directly rather than to the API are the exception: create-project, projects delete, projects deletion retry, reset-admin-login, seed-demo and migrate still write, because the switch lives in the API server and they never pass through it. They need a shell on the host, so this is how an operator changes a read-only install without restarting it. There is still no way for one install to have an operator who writes and a visitor who only looks; that is #223.

A background worker drops events older than each project's own retention_months — 13 months by default for a new project. That default lives on the projects table and applies only going forward: it changed where a fresh install starts, not what an existing project is already configured with, so upgrading never quietly shortens anyone's retention. Change it after creation with PATCH /v1/project (see The ingest API above), which the Web UI's Settings screen also calls — both take the same range, 1–120, enforced again by the column's own check constraint so a value the API validated can never fail at the database for a reason the caller wasn't already told.

Retention is month-granular, not day-granular — a floor, not an exact promise. ClickHouse's events and device_index tables are both partitioned (project_id, month), and the worker drops whole partitions, not individual rows. A project on 13 months therefore holds between 13 and 14 months of data depending on where in the current month you ask: the oldest surviving partition is always at least 13 months old, but it is not dropped until its entire month has aged past the boundary.

What survives, and why. Two tables are deliberately outside retention's reach:

• person_traits — the latest known value for each trait a person has ever had (identify()'s payload), partitioned by project only, with no time dimension to expire against. A person past retention keeps their traits and their identity links (identity_bindings, in Postgres, is untouched by this worker entirely) — but not retrievably. GET /v1/persons/:id and GET /v1/persons/:id/export (see Privacy: deletion and export above) both decide whether a person exists at all from the same query, an event count, and answer 404 person_not_found when it is zero — identically to an id that was never recorded. Once retention has dropped every partition holding this person's events, that count is zero, so both routes 404, not a profile with traits and no event lines. The traits and identity links are still there, physically, in person_traits and identity_bindings; nothing in this API can read them back out once every event is gone. If you are answering a data-subject access request for someone past retention, the honest answer this API can give is "no record found" — state that plainly rather than reading the 404 as proof the person was never recorded.
• event_schema — the distinct event and property names Lyraflow has ever seen, used for autocomplete (see Autocomplete: event and property names under Segments above). It is not partitioned by time at all, so an event name can keep showing up as a suggestion long after every event that used it has aged out and been dropped — autocomplete can offer a name that now returns nothing.

A person past retention also leaves the segment base population. Every segment's base population is built from device_index (base.last_seen, in particular, is derived from it — see Segments above), so once a person's last remaining device_index partition is dropped, they no longer appear in any segment count or member list — not because they were deleted, but because the aggregate row retention just removed was the only thing that put them there.

Two environment variables control the worker, and a third decides whether its work leaves any record:

Both retention variables, like every other setting the server reads, must go in the environment: block of the lyraflow service in docker-compose.yml — Compose passes only what that block lists, and a variable added to .env alone is used for substitution inside the compose file and never reaches the server.

Disabling it means retention is nobody's job unless you make it somebody's. LYRAFLOW_RETENTION_ENABLED=false is a legitimate choice for an operator who prunes ClickHouse some other way, but Lyraflow will not do it for you, silently or otherwise, once it is off — the server logs a line at startup saying so, precisely so that choice is visible in the boot log rather than merely absent. A disabled worker also reports 0 on both metrics below, forever — it never runs, so lyraflow_retention_last_run_timestamp_seconds never leaves 0 and lyraflow_retention_partitions_dropped_total never leaves 0 either. If you disable retention deliberately, disable or exclude the alert on the first metric too, or it will fire permanently for a state you chose on purpose.

Two /metrics series exist to alert on:

• lyraflow_retention_last_run_timestamp_seconds — the Unix timestamp of the worker's last completed run; 0 before the first one. This is the metric to alert on, and the thing to watch is it going stale, not its value. A worker that has silently stopped — crashed, wedged, never started — looks exactly like one that is healthy and simply has nothing left to expire: neither shows up as an error anywhere else. A timestamp that stops moving is the only signal that tells the two apart, and by the time it is noticed the wrong way, the failure it exists to prevent (partitions never dropped, disk quietly filling) has already been arriving, unannounced, since the worker stopped. This timestamp still advances even on a run where every single project's drop failed — the worker moves on to the next project and reports each failure through its own error log rather than aborting the run, so a completed run (this metric's whole definition) is not the same claim as "something was actually dropped". If you need to know that drops are succeeding, not merely that the worker is alive, watch the error log and the counter below together with this timestamp, not this timestamp alone.
• lyraflow_retention_partitions_dropped_total — a counter of partitions actually dropped since process start. A dry run or a run that found nothing expired does not advance it.

Retention trusts Postgres for its list of projects, and deletion is what keeps the two stores in step. The worker sweeps the projects in the Postgres projects table, so a project row removed by hand — DELETE FROM projects, a partial restore — would leave its ClickHouse partitions out of retention's reach and out of both metrics above. That is why project deletion is a real operation rather than a row delete: lyraflow projects delete and DELETE /v1/projects/:id tear ClickHouse down first, confirm nothing is left, and only then remove the row (see Deleting a project). A deletion that keeps failing stays in the projects table with deleting_at set, and the worker keeps sweeping it, so a half-finished delete is never invisible. If you do remove a row by hand, drop that project's partitions in ClickHouse yourself at the same time.

A quota is off by default, and no project has one until you set it. The projects.monthly_event_quota column is nullable, NULL means unlimited, and NULL is what every project carries — both a new one and every existing one, which the upgrade rewrote on purpose rather than starting to enforce a limit nobody had opted into. Set one with PATCH /v1/project (see The ingest API above) — the same route the Web UI's Settings screen calls — or direct SQL if you would rather:

-- 5,000,000 accepted events per calendar month for one project.
UPDATE projects SET monthly_event_quota = 5000000 WHERE slug = 'acme';

-- Back to unlimited.
UPDATE projects SET monthly_event_quota = NULL WHERE slug = 'acme';

The value must be positive (a check constraint enforces it, and the API rejects 0 and negative values the same way); send null over the API or NULL over SQL, never 0, to mean unlimited. The month is the UTC calendar month, so the budget resets at 00:00 UTC on the 1st, not on a rolling 30-day window and not in the server's local timezone.

Understand what you are turning on before you turn it on. The write key ships in your browser bundle and is readable by anyone who visits an instrumented page. With no quota, the worst that key buys an abuser is your storage and your bandwidth. With a quota, it also buys them an off switch for your own analytics: valid events count, so a few minutes of scripted traffic can spend the month's budget, after which your real events are refused until the 1st — by design, since that is what a quota means. Nothing here distinguishes a customer's browser from a script; both hold the same key.

So a quota protects a bill, not a service, and it does so by trading availability for cost. Set one where an unbounded bill is the greater risk — and size it well above any month you would actually want, since a quota that is merely generous still ends in a month of silence once it is spent. If you need protection against abuse rather than against cost, that belongs in front of the ingest (a rate limit at your proxy or CDN, per IP), which the quota does not attempt and cannot replace.

A change takes up to a minute to take effect. Each server process caches the project row — quota included — for 60 seconds against the write key it arrived with, so events can still be refused for about that long after you raise a limit, and for about that long after you lower one they will still be accepted. Nothing needs restarting; wait it out.

Only accepted events count toward a quota. Malformed events, events refused by the cardinality limits, bot traffic, and events dropped when the buffer saturates all leave it untouched. That is deliberate and it is a security property, not a convenience: if rejected traffic consumed the budget, anyone holding the write key — which ships in the browser bundle — could exhaust a project's month with payloads that are never stored as events, and silence its real analytics until the 1st.

Malformed events are not free of storage, though: each one writes a row to events_dead_letter, kept for 30 days by that table's own TTL and bounded by nothing else. The row's detail and payload are capped at 1000 and 8000 characters, which is not the same as bytes — a payload of non-Latin text weighs about three times its character count in UTF-8, so budget for roughly 24 KB per row rather than 9 KB. A flood of nonsense therefore costs disk whatever the quota says. What it cannot do is consume the budget.

Enforcement is a bound with known slack, not an exact cliff. Each server process keeps its recent counts in memory, folds them into Postgres every 10 seconds, and caches the persisted total for 5 seconds, so the figure the check acts on can trail reality by roughly those two intervals of that project's own traffic — about 15 seconds' worth. A project can therefore overshoot its quota before refusals begin: against a quota of 10, 15 events being accepted is normal and expected, not a bug. Neither interval is configurable. Running several server processes widens the same window by roughly a factor of the process count, because each holds its own pending tally and its own cache. Set a quota you can afford to exceed by a few seconds of peak traffic.

The slack is bounded by that project's own rate over those seconds, and not by how many requests arrive at once: a burst of simultaneous requests is decided one at a time, each seeing the one before it. So the number to plan against is a project's peak events per second, not its peak concurrency.

Once a project is over, /v1/track, /v1/identify and /v1/page answer 429 {"error":"quota_exceeded"} with no retry-after, and /v1/batch answers 202 with the refused events counted in over_quota (see Responses).

The browser SDK learns about the quota from the 202 body, never from a status code. It posts only to /v1/batch, so the 429 above is not a response it can receive at all. When a batch comes back with over_quota above zero, the SDK drops those events — a quota refusal does not clear on its own, so holding them would only wedge the queue behind events the server will refuse all month — and warns on the console naming the quota, which is the only signal a developer gets. A 429 reaching the SDK from anywhere else is treated as an ordinary rate limit: the batch is kept and retried with backoff.

A refusal is recorded in two places, and they answer different questions. lyraflow_ingest_events_total{outcome="over_quota"} on /metrics counts individual events refused since process start, across every project — it carries no project label and it resets on restart, so it tells you that refusals are happening, not who they belong to. That makes it the thing to alert on. The durable record is ingest_counters.events_over_quota in Postgres, one row per project per month, which each server process folds its tally into every 10 seconds; query that to find out which project ran out and by how much. Neither is events_dead_letter: over-quota events are deliberately kept out of it, because that table records data that could not be parsed, and filling it with valid events refused by policy would bury the bad-data signal it exists to carry.

To be warned before the cliff, alert on lyraflow_ingest_quota_used_ratio. It is a gauge, labelled by project_id, carrying this month's accepted events as a fraction of that project's quota:

lyraflow_ingest_quota_used_ratio{project_id="7"} 0.83

The threshold is yours to pick — 0.8, 0.95, both — which is why this is a ratio rather than a built-in warning level. The counter above tells you that events have already been lost; this one tells you they are about to be.

Three things about it are worth knowing rather than discovering:

• Only projects that have a quota appear. null is unlimited and is the default, and a ratio against unlimited is not a number. A deployment that has never set a quota emits the HELP and TYPE lines and no series, and pays nothing for them.
• A project appears only once it has sent an event this month, because the figure comes from the ingest path's own cache rather than from a query — a scrape costs no database read, on an endpoint that is unauthenticated and scraped on a schedule the server does not control. A project that has gone quiet has no series until it sends again.
• It can exceed 1.0. A batch is admitted or refused as a whole, so a project can finish one slightly past its limit. That is not clamped, because crossing the line is the transition worth being able to see afterwards.

For the month's durable totals, read ingest_counters; for one project's current consumption on demand, lyraflow usage or GET /v1/project/usage.

If Postgres is unreachable, the quota is not enforced from persisted state. The usage read falls back to the last known figure for the current month, or to zero, leaving only the process's own in-memory tally counting against the limit — a database blip must not turn into a project-wide refusal of events that were well inside their budget. The server logs quota usage read failed once per project per cache TTL while that lasts, which is the only signal that enforcement has degraded.

Two scripts sit beside install.sh. backup.sh is the one you schedule; restore.sh is the one you run once, under pressure, and it is the only thing in this repository that deletes any of your data.

./backup.sh /var/backups/lyraflow

It stops only the app container, waits for its grace period so the ingest buffer drains, backs up ClickHouse and Postgres with nothing writing, restarts the app, and writes:

/var/backups/lyraflow/2026-08-10T041500Z/
    clickhouse.zip     the ClickHouse database
    postgres.dump      pg_dump custom format
    MANIFEST           versions, per-table row counts, SHA-256 of each file

Ingest is refused while it runs, and so are queries. Events are delayed rather than lost: the browser SDK queues in localStorage and retries. What you get for that pause is a guarantee that fits in one sentence — the backup is a point-in-time image of both stores with no writes in flight.

How long that pause is depends on how much data you hold. On a small deployment it is about eight seconds (8.3s, 8.6s and 8.3s on three consecutive runs of the stack this repository ships); most of it is the app's shutdown drain rather than the copying, so it grows with your data but not from a standing start. Measure your own before you decide what time of night to run it.

A nightly cron entry:

17 4 * * *  cd /srv/lyraflow && ./backup.sh /var/backups/lyraflow >>/var/log/lyraflow-backup.log 2>&1 || docker compose ps

The trailing || docker compose ps is not decoration. backup.sh restarts the app from an exit trap on every path it can control, but a SIGKILL — an OOM kill, a docker kill, a hard systemctl stop — runs no trap at all and leaves the app stopped. The ps puts the state in your log where you will see it.

If you pipe the script anywhere, test PIPESTATUS, not $?.

Rotation, off-site copies and encryption are yours to choose. find -mtime, restic and rclone all do these better than we would, and Lyraflow deliberately does none of them.

Beyond your personal data and your projects' write keys in plaintext, the archive contains your Postgres password. Lyraflow's identity dictionaries live inside the ClickHouse database, and their definitions embed the credential they use to read Postgres — so three files inside clickhouse.zip carry it.

backup.sh writes everything 0600 inside a 0700 directory. Treat a backup directory exactly as you would treat the database itself, and think about that before you sync it to a bucket.

What a restore cannot give you back is a server key. Only its hash is stored, by design. If you have lost yours, no backup recovers it and the remedy is a new project.

./restore.sh /var/backups/lyraflow/2026-08-10T041500Z

You will be asked to type the backup's timestamp. There is no --force.

Three things are checked before anything is destroyed: the artefacts match their checksums, the backup is not newer than the image you are running, and you confirmed. Any of them refusing leaves your running system untouched — not even stopped.

Then the ClickHouse database is dropped and refilled, and the Postgres public schema is dropped and refilled. Everything written since the backup is gone.

Both stores are always restored together, and there is no flag to do one. suppressed_persons — the record that a person exercised their right to erasure — lives in Postgres, while the events it hides live in ClickHouse. A Postgres older than its ClickHouse partner brings deleted people back into every query. ClickHouse is restored first so that an interrupted restore fails on the safe side.

If a restore is interrupted part-way, the app is deliberately left stopped. The script tells you which store is in which state and asks you to run it again with the same backup, which is safe and idempotent. It does not restart the app for you, because a Lyraflow serving a half-restored database can be answering queries with no suppression rows at all — a down site is loud, and that is not.

Two smaller things worth knowing. Restoring a backup older than a project's retention_months brings back events the policy has already expired; the next retention sweep drops them again, harmlessly. And restore.sh drops and recreates the public schema, which assumes the role Lyraflow connects with owns it — true of the stack this repository ships, and not necessarily true of a managed Postgres or a deployment where the application role is deliberately not an owner. The restore now checks this before it destroys anything and refuses with an explanation if the role cannot drop the schema, rather than failing partway through. To check for yourself:

SELECT nspowner::regrole FROM pg_namespace WHERE nspname = 'public';

Caddy will not read a forwarded header from a peer it has not been told to trust, and that refusal is the right default — any client can send X-Forwarded-For, so believing it unconditionally would let a visitor choose their own apparent address.

So behind Cloudflare or any other intermediary, the address Lyraflow sees is the intermediary's. Name the ranges you actually sit behind by dropping a file into docker/caddy/proxy.d/:

trusted_proxies 173.245.48.0/20 103.21.244.0/22

Those directives land inside the reverse_proxy block, which is why they go in proxy.d/ rather than tls.d/ — trusted_proxies is a sub-directive of the proxy, not of the site. That is also why static does not belong here: it names the module for Caddy's global servers { trusted_proxies static ... } option, one level up. Used inside reverse_proxy it is parsed as an IP address and caddy:2-alpine exits at boot.

The ranges are your CDN's published egress list and they change; Cloudflare publishes theirs at https://www.cloudflare.com/ips/. A stale list fails quietly rather than loudly: an unlisted range is simply untrusted, and visitors arriving through it record the CDN's address instead of their own.

Do not use 0.0.0.0/0. Trusting everyone is the same as having no check at all — it lets any client claim any IP by setting a header.

This is not cosmetic: req.ip keys the login rate limiter, so behind a CDN with no trusted range every visitor shares the CDN's address and therefore one bucket, until this is set.

Take a backup first. Migrations run automatically on boot and some of them cannot be undone, so this is the one step worth never skipping:

./backup.sh /var/backups/lyraflow

Then move the checkout to the release and pull its image. Every release tag publishes ghcr.io/lyraflow/lyraflow for amd64 and arm64:

git fetch --tags
git checkout vX.Y.Z
docker compose pull && docker compose up -d

Check out the tag before pulling, not after. The compose file, install.sh and the backup scripts come from the checkout, and a new image can expect a compose file that only the new tag has.

docker-compose.yml names the image ghcr.io/lyraflow/lyraflow:0, and :0 means the newest 0.x release. So a checkout left on an older tag still pulls the newest image, not the one that matches it. To hold an install at one version, name that version in .env as LYRAFLOW_IMAGE=ghcr.io/lyraflow/lyraflow:X.Y.Z. Every release is also published as X.Y, X and, for a final release, latest. Releases older than the first published image have no image; build those with docker compose build.

If you have modified your checkout, build it instead of pulling: docker compose build && docker compose up -d. The build writes the same local tag, so a later docker compose pull replaces your build with the published image.

The restart itself loses nothing. Accepted events are flushed before shutdown, migrations run on boot, and the ClickHouse identity dictionaries are rebuilt from Postgres every time rather than migrated, so they are never left stale.

If the new version will not start, check the logs for a schema-version error. Downgrading the image below the schema in your database is refused deliberately — the remedy is to put the newer image back, or restore the backup you took above.

Retention prunes old events, and the first version to enforce it acts on whatever retention_months each project already had. That column has existed since the first migration and nothing ever applied it, so the value being enforced may be one nobody has looked at in a long time. Check before you upgrade:

docker compose exec postgres psql -U lyraflow -d lyraflow \
  -c 'SELECT id, slug, retention_months FROM projects ORDER BY id'

Upgrading changes none of those values — the 13-month default applies only to projects created afterwards. If you would rather it did not start yet, add

      LYRAFLOW_RETENTION_ENABLED: "false"

to the environment: block of the lyraflow service in docker-compose.yml, before starting the new version. It has to go there and not in .env: Compose uses .env for substitution inside the compose file and passes the server only the variables that block names, so retention would run anyway. Nothing is dropped for age until you turn it back on.

See CONTRIBUTING.md. We'd love your help once the foundation is in place.

Security problems go to private vulnerability reporting or hello@lyraflow.app, never to the issue tracker — see SECURITY.md.
