Awex is a high-performance RL training-inference weight synchronization framework, designed to enable second-level parameter updates from training to inference in RL workflows. It minimizes iteration latency, ensuring rollout phases consistently use the latest model.

• Extreme Sync Speed: Trillion-parameter models fully synchronized within 10 seconds; validated on thousand-GPU clusters with industry-leading performance.
• Unified Weight Adaptation Layer: Automatically handles tensor format/layout differences across parallel strategies and engine frameworks, supporting any model architecture.
• Zero-Redundancy Transfer & In-Place Update: Transfers only necessary shards; supports in-place GPU memory updates on inference, avoiding costly allocation and copying.
• Multi-Mode Transfer Support: Support NCCL, RDMA, and shared memory transfer mode to leverage NVLink/NVSwitch/RDMA bandwidth and reduce long-tail latency.
• Heterogeneous Deployment Compatibility: Fully supports co-location and separation modes, make RL sync/async algorithms runs seamlessly.
• Extensibility: Easily extends to support new training and inference engines.

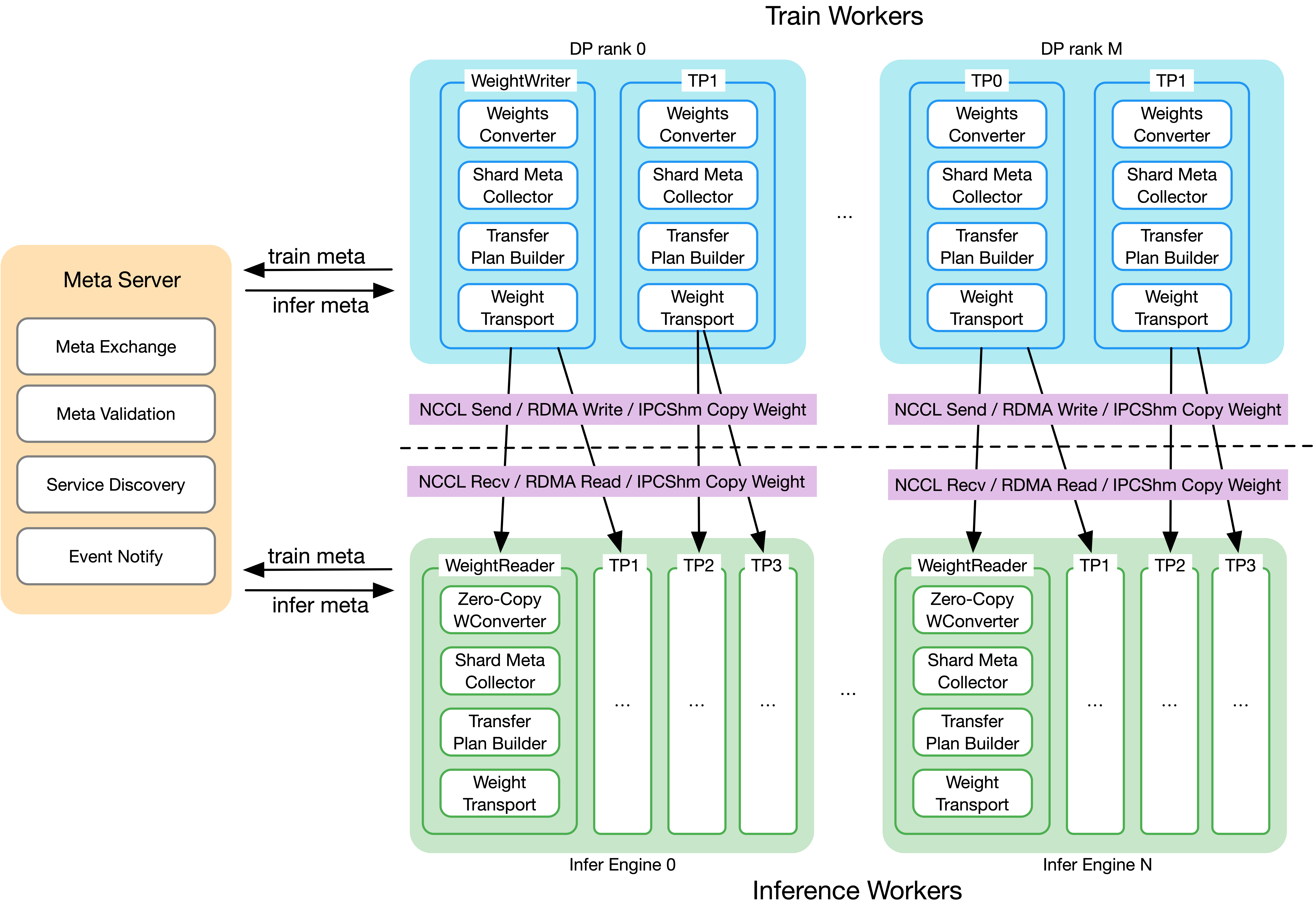

The Awex weight exchange framework consists primarily of three components:

• WeightWriter: Runs within each training process, responsible for metadata collection and reporting of weight shards for the current training process, weight convert, resharding transfer plan construction, weight transmission, and other functions;
• WeightReader: Runs on the control process of each inference instance, which starts a WorkerWeightsReader on each GPU managed by the inference instance, corresponding to the WeightWriter of the training process. Responsible for metadata collection and reporting of weight shards for each inference process, weight convert, resharding transfer plan construction, weight reception, and other functions;
• MetaServer: Job-level global server for service discovery and weight metadata exchange between training and inference engines, as well as event notification functions in co-located scenarios;

The core modules of weight exchange consist mainly of 6 parts:

• Unified training-inference weight convert: Responsible for converting weights from training and inference engines with different parallelism strategies and tensor layouts into a unified format for subsequent weight metadata calculation and weight transmission;
• Global weight metadata calculation and exchange: After converting training and inference weights into a unified format, collects all weight shard metadata from each worker and reports to Meta Server for subsequent weight transmission plan construction;
• P2P weight transmission execution plan: Training and inference engines obtain global weight shard metadata from all workers, then separately construct peer-to-peer deterministic transfer plan for sending and receiving;
• NCCL weight transmission: Uses NCCL's send/recv API for peer-to-peer weight transmission based on the constructed transmission plan;
• Mooncake weight transmission: Uses the same shard transfer plan with one-sided reads over RDMA or CPU-buffer TCP;
• AState weight transmission: Uses AState distributed tables to exchange weight shards through step-scoped put/get operations;

Awex also supports tensor-level validation of weights, comparing weights loaded through file system mode with those loaded through transmission mode at the tensor level for fine-grained comparison, ensuring the correctness of the transmission mode.

See more details in the architecture documentation.

For comprehensive introduction about awex, see the medium article

On thousand-GPU scale clusters, Awex using NCCL transmission can exchange 10B-scale model weights within one second, and exchange 1T-scale model weights within twenty seconds. Using RDMA for transmission, 1T model weight exchange time can be further reduced to six seconds.

The RDMA column reports the original RDMA backend's results. Mooncake TCP requires separate performance benchmarking.

• Python 3.10 or higher
• PyTorch 2.0.0 or higher, installed with the CUDA/NPU support required by your runtime
• A training or inference framework installed for the role being used (Megatron, SGLang or vLLM). All workers using a framework must use the same version.

Install awex using pip:

pip install awex

The core package declares its Python runtime dependencies. Install a suitable PyTorch build first to select your device runtime. Backend frameworks are separate: training users can install awex[mcore], and Mooncake users awex[mooncake]. Inference imports do not require Megatron. Match backend versions to your deployed framework stack; AWEX does not support mixed framework versions within a job.

Clone the repository and install in development mode:

git clone git@github.com:inclusionAI/awex.git
cd awex
pip install -e .

For development with additional tools:

pip install -e ".[dev]"

Install the optional Mooncake Transfer Engine on every training and inference worker:

pip install -e ".[mooncake]"

Set comm_backend="mooncake" in both the training configuration and InferenceConfig, with the same AWEX meta_server_addr. Existing model conversion and shard planning also apply to this backend. No additional distributed process group or external Mooncake metadata server is needed: AWEX exchanges buffer addresses and completion notifications, while Mooncake transfers the tensor data.

Configure each worker process through these environment variables:

The backend supports CPU and CUDA workers. RDMA requires a compatible Mooncake build, network configuration, and GPU memory registration support for CUDA buffers. TCP stages through CPU memory. With enable_colocate_mode=True, training snapshots also use CPU memory so training weights can be offloaded before inference resumes. The existing engine offload/resume hooks must be implemented for colocated use.

Training keeps a contiguous snapshot of each distinct outgoing slice until all its readers acknowledge completion. Allow memory for these snapshots (on CPU for TCP or colocated updates, otherwise on the source device), in addition to converted weights. Inference stages one slice at a time and copies it into the target view, including non-contiguous layouts. All participating ranks must execute updates in the same order with matching step IDs.

A failed exchange aborts further updates. Published buffers remain registered on timeouts or transfer errors because remote access may still be in flight; restart the job with a fresh AWEX metadata server instead of retrying in the same workers.

The optional native TCP smoke test runs when Mooncake is installed:

pytest awex/tests/test_mooncake_transfer.py -k native_tcp_loopback

Awex supports Python 3.10 and above. Install the core package and the backend frameworks required for each role as described above.

pip install awex

Megatron training engine weight sending example:

Start one metadata server for the job in a dedicated process:

python -m awex.meta.meta_server

Set AWEX_META_SERVER_ADDR to the reachable ip:port printed by that process in every training and inference worker. Keep the server alive throughout the job. The snippets below assume the training process group and Megatron model are already initialized. Run training writes and inference updates concurrently with matching step IDs, after draining inference requests.

import os
from awex.engine.mcore import MegatronEngine

# init
awex_config = {
    "comm_backend": "nccl",
    "meta_server_addr": os.environ["AWEX_META_SERVER_ADDR"],
}
train_engine = MegatronEngine(awex_config, hf_config, mcore_model)
train_engine.initialize()

# write weights
train_engine.set_global_step(1)
train_engine.write_weights()

SGLang inference engine weight update example:

import os
from awex import InferenceConfig
from awex.engine.sglang import SGLangEngine, install_sglang_worker_hooks
import sglang as sgl

install_sglang_worker_hooks()  # Call before creating the engine, on every node.
sgl_engine = sgl.Engine(model_path="xxx", tp_size=2, random_seed=42)
awex_config = InferenceConfig.from_sgl_engine(
    sgl_engine,
    comm_backend="nccl",
    meta_server_addr=os.environ["AWEX_META_SERVER_ADDR"],
)
inference_engine = SGLangEngine(awex_config, sgl_engine)
inference_engine.initialize()

# update weights
inference_engine.set_global_step(1)
inference_engine.update_weights()

AWEX installs its own scheduler subprocess entry point; no SGLang source changes are required. sgl_engine.execute_task_in_model_worker(fn, **kwargs) runs the callback on every model rank and returns results in DP/PP/TP rank order (ordinary DP replicas return only DP0's results). Callbacks receive model, model_runner, and model_context, including the scheduler and rank information. Async callers can await sgl_engine.async_execute_task_in_model_worker(fn, **kwargs).

Drain generation requests and stop submitting new requests while running tasks or updating weights. The hooks support the Python Engine API with one tokenizer and the native multiprocessing launcher. Callbacks operate on the target model; updating separate speculative draft models is outside this interface.

These scripts compare weight formats across Megatron, vLLM, and SGLang by converting all parameters into HF-style names and then diffing tensors.

Intended use (for new model bring‑up):

• These scripts primarily validate Awex converter coverage. They help answer: “Does the current converter support this new model, or do we need mapping fixes?”
• If your target stack is Megatron → vLLM, usually running verify_weight_conversion.py + compare_megatron_vllm_weights.py is sufficient.
• Use compare_vllm_sglang_weights.py only if you also care about vLLM ↔ SGLang parity (or you’re adding SGLang support for a new model).

GPU/NPU notes

• All compare/verify scripts accept --device-backend (auto/cuda/npu/cpu), but they are CUDA-only today because vLLM/SGLang backends require CUDA. Use --device-backend cuda explicitly if auto-detection picks the wrong device.
• For NPU, use these scripts on CUDA to validate converter coverage, then validate the runtime weight update path on NPU with the integration tests.

Awex normalizes parameter names from different backends into a single canonical HF-style naming scheme so Megatron, vLLM, and SGLang can be compared directly. There are three “namespaces” involved:

1. Megatron (mcore) names – e.g. decoder.layers.0.self_attention.linear_qkv.weight
2. vLLM/SGLang names – e.g. model.layers.0.self_attn.qkv_proj.weight
3. Awex canonical HF-style names – e.g. model.layers.0.attention.query_key_value_proj.weight

Example for QKV conversion:

• Megatron self_attention.linear_qkv.weight
  → (mcore converter) self_attn.qkv_proj.weight
  → (normalize) attention.query_key_value_proj.weight
• vLLM self_attn.qkv_proj.weight
  → (normalize) attention.query_key_value_proj.weight

So self_attn.qkv_proj is not the canonical HF name; it is a vLLM name (and also an intermediate name in the Megatron converter). The canonical name used for comparison is attention.query_key_value_proj.

Qwen3 note: HF checkpoints store unfused q_proj/k_proj/v_proj weights. The verifier treats those as valid matches for the canonical query_key_value_proj.

• Compare vLLM vs SGLang HF-loaded weights:
  • Script: awex/tests/experimental/compare_vllm_sglang_weights.py
  • Example:

    python awex/tests/experimental/compare_vllm_sglang_weights.py \
      --model-path /path/to/hf/model \
      --out-dir /tmp/vllm_sglang_compare \
      --device-backend cuda \
      --trust-remote-code \
      --max-layers 4 \
      --include-non-layer

• Compare Megatron vs vLLM (via converters to HF naming):
  • Script: awex/tests/experimental/compare_megatron_vllm_weights.py
  • Note: We default to mbridge for all models. Use --no-mbridge to force the Megatron convert.py path (Qwen3 will still fall back to mbridge).
  • Example:

    python awex/tests/experimental/compare_megatron_vllm_weights.py \
      --model-path /path/to/hf/model \
      --out-dir /tmp/megatron_vllm_compare \
      --device-backend cuda \
      --trust-remote-code \
      --max-layers 4 \
      --include-non-layer

  • Multi-GPU (torchrun) variant:
    • Script: awex/tests/experimental/compare_megatron_vllm_weights_multi.py
    • Example:

      torchrun --nproc_per_node=2 awex/tests/experimental/compare_megatron_vllm_weights_multi.py \
        --stage megatron_dump \
        --model-path /path/to/hf/model \
        --out-dir /tmp/megatron_vllm_compare \
        --device-backend cuda \
        --train-tp-size 2 \
        --train-pp-size 1 \
        --train-ep-size 1 \
        --train-cuda-devices 0,1
      python awex/tests/experimental/compare_megatron_vllm_weights_multi.py \
        --stage vllm_compare \
        --model-path /path/to/hf/model \
        --out-dir /tmp/megatron_vllm_compare

Both scripts produce a JSON report with missing keys, shape/dtype mismatches, and value diffs. You can limit comparison to the first N layers with --max-layers N. For large models, expect heavy disk usage because each tensor is saved to disk for comparison.

• Verify HF weight conversion coverage:
  • Script: awex/tests/experimental/verify_weight_conversion.py
  • Note: Qwen3 HF checkpoints store unfused q/k/v (and o_proj) weights, so the verifier treats those as valid matches for vLLM qkv/o_proj names.
  • Example:

    python awex/tests/experimental/verify_weight_conversion.py \
      --model-path /path/to/hf/model \
      --device-backend cuda

• Megatron → vLLM weight exchange (requires 2 GPUs and Awex vLLM plugin):
  • Script: awex/tests/weights_exchange_vllm_it.py
  • Example:

    CUDA_VISIBLE_DEVICES=0,1 python awex/tests/weights_exchange_vllm_it.py \
      --comm_backend nccl \
      --model-path /path/to/hf/model \
      --device-backend cuda \
      --validate

  • Optional: add --validate to run a consistency check and print "weights are consistent" logs (supported for NCCL or file backend).
  • --model-path defaults to vllm_inference_config["model_path"] inside the script. Set it explicitly for your local model directory.
  • NPU (experimental, requires vllm-ascend + MindSpeed + Megatron):

    ASCEND_RT_VISIBLE_DEVICES=0,1 AWEX_USE_MINDSPEED=1 \
      python awex/tests/weights_exchange_vllm_it.py \
      --comm_backend hccl \
      --device-backend npu

  • Multi-process (torchrun) integration is currently excluded because startup is not stable in our test environment. Use the single-process script above as the baseline validation path.

Awex includes experimental NPU support for the weight-exchange runtime path (training ↔ inference). This path is intended for MindSpeed + Megatron on Ascend and vllm-ascend on the inference side.

• Device backend: set AWEX_DEVICE_TYPE=npu to switch the internal device helpers to NPU semantics. For communication, use comm_backend=hccl and weights_exchange_ipc_backend=cpu (CUDA IPC is not supported on NPU).
• MindSpeed patching: set AWEX_USE_MINDSPEED=1 before importing megatron / megatron.core so MindSpeed can patch Megatron internals.
• Inference: requires vllm-ascend with the Awex plugin enabled. This integration has been validated in our environment.
• Memory debug logging: set AWEX_MEM_DEBUG=1 to emit additional memory diagnostics during weight conversion and NCCL send-op construction. This is intended for debugging memory pressure or unexpected tensor retention and should remain disabled in normal runs.

What is NOT NPU-ready yet

• compare_megatron_vllm_weights.py, verify_weight_conversion.py, and compare_vllm_sglang_weights.py are CUDA-only (they rely on vLLM CUDA kernels and torch.cuda).
• If you target NPU, use these scripts on CUDA to validate converter coverage, then validate the runtime weight update path on NPU.

Awex is an open-source project. We welcome all forms of contributions:

1. Report Issues: Found a bug? Open an issue
2. Suggest Features: Have an idea? Start a discussion
3. Improve Docs: Documentation improvements are always welcome
4. Submit Code: See our Contributing Guide
5. Agent Workflows: Read the Repository Guidelines for structure, testing, and PR expectations.

git clone https://github.com/inclusionAI/awex.git
cd awex

# Install in development mode with dev dependencies
pip install -e ".[dev]"

# Run tests
pytest -v -s .

# Run specific test
pytest -v -s awex/tests/test_meta_resolver.py

# Run heavy GPU integration tests (requires Megatron-LM and 2 GPUs)
CUDA_VISIBLE_DEVICES=0,1 pytest -v -s awex/tests/test_weights_writer.py

# Format code
ruff format .
ruff check --fix .

See DEVELOPMENT.md for detailed build and CPU/integration test instructions.

Apache License 2.0. See LICENSE for details.
