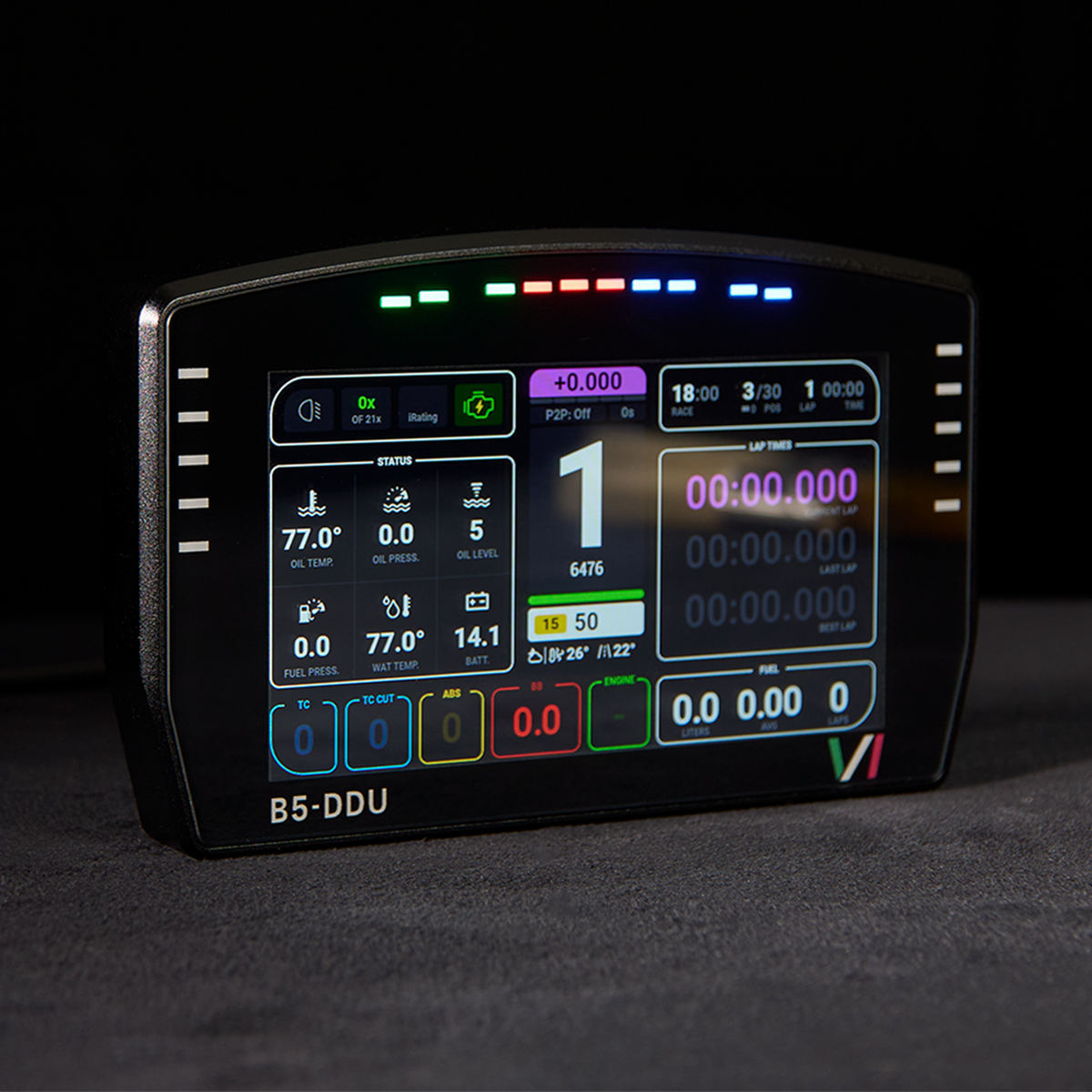

Front view of B5-DDU DIY dashboard, screen and LEDs lit

The DIY workshop

B5-DDU V2 Project

Check it out

Free project files on MakerWorld.

Unlock your DIY potential with the B5-DDU Project, designed for sim racing enthusiasts who want to build their own dashboard. This comprehensive project includes everything you need to create a top-notch Simhub-compatible dashboard.

EXTRA:

Simhub dashboard template on the photos by lovelysimracing checkout his discord too.

Comprehensive Guide: Includes detailed instructions on where to buy components, how to assemble them, and how to flash the software. All necessary files for production, including DXF/AI files for the front plates and Gerber files for PCB ordering, are provided.

Feel free to contact us for any help or suggestions

Facebook
Instagram
Discord

For personal use only - Not for resale

After purchase, you will receive an email with all the files. This is a convenient way to support our projects and personalize your DIY projects, as most of the files are already available for free. Your contribution helps us continue our work in bringing you quality projects. Feel free to contact us for any help or suggestions.

Build resources

Bill of materials Assembly guide

MAKE IT YOURS

Choose your parts.

Already have something? Leave it out.
Check the bill of materials for your complete build.

Velocitas Imperium B5 DDU sim racing dashboard display unit PCB

B5-DDU V2 PCB

€58,00

Qty

Velocitas Imperium B5 DDU CNC-machined sim racing dashboard enclosure

B5-DDU V2 CNC Shell

€56,00

Qty

Velocitas Imperium B5 DDU sim racing dashboard glass display panel

B5-DDU Glass

€23,00

Qty

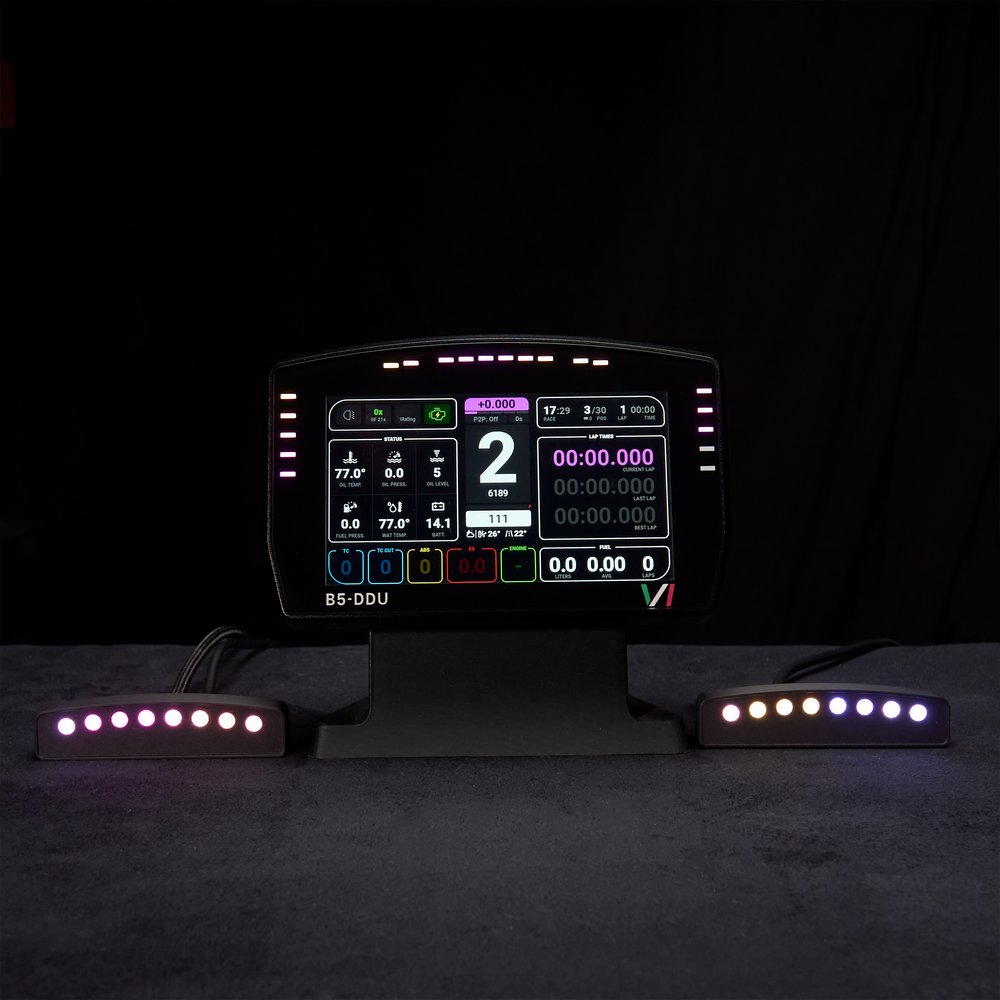

Velocitas Imperium Brows sim racing PCB with RGB LED indicators and button matrix

8 LEDs Module Brow PCB

€22,00

Qty

8 LEDs Module Brow Plexi

€22,00

Qty

Velocitas Imperium sim racing DDU mounting bracket for dashboard display unit installation

Universal Mount for VI DDUs

€15,00

Qty

Velocitas Imperium B5 DDU sim racing dashboard Pro Kit

B5-DDU Pro Kit(DIY bundle)

€159,00

Qty

Know your build

Project details

Specifications

These specs reflect the intended result of the project when built according to the included documentation and BOM.

5" VoCore screen
20 programmable RBG LEDs (Simhub compatible)
Glass front panel design included in files
USB Type-C with integrated USB hub for single cable setup
Approx. 30 minutes build
Magnetic mount compatible with most of the DDs in the market(Simucube, simagic, VRS, OSW and Moza R9 V3)
Port expander for additional telemetry LED devices (e.g., brows or flags)
Dimensions : 149mm (W) × 93mm (H) × 18mm (D)

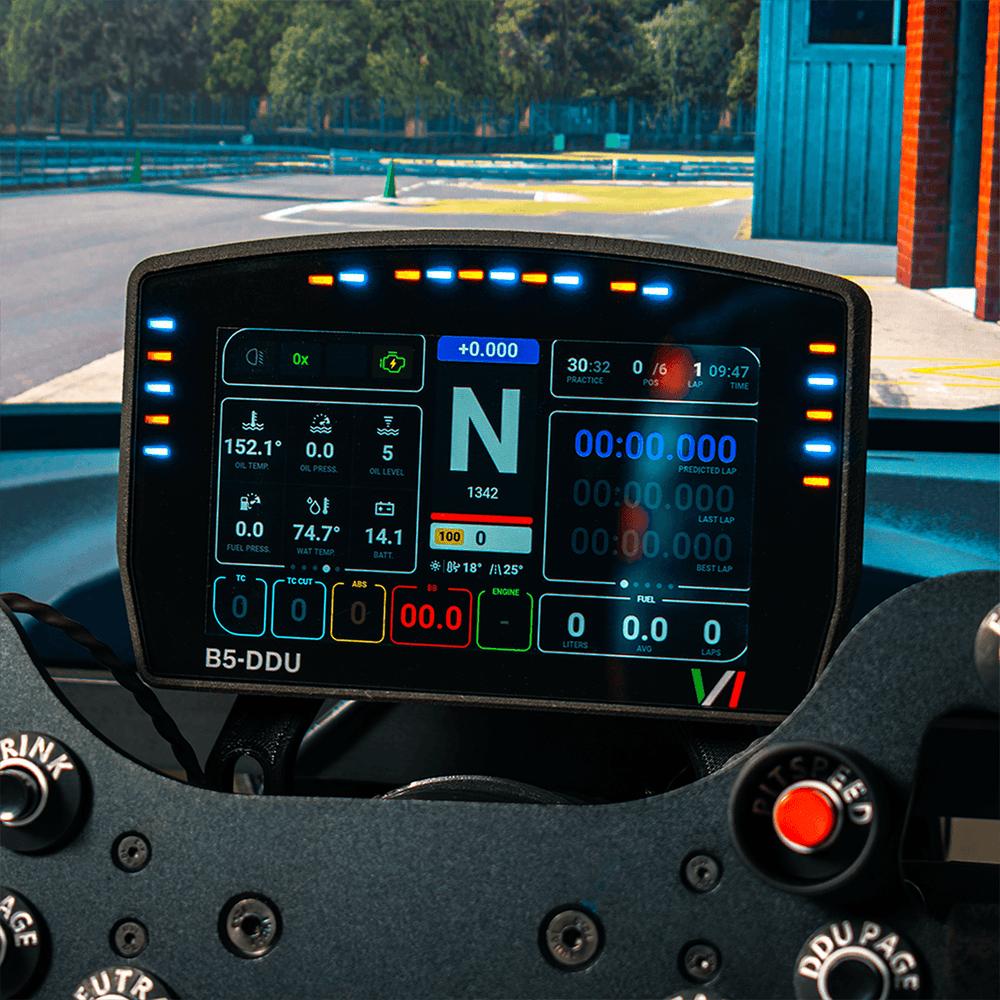

It fits very well on most rigs, to get the unit very close to the monitor a 90 degree adapter is suggested.

Features

• Compact 5-inch dashboard designed for sim racing rigs
• 20 individually programmable RGB telemetry LEDs
• Full compatibility with SimHub
• Support for telemetry alerts including flags, traction control and ABS activation
• Integrated USB hub for a clean single-cable connection
• USB Type-C expansion port for LED brows and flag displays
• Touch-compatible VoCore display
• Compatible with SimHub, Z1 Dashboard and JRT
• Magnetic mounting system for quick installation and removal
• Front glass, 3D-printing and CNC production options

What's included

STL Files for 3D Printed Parts
Extra files for Glass and UV print silkscreen production
STEP Files for CNC production
18-Page Manual
BOM (Bill of materials)
Support on our own Discord

Before you build

The VoCore screen and physical components are not included with the project files. Use the Bill of Materials to source the required components, or purchase selected parts directly from Velocitas Imperium.

The V2 digital package does not include the PCB Gerber files.

If you already own parts for the V1 version, you can still complete the build using the files inside the V1 folder.

To upgrade a V1 build to V2, you will need a new PCB, main body and internal chassis. The remaining components can be reused.

The B5-DDU fits well on most sim racing rigs. If you want to position it very close to your monitor, a 90-degree USB adapter is recommended.

The project files are intended for personal use only and may not be redistributed, resold or used commercially.
