Python API

SciQLop.user_api is the public Python API of SciQLop. It is what you use from the embedded Jupyter notebooks, from plugins, and what the in-app agents use too. With it you create plot panels, plot products, arrays or Python functions, define your own products, edit catalogs and annotate plots.

These pages are both a guide and a reference. They document SciQLop v0.13.1. Features that only exist on the development branch are marked with a “Next release” box.

This page covers the basics: where your code runs, the imports, product paths and time ranges. The rest is split by topic:

• Panels: create, find and close panels; time, navigation and export.
• Plotting: panel.plot and its variants, plot and graph types, waterfalls, histograms, the fluent builder.
• Plots and graphs: axes, scales, legends, messages over a plot, graph colours.
• Virtual products and knobs: your own products, their inputs and tunable parameters.
• Analysis tools: annotation layers, catalogs, graphic primitives and DSP in short, each pointing to its user guide.
• Magics and tracing: notebook magics, tracing and the other modules.
• Threading and common errors: what runs where, and the errors you are likely to meet.
• Next release API changes: what changes on the development branch.

Some topics have a tutorial or a user guide, which these pages link to instead of repeating: Basic Plotting Workflow, virtual products, plot templates, Catalogs, Annotation layers, DSP toolbox, 2D histograms and Graphic primitives.

Stable or experimental?

Everything under SciQLop.user_api is public. Some functions are marked experimental in the code: their signature may still change. They are flagged “(experimental)” in the tables below. Anything outside SciQLop.user_api (SciQLop.components, SciQLopPlots, any _impl attribute) is internal and can change at any release.

Getting started

Where the code runs

Open a notebook from the welcome page. Its kernel runs inside SciQLop, so your cells drive the application directly. Nothing is imported for you, except a few variables and the magics.

The kernel preloads these names:

Name	What it is
app	The SciQLop application object, wrapped for safe use from a cell.
main_window	The main window, wrapped the same way.
workspace	The active workspace.
plugins	The loaded plugins.
background_run	await background_run(f, *args) runs f on a worker thread and returns its result.

It also registers the %%vp, %%layer, %plot, %timerange, %install, %workspace and %job magics. See Magics.

Imports cheat sheet

from SciQLop.user_api import TimeRange                     # also: dsp, tracing, themes
from SciQLop.user_api.plot import (
    create_plot_panel, plot_panel, PlotPanel,              # panels
    TimeSeriesPlot, XYPlot, ProjectionPlot,                # plots
    PlotType, ScaleType, Histogram2D, Waterfall,           # types
    Text, CurvedLine, Ellipse, Pixmap, HorizontalLine,     # graphic primitives
    VerticalLine, StraightLine, RectangularSpan, HorizontalSpan, LineTermination,
    OverlayLevel, OverlaySizeMode, OverlayPosition,        # in-plot messages
    fluent,                                                # chainable panel builder
)
from SciQLop.user_api.plot.enums import (GraphType, GraphLineStyle, BinStrategy,
                                         AxisType, CoordinateSystem, Orientation)
from SciQLop.user_api.virtual_products import create_virtual_product, VirtualProductType, Depends
from SciQLop.user_api.knobs import Knob
from SciQLop.user_api.layers import register_layer, Marker, Span, HLine
from SciQLop.user_api.catalogs import catalogs
from SciQLop.user_api import dsp

Where the enums live

GraphType, GraphLineStyle, BinStrategy, AxisType, CoordinateSystem and Orientation are not re-exported by SciQLop.user_api.plot. Import them from SciQLop.user_api.plot.enums.

Next release: they can be imported from SciQLop.user_api.plot too.

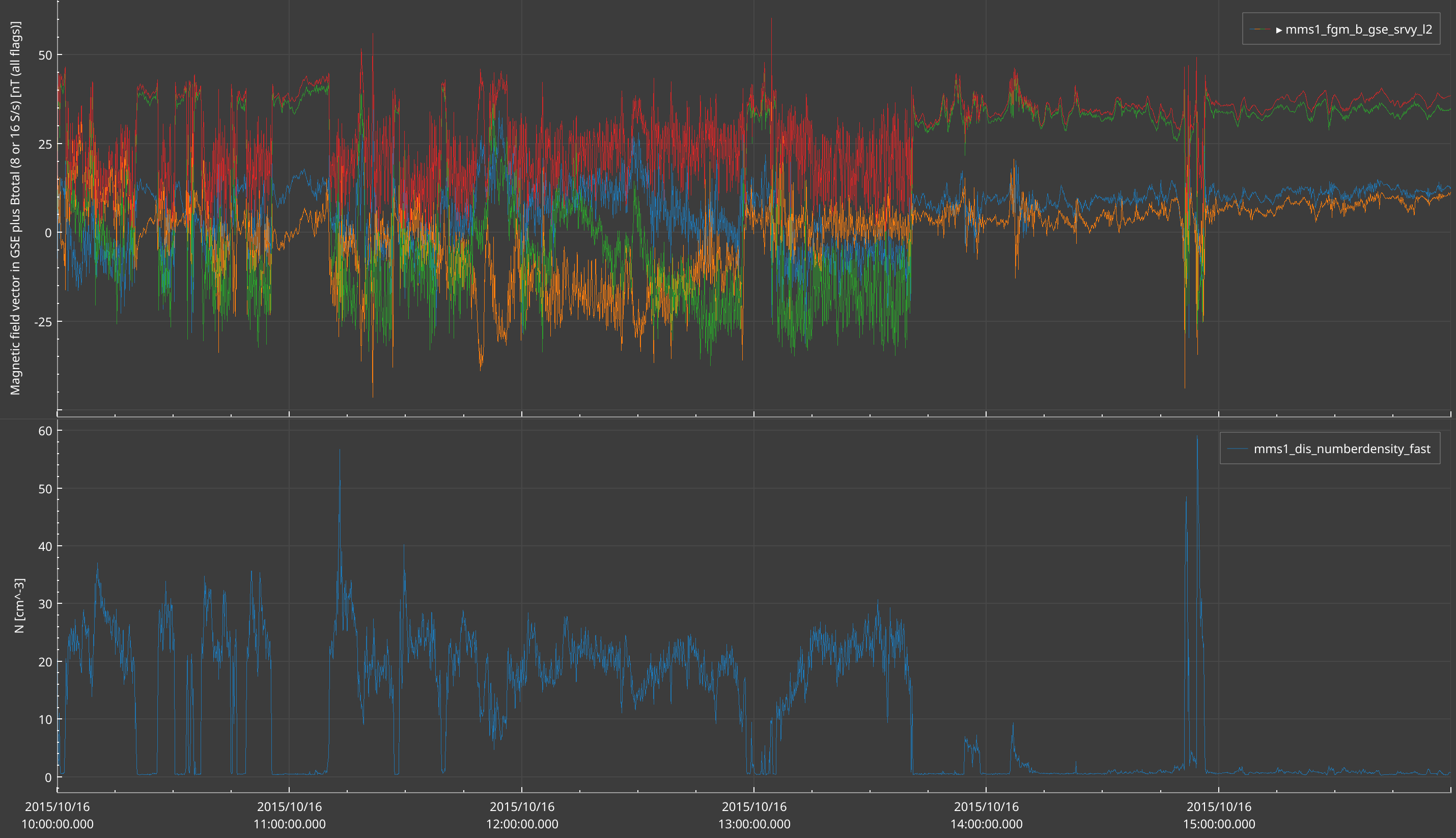

A first panel

from SciQLop.user_api import TimeRange
from SciQLop.user_api.plot import create_plot_panel

FGM = "speasy//cda//MMS//MMS1//FGM//MMS1_FGM_SRVY_L2//mms1_fgm_b_gse_srvy_l2"
DENSITY = "speasy//cda//MMS//MMS1//DIS//MMS1_FPI_FAST_L2_DIS_MOMS//mms1_dis_numberdensity_fast"

p = create_plot_panel()
p.time_range = TimeRange("2015-10-16T10:00", "2015-10-16T16:00")
b_plot, b_graph = p.plot(FGM)       # new plot at the bottom of the panel
n_plot, n_graph = p.plot(DENSITY)   # another new plot

Each plot call returns two handles: the plot (one set of axes) and the graph drawn in it. Keep them to change the plot later.

Product paths

A product path is the path of a product in the Products tree, from the provider down to the leaf.

• Segments are joined with //: "speasy//cda//MMS//MMS1//FGM//MMS1_FGM_SRVY_L2//mms1_fgm_b_gse_srvy_l2".
• // is needed because a product name may itself contain a / (AMDA has some).
• A path with no // at all is split on /. So "speasy/cda/MMS/MMS1/..." also works, as long as no name contains a /.
• The segments are the display names of the tree, not Speasy ids.
• A list of segments works too: ["speasy", "cda", "MMS", ...].

The easy way to get a path: drag a product from the Products tree and drop it into a notebook cell.

Speasy paths are different

Inside your own callbacks you call Speasy directly, and Speasy has its own path format: spz.get_data("cda/MMS1_FGM_SRVY_L2/mms1_fgm_b_gse_srvy_l2", start, stop). Don’t mix the two.

Time ranges

TimeRange(start, stop) is the type every time range uses.

You pass	It means
"2015-10-16T10:00"	A date string, parsed as UTC. Garbage raises ValueError.
datetime(2015, 10, 16, 10)	A datetime, taken as UTC.
1444989600.0	Seconds since 1970-01-01 UTC.

from datetime import datetime
from SciQLop.user_api import TimeRange

tr = TimeRange("2015-10-16T10:00", datetime(2015, 10, 16, 16))
tr.start(), tr.stop()          # epoch seconds, as methods
p.time_range = tr
p.time_range = ("2015-10-16T10:00", "2015-10-16T16:00")   # a (start, stop) pair works too

A single string is not a range. p.time_range = "2015-10-16" raises TypeError.

numpy.datetime64 bounds

TimeRange converts strings and datetime objects itself. Other values go straight to the C++ range type. Convert numpy.datetime64 values to epoch seconds first: t.astype("datetime64[ns]").astype("int64") / 1e9.
