How to add hatches and patterns in Matplotlib

Libraries

For creating this chart, we will need to load the following libraries:

pandas for data manipulation
matplotlib for creatin the chart
numpy for smoothing the chart

import pandas as pd
import numpy as np
import matplotlib.pyplot as plt

Hatch in barplots

Hatchs, or patterns, are a way to fill a chart with a pattern instead of a simple color. It can be useful when you want to print the chart in black and white, or when you want to add a bit of style to your chart.

Matplotlib offers a variety of patterns: /, \\, |, -, +, x, o, O, ., *

In order to use a different hatch for each bar, you can use the hatch parameter of the bar() function. It should be a list of the same length as the number of bars in your chart.

Here is how to use it with the bar() function:

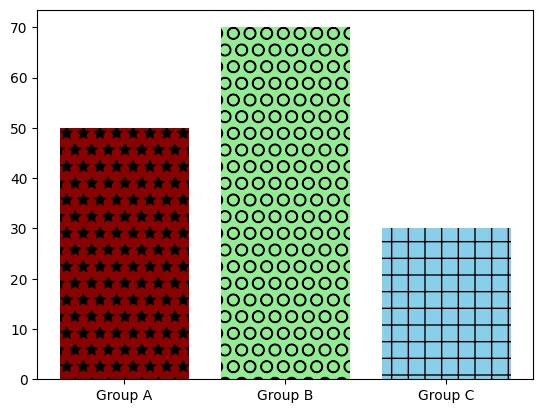

How to add hatches and patterns in Matplotlib: Hatch in barplots

plt.bar(
   height=[50, 70, 30],
   x=['Group A', 'Group B', 'Group C'],
   hatch=['*', 'O', '+'],
   color=['darkred', 'lightgreen', 'skyblue']
)
plt.show()

Hatch in area chart

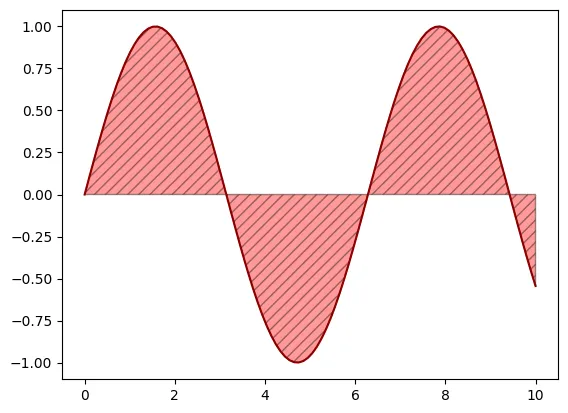

How to add hatches and patterns in Matplotlib: Hatch in area chart

x = np.linspace(0, 10, 100)
y = np.sin(x)

plt.plot(
   x, y,
   color='darkred',
)
plt.fill_between(
   x, y,
   color='red',
   hatch='///',
   alpha=0.4,
   edgecolor='black'
)
plt.show()

Hatch in histogram

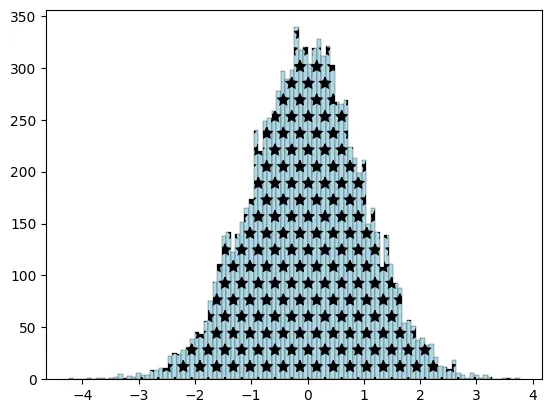

How to add hatches and patterns in Matplotlib: Hatch in histogram

x = np.random.normal(0, 1, 10000)

plt.hist(
   x,
   bins=100,
   color='lightblue',
   edgecolor='black',
   hatch='*',
   linewidth=.2
)
plt.show()

Hatch in boxplots

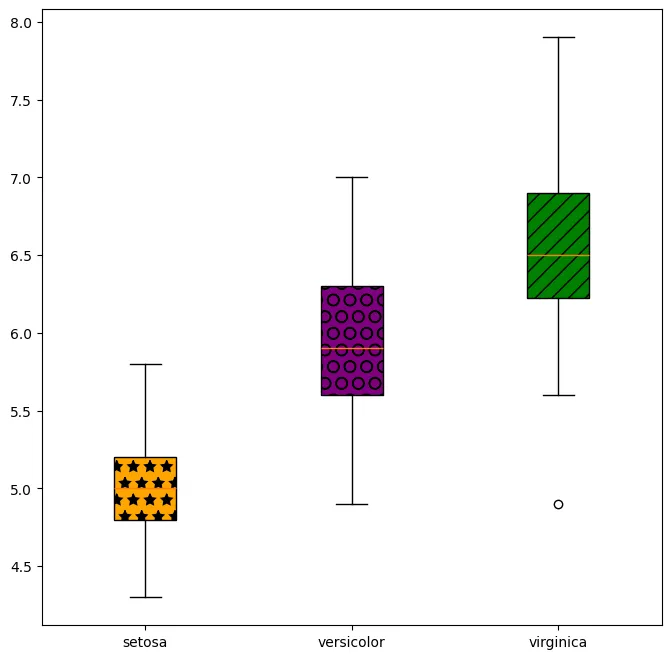

How to add hatches and patterns in Matplotlib: Hatch in boxplots

url = 'https://raw.githubusercontent.com/holtzy/The-Python-Graph-Gallery/master/static/data/iris.csv'
df = pd.read_csv(url)
grouped = df.groupby('species')['sepal_length']

# Init a figure and axes
fig, ax = plt.subplots(figsize=(8, 8))

# Create the plot with different colors for each group
boxplot = ax.boxplot(
    x=[group.values for name, group in grouped],
    labels=grouped.groups.keys(),
    patch_artist=True,
)

# Define colors for each group
colors = ['orange', 'purple', 'green']
hatchs = ['*', 'O', '//']

# Assign colors to each box in the boxplot
for box, color, hatch in zip(boxplot['boxes'], colors, hatchs):
    box.set_facecolor(color)
    box.set(hatch=hatch)

# Display it
plt.show()

Going further

This article explains how to add patterns to charts in matplotlib.
